Natec Helix, Closed, Black

Category - Root/Electronics/PC parts/Computer casings
Chassis type - Micro Tower
Chassis type - Mini Tower
Code - NPC-2038
Color - Black
Cooling - Front fans diameters supported - 120
Cooling - Number of front fans supported (max) - 1
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of side fans supported (max) - 1
Cooling - Rear fans diameters supported - 80
Cooling - Rear fans installed - 1x 80 mm
Cooling - Side fans diameters supported - 120 mm
Description - Natec Helix small PC case, great possibilities

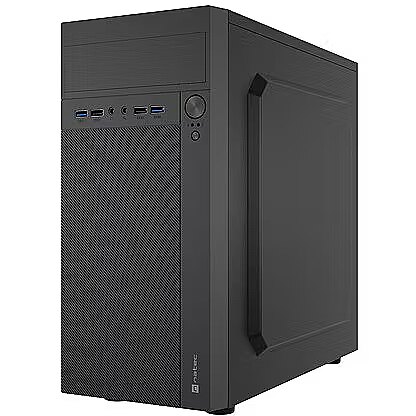

Meet Natec Helix - a micro tower chassis designed for a thoughtful installation of components, including microATX and Mini-ITX motherboards. Front panel equipped with 4 USB ports improves everyday use. Optimal temperatures? Numerous ventilation holes and 80 mm, exhaust fan located on the back of the case will help you ensure them. This is Natec Helix
MAIN FEATURES
Suitable for Home and Office
Are you looking for a functional base for your components? Look no further than Natec Helix - a universal case that boasts a simple, yet rigid construction made of metal and ABS, providing optimal protection for your computer's internal components. Its low-key appearance makes it a perfect fit not only for the office or home settings but also wherever a classic solution is needed.
Easy access to USB ports

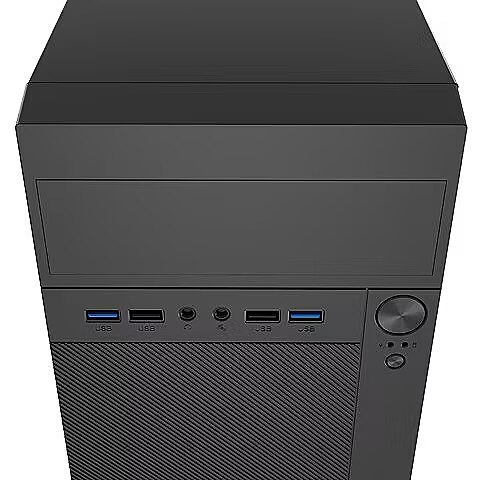

Do you need to quickly connect necessary accessories like a pen drive or external drive? Front panel of Natec Helix offers 4 USB Type-A ports (2 × USB 3.0 and 2 × USB 2.0). In addition to peripherals, you can easily connect both headphones and a microphone with the two mini jacks available on the front panel.
Choose your favourite components

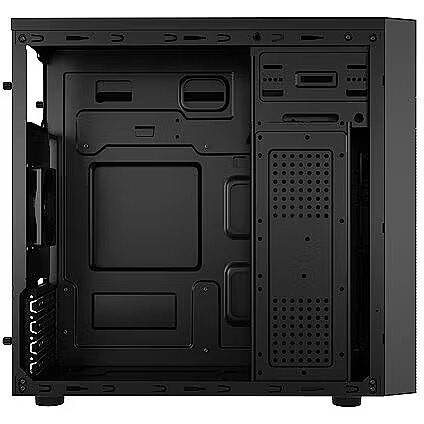

Do you value storage options? Natec Helix can house up to six drives! 3 slots for 2.5" SSDs, 1 slot for a 3.5" HDD and 2 hybrid slots for 2.5"/3.5" drives. You can also find the bay for other 5.25" device like DVD or Blue-ray drive. In Natec Helix you can mount a graphics card with a maximum length of 330 mm as well as a tower CPU cooler (up to 148 mm height). What you get is a wide array of configuration options at an affordable price.
ADDITIONAL FEATURES
Compatible with microATX and Mini-ITX motherboards
Select the right motherboard and CPU not being bothered about issues with their installation. Natec Helix is compatible with microATX and Mini-ITX standards while having small external dimensions. A large number of slots for hard drives and reasonable space for mounting GPU allows to build efficient PC both for work and entertainment.
Keeping it cool
Optimal airflow is an important aspect which we have taken into consideration in Natec Helix Pc case. Among other solutions the pre-installed, located on the back of the case, 80 mm fan is responsible for exhausting hot air. You can also install two additional 120 mm fans on the front and side of the case. Fast and simple.
Design - Backlight - No
Design - Certification - CE, RoHS
Design - Form factor - Micro Tower
Design - Material - ABS
Design - Material - Steel
Design - Maximum CPU cooler height - 14.8 cm
Design - Maximum graphics card length - 33 cm
Design - Number of 2.5" bays - 5
Design - Number of 3.5" bays - 3
Design - Number of 5.25" bays - 1
Design - Number of expansion slots - 4
Design - Product colour - Black
Design - Suitable for - Office
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Type - PC
Design > Colour of product - Black
Design > Form factor - Mini Tower
Design > Maximum CPU cooler height - 14.8 cm
Design > Maximum PSU length - 18 cm
dimensionalWeight - 7224
dimension depth - 210 mm
dimension height - 430 mm
Dimensions - 390 x 180 x 366mm
dimension weight - 2839 g
dimension width - 420 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 1
Drive bays 5.25'' extern. - 1
Drive bays 5.25'' intern. - 0
EAN - 5901969439076
ean - 5901969439076
Eans - 5901969439076
Fan - 8 cm
Features > Compatibility - Mini-ITX, Micro-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 2.0
Front panel connectors - 2 x USB 3.0
guarantee - 24
guarantee_type - normal
Link - https://natec-zone.com/product/helix-micro-tower
Name - Natec Helix
Name - Natec | PC Case | Helix Matx | Black | Mini Tower | Power supply included No | ATX
name - PC Case Helix 2x USB 2.0, 2x USB 3.0
No. of drive bays - 6
Other features -
Other features > Dimensions (WxDxH) - 180x 390 x 366 mm
Other features > Drive bays - 5x2.5"; 3x3.5"; 1x5.25 "
Other features > Expansion slots - 4
Other features > Power supply type - ATX
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 390.00 mm
Package features > Gross height (mm) - 366.00 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 34 pc(s)
Package features > Paper/Pasteboard - 480.00 g
Package features > PET - 13 g
Package features > Plastic (No PET) - 120.00 g
Package features > Tare other - 12 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Manual - Yes
PDF - https://www.blobs.lt/products/3/7/5/8/9/3/a8d60f4943812cdca8cf8ed618d03c2f/original.pdf
Ports & interfaces - Audio output - Y
Ports & interfaces - Card reader integrated - No
Ports & interfaces - Number of USB 3.0 ports - 2
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces > Interface - USB 3.0 Typ-A x2, USB 2.0 Typ-A x2, Mini Jack x2
Power supply - Failure
Power supply > Power supply included - No
producer - Natec
Producer - Natec
producerCode - NPC-2038
ProducerCode - NPC-2038
Producer product family - PC Case
Producer product name - Helix Matx
productName - NATEC HELIX MICRO TOWER ENCLOSURE
productSize - Normal
ShortDescription - Mini Tower | Micro Tower | mATX | czarna | bez zasilacza | 2 x USB 2.0, 2 x USB 3.0 | 390mm x 180mm x 366mm | 1 x wen 80mm |
sizeX - 430
sizeY - 400
sizeZ - 210
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
Technical details > Gross weight - 3.30 kg
Technical details > Net weight - 2.70 kg
Technical details > Other features - Meet Natec Helix - a micro tower chassis designed for a thoughtful installation of components, including microATX and Mini-ITX motherboards. Front panel equipped with 4 USB ports improves everyday use. Optimal temperatures? Numerous ventilation holes and 80 mm, exhaust fan located on the back of the case will help you ensure them
Technical details > Producer - Natec
vendpn - NPC-2038
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
Weight - 2.7 kg
weight - 3300
Weight & dimensions - Depth - 390 mm
Weight & dimensions - Height - 366 mm
Weight & dimensions - Weight - 2.7 kg
Weight & dimensions - Width - 180 mm
