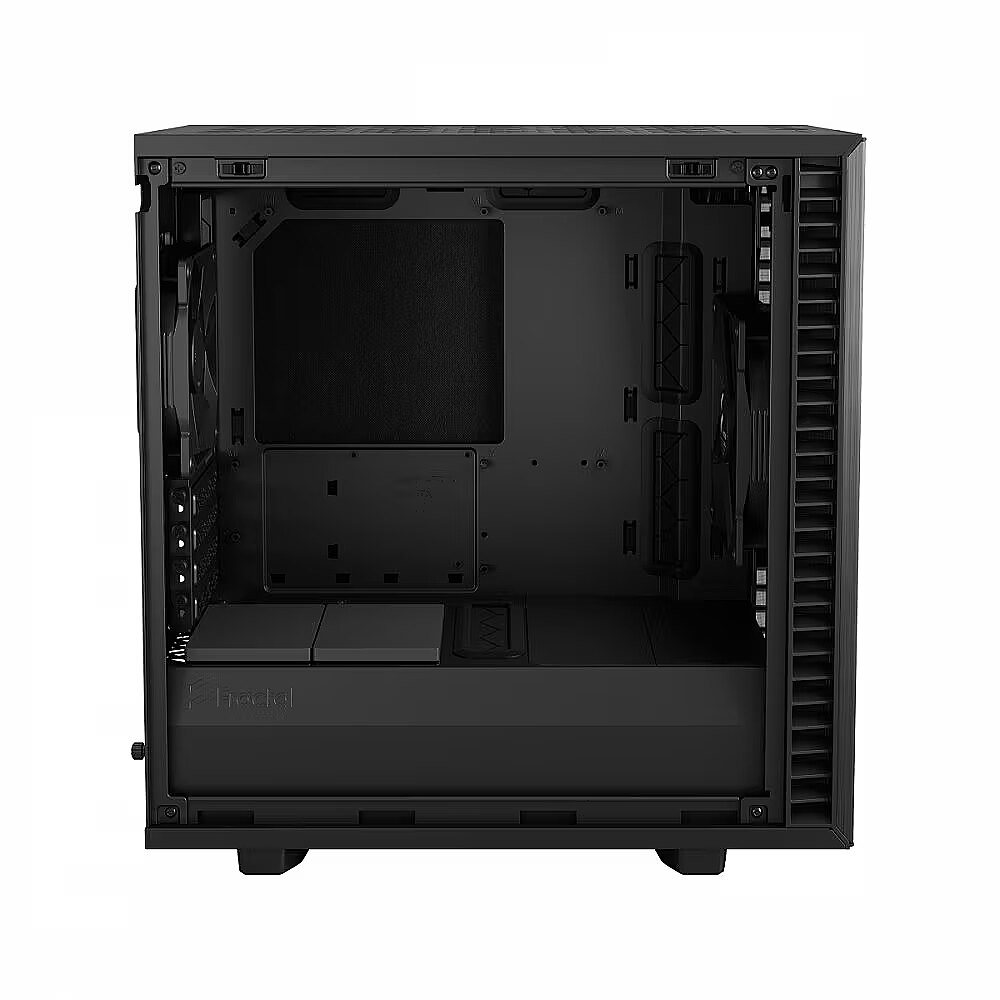

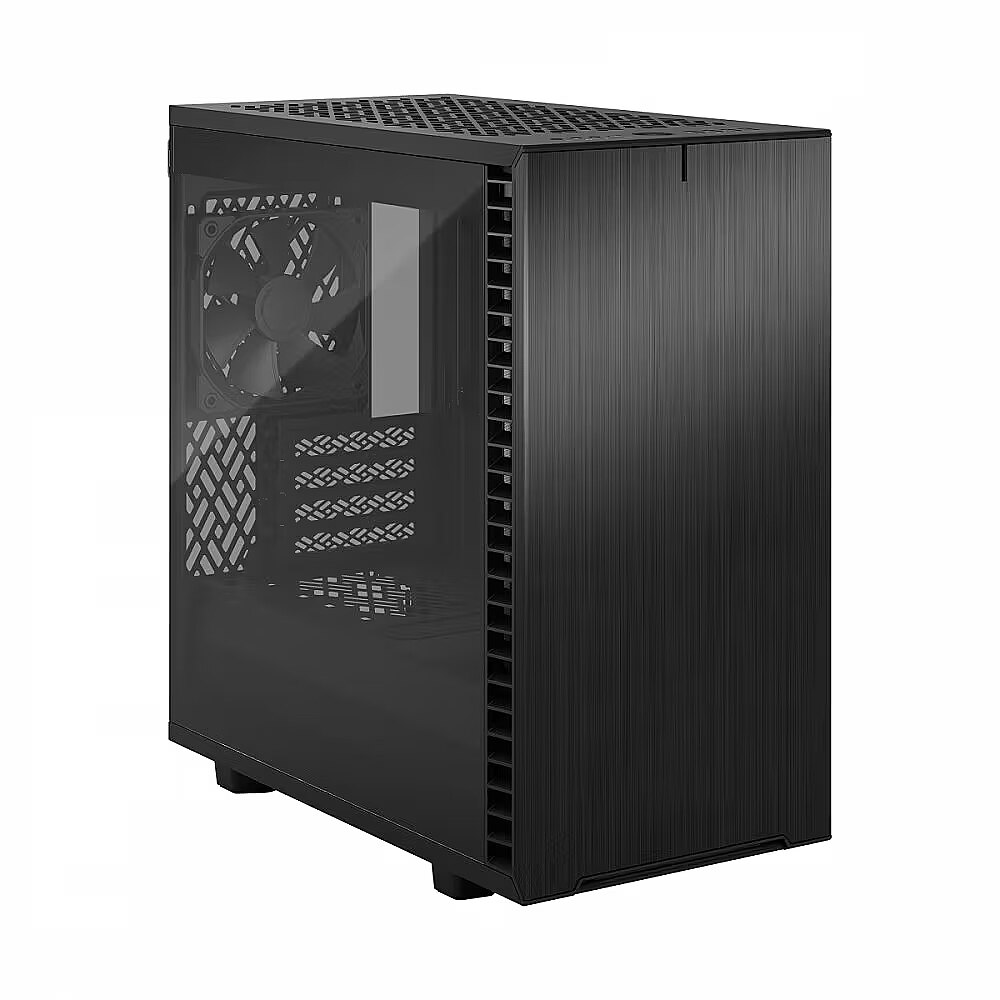

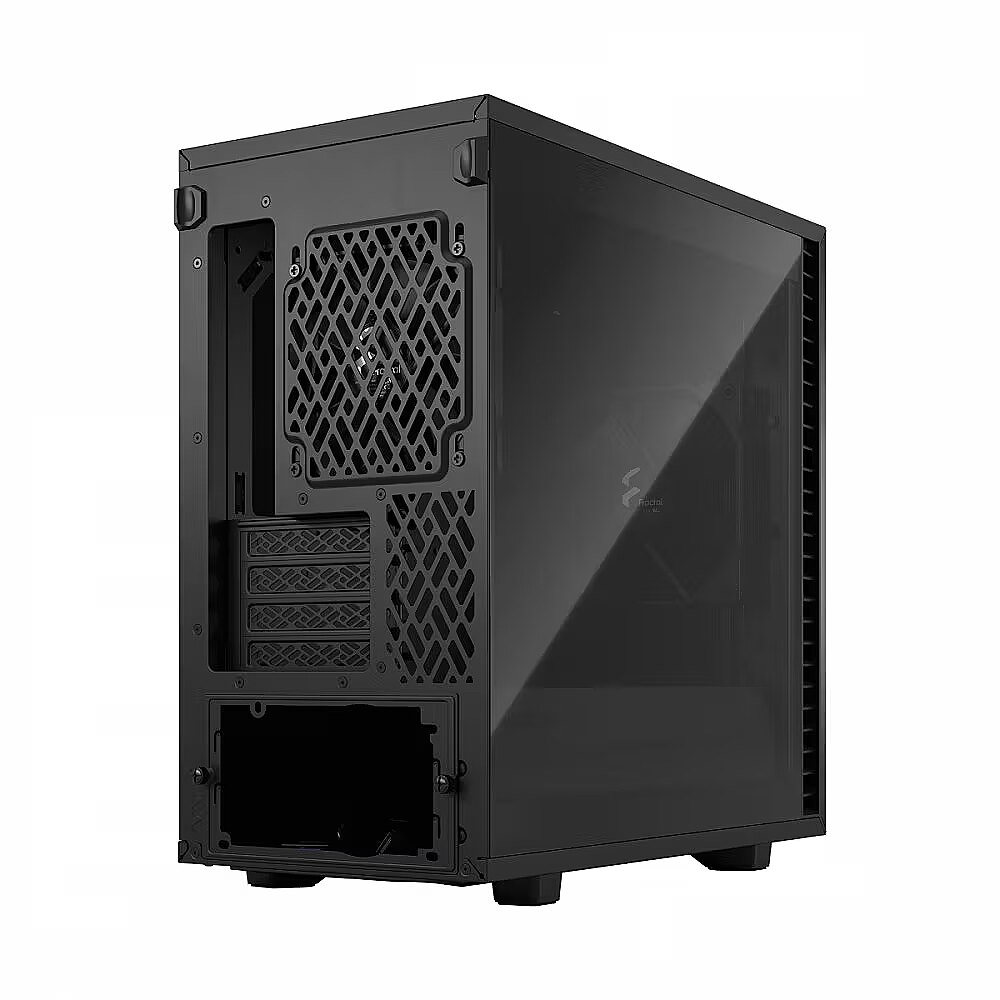

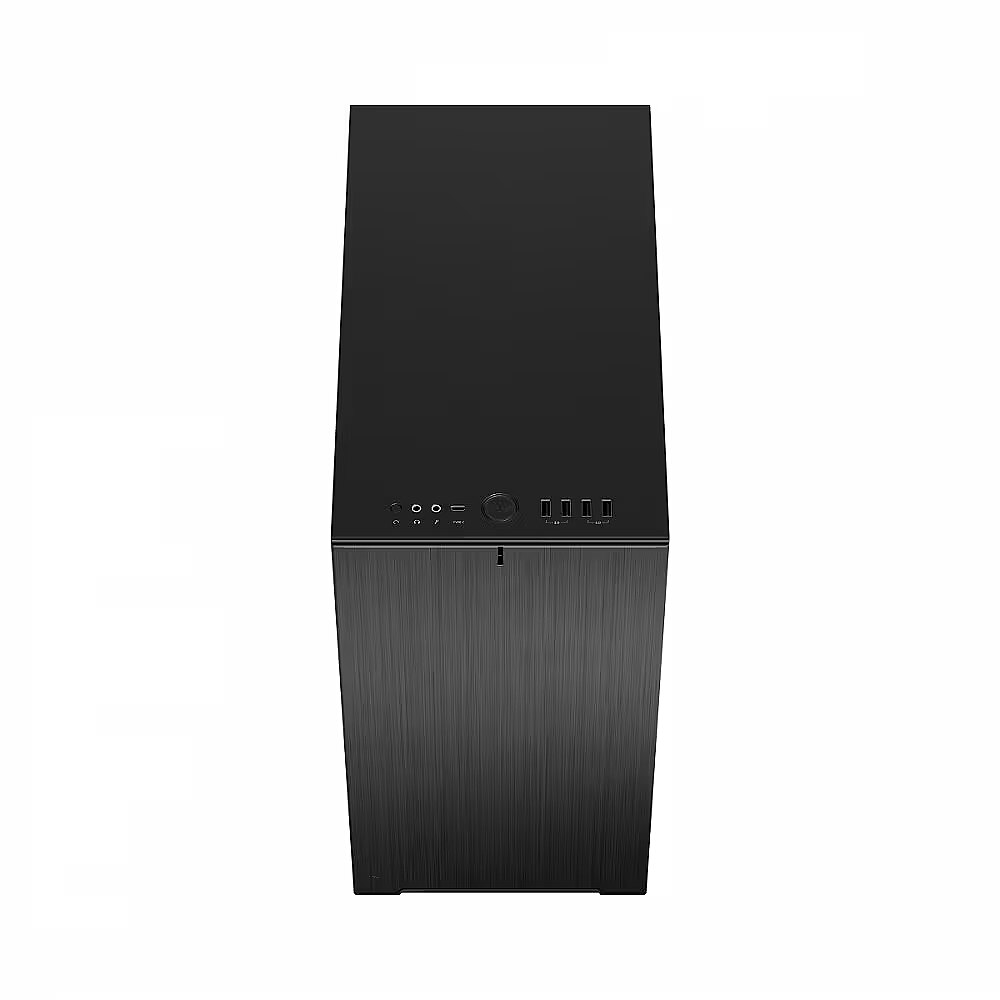

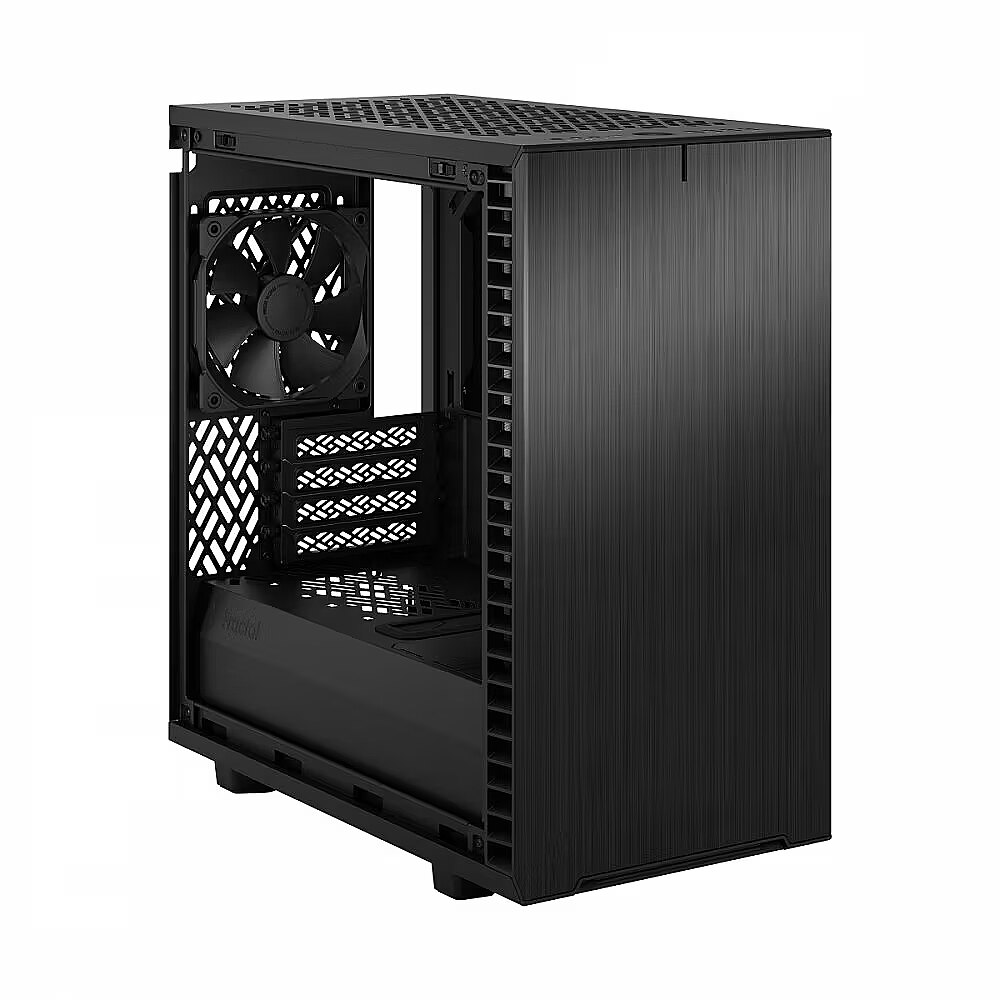

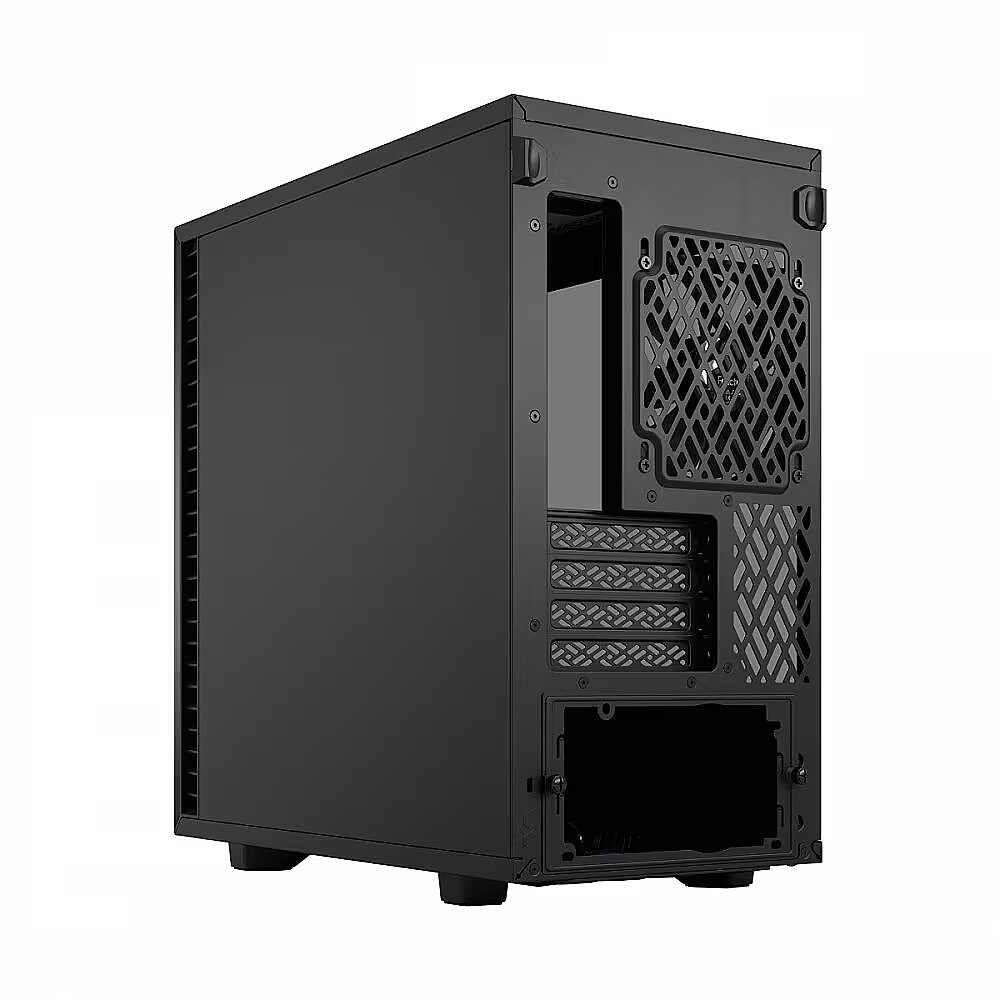

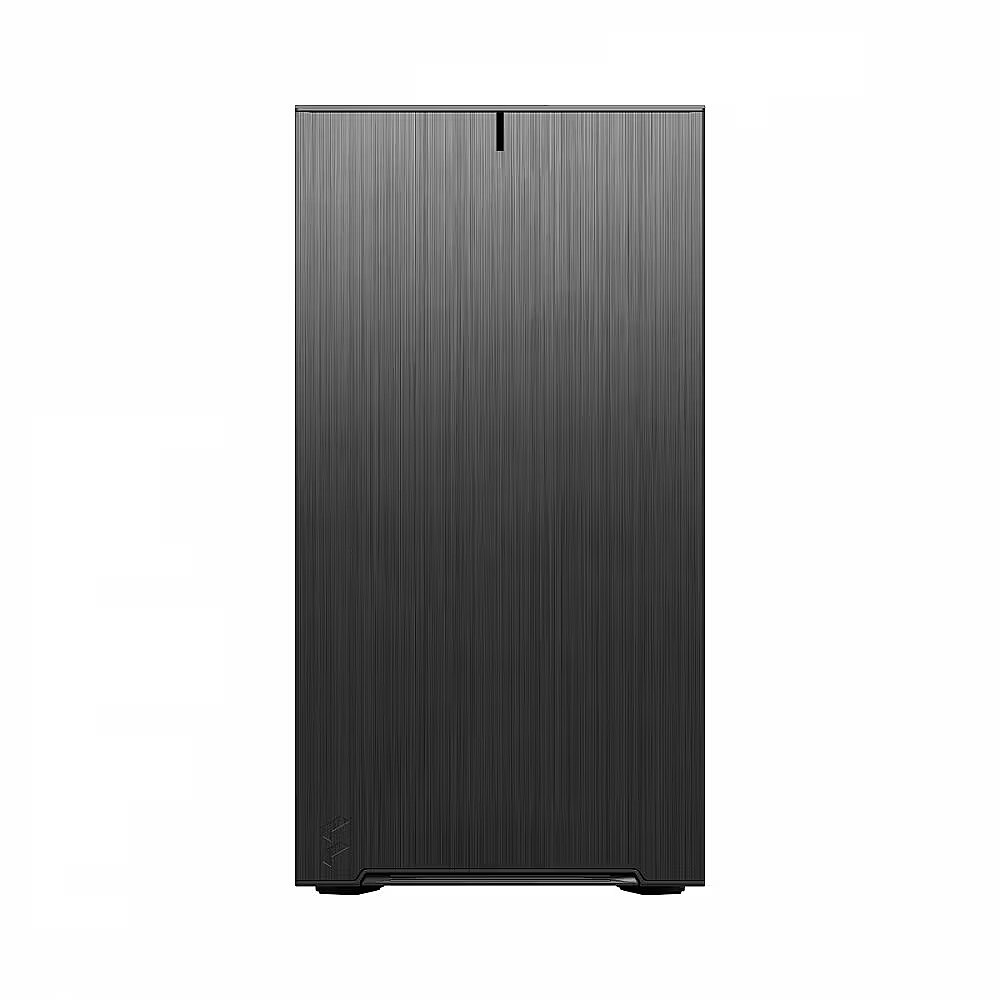

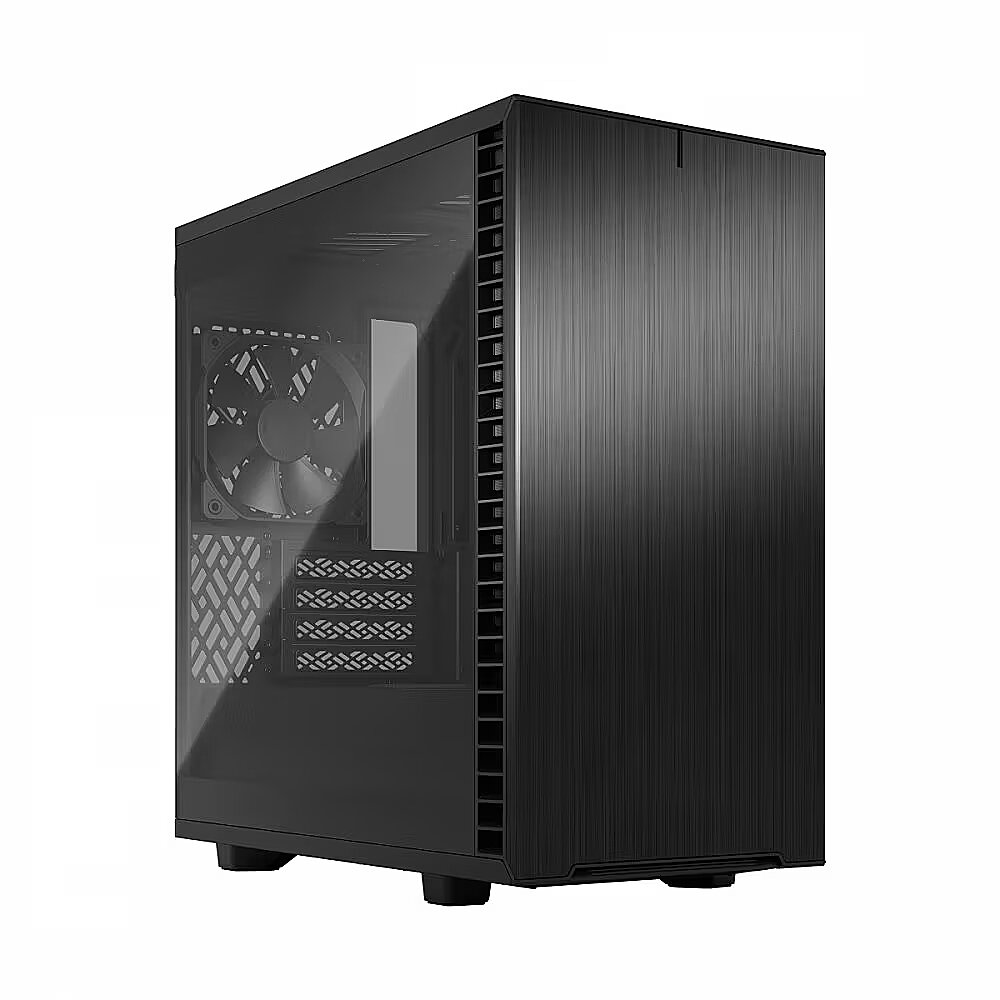

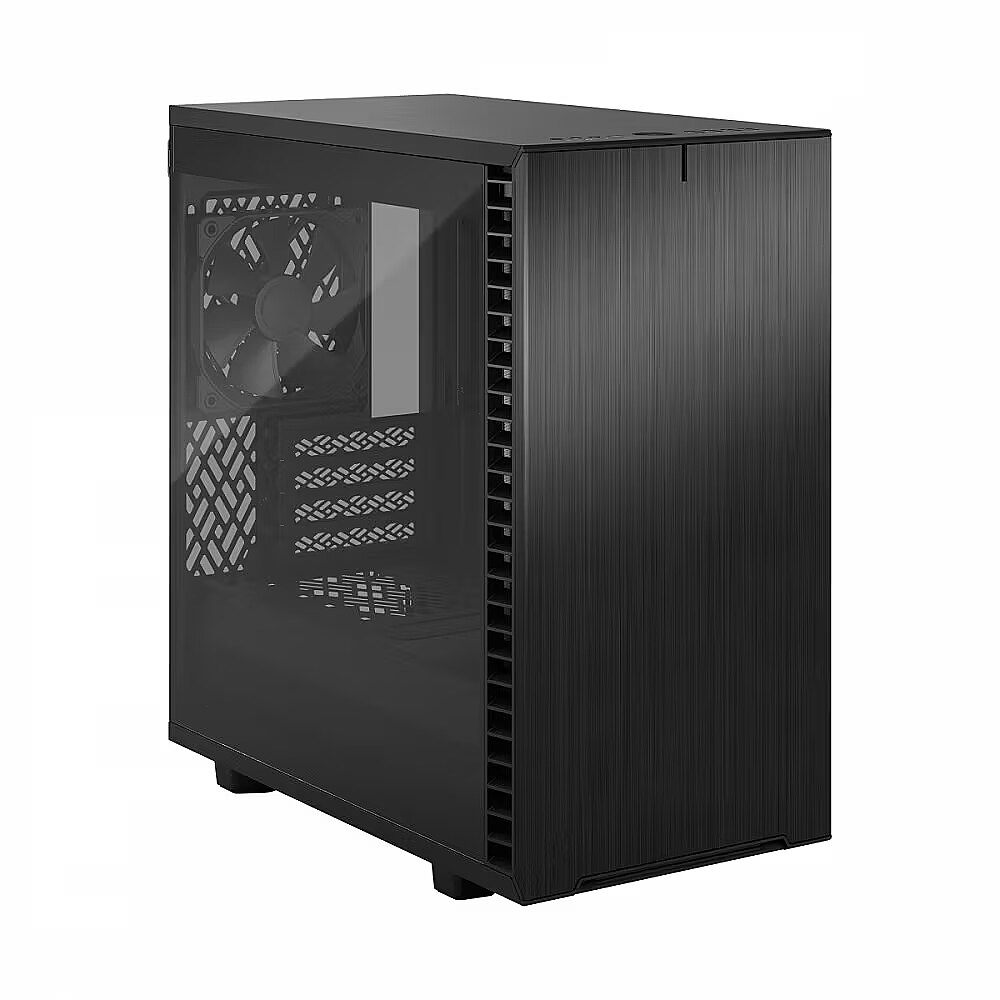

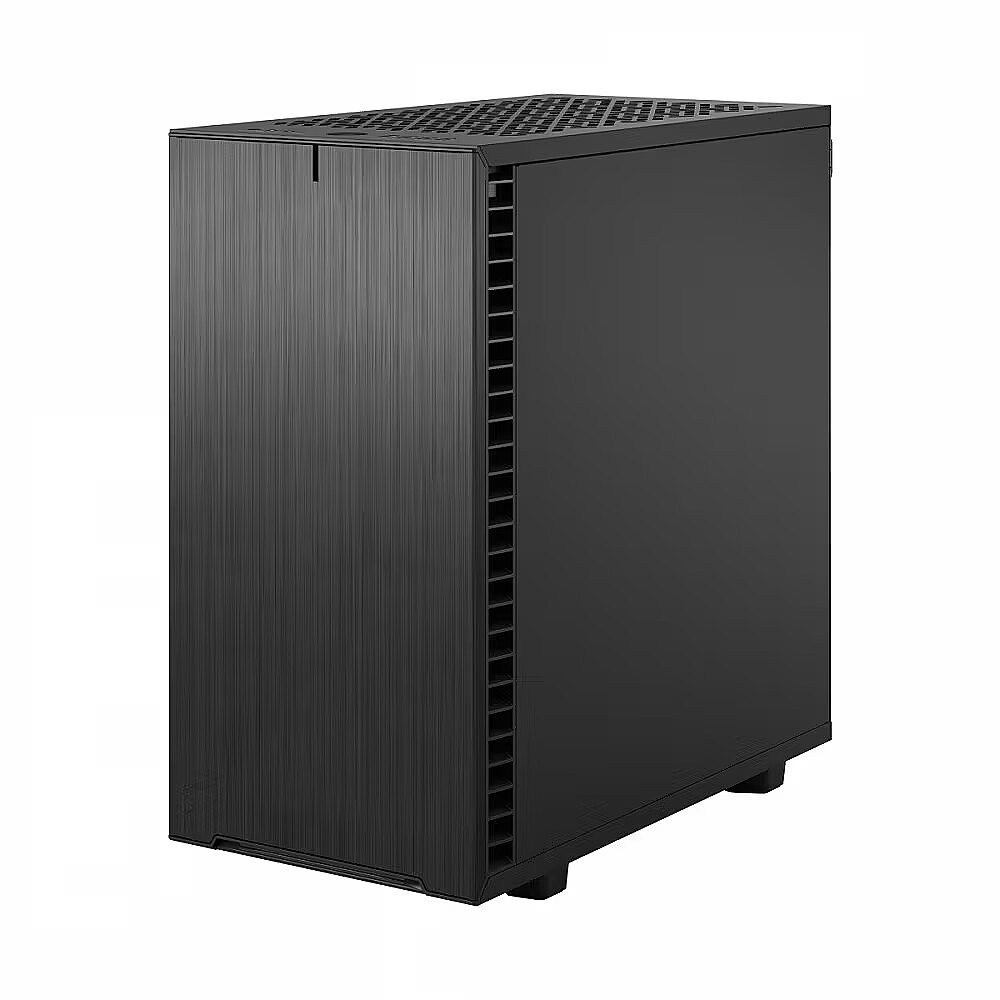

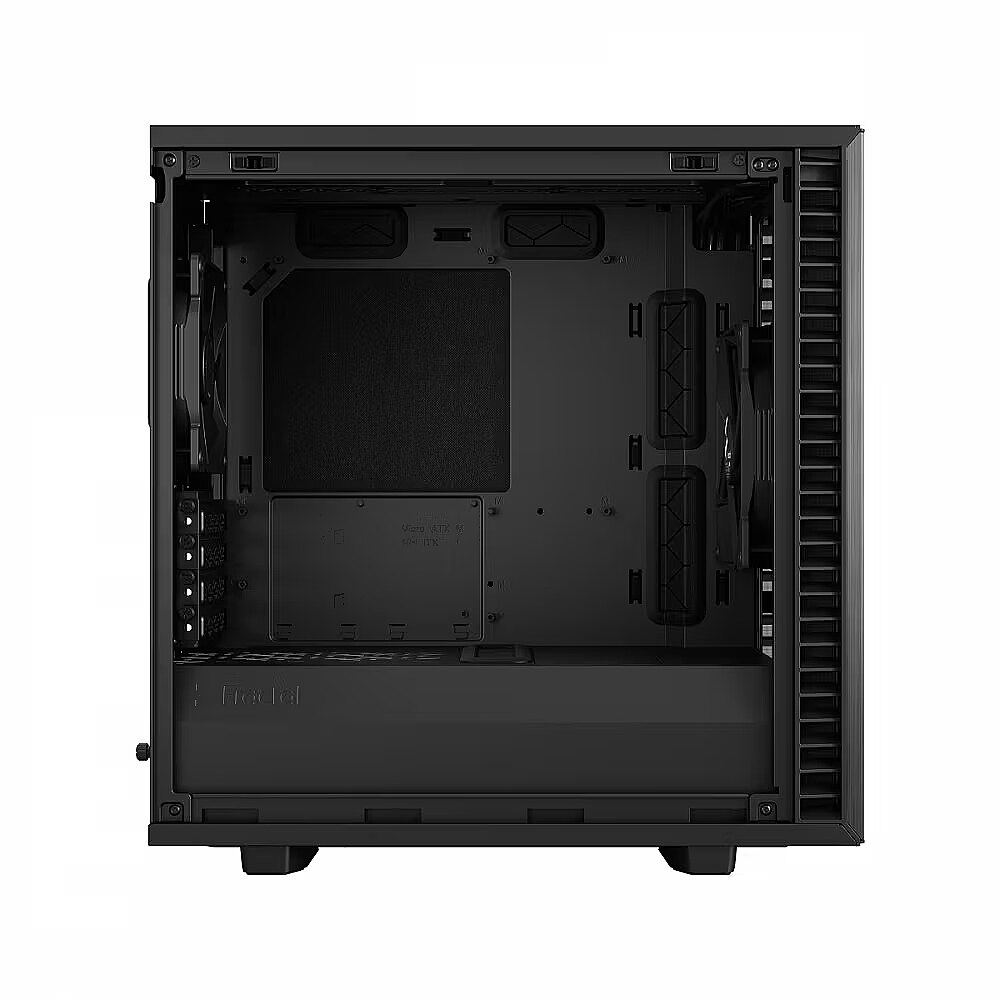

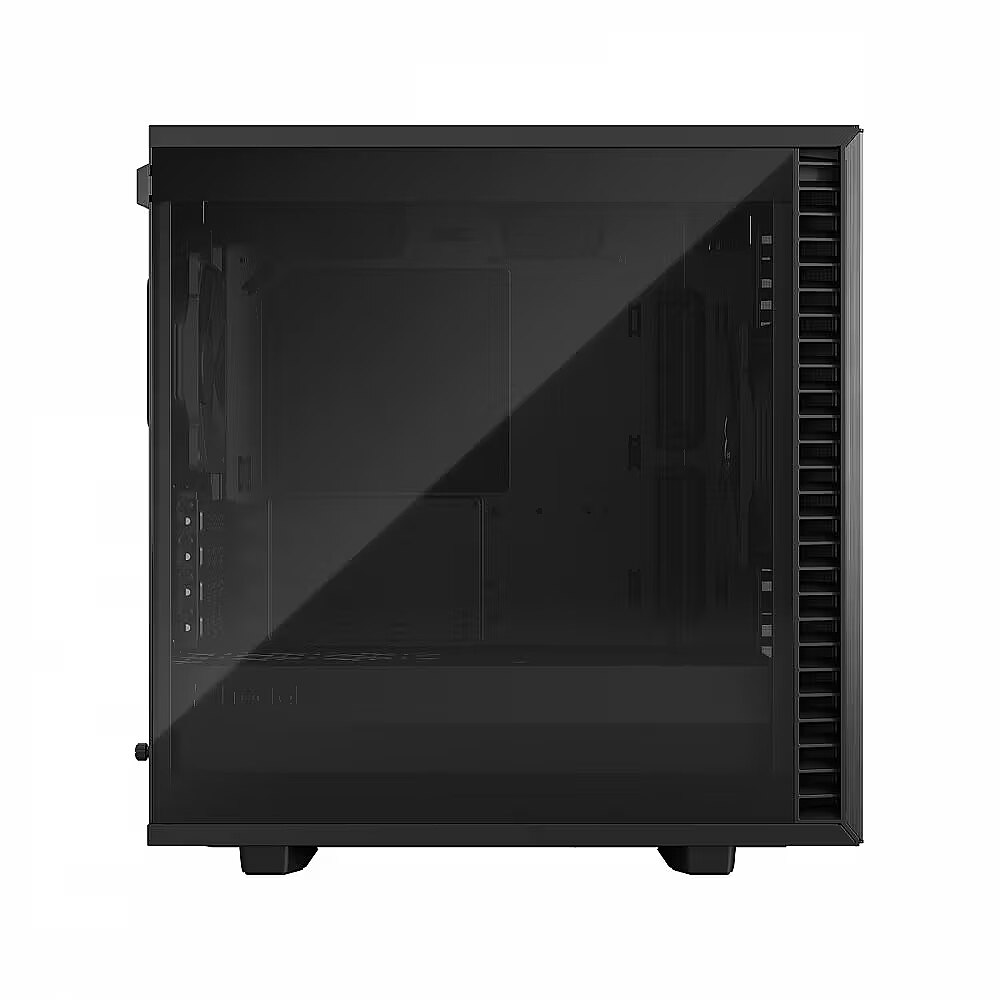

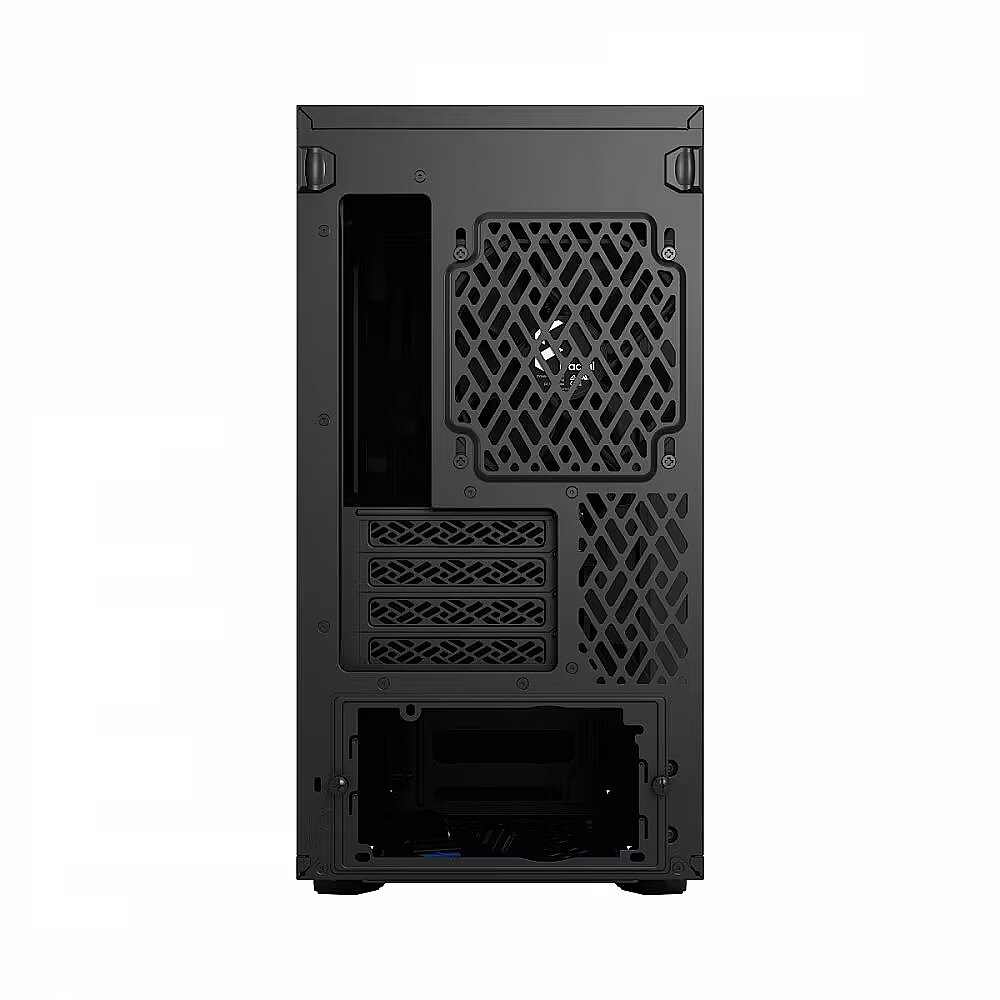

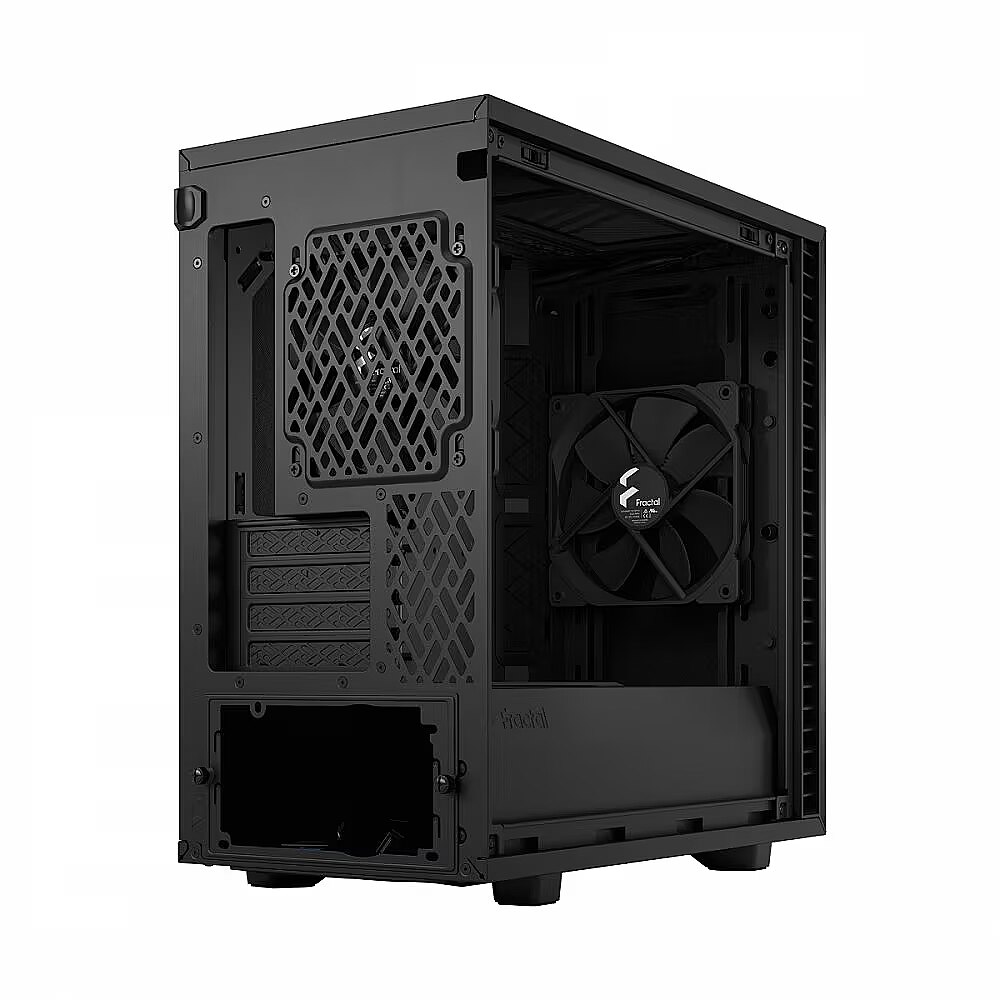

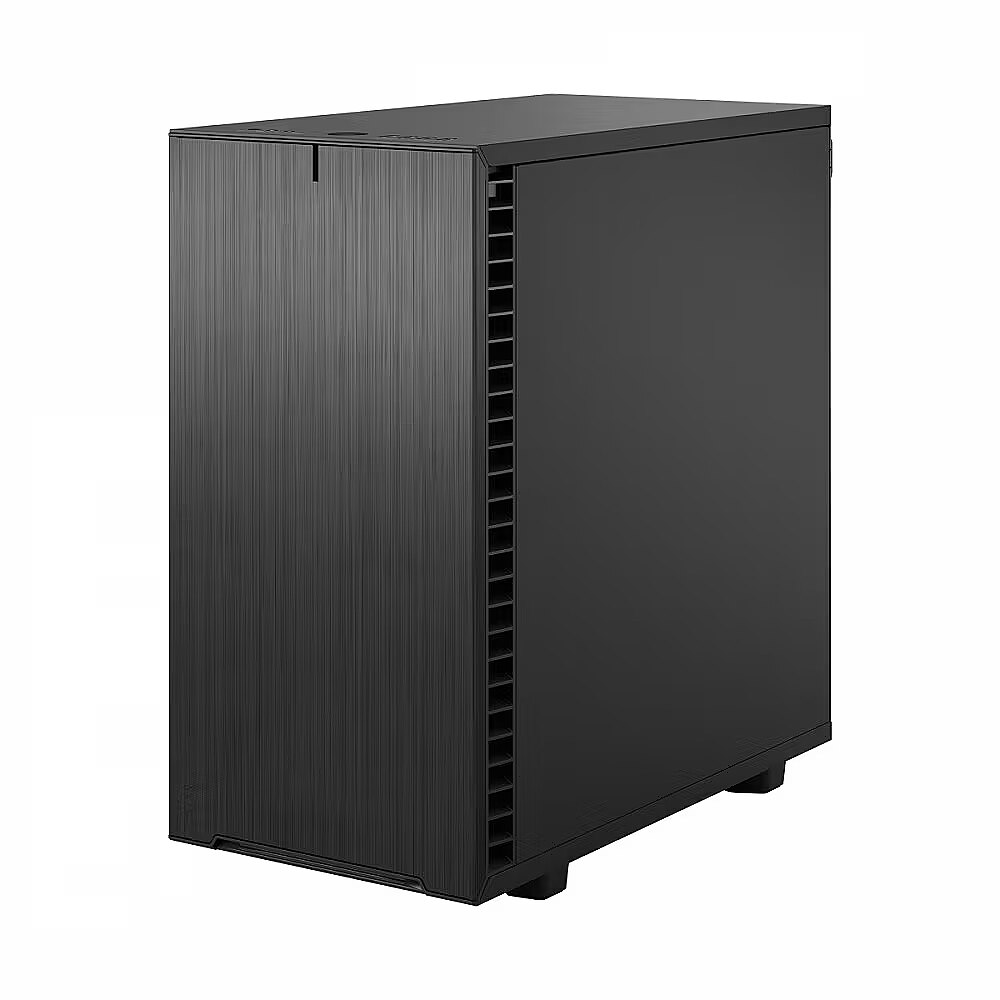

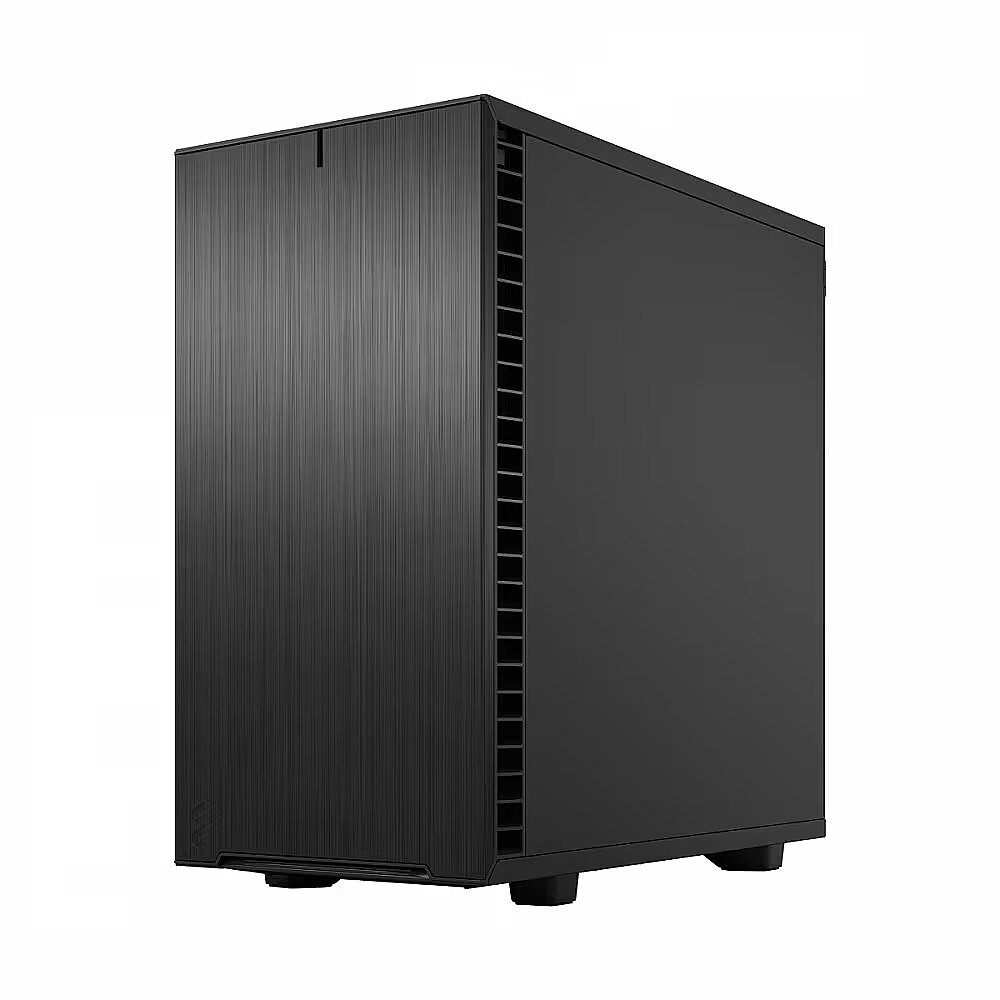

Fractal Design Define 7 Mini, Black, Tempered Glass Light Tint

Category - Root/Electronics/PC parts/Computer casings
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Mini Tower
Code - FD-C-DEF7M-02
Color - Black
Cooling > Front radiator sizes supported - 3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included) mm
Cooling > Rear fans diameters supported - 1x 120 mm (1x Dynamic X2 GP-12 included) mm
Cooling > Top radiator sizes supported - 120/240 mm (max 37 mm RAM with 121 mm wide radiator) mm
Description - Define 7 Mini oferuje ten sam stylowy wygląd i wiele poprawiających życie funkcji swojego starszego rodzeństwa, w opływowej formie. Kompaktowe, ale przestronne wnętrze pomieści płyty główne mATX i Mini ITX Miejsce na GPU do 331 mm z radiatorem 240 mm na górze lub 306 mm z wentylatorami o grubości 25 mm z przodu Obsługa 2 dysków 2,5 cala/3,5 cala i maksymalnie 4 dysków 2,5 cala (2 wsporniki 2,5 cala w zestawie)

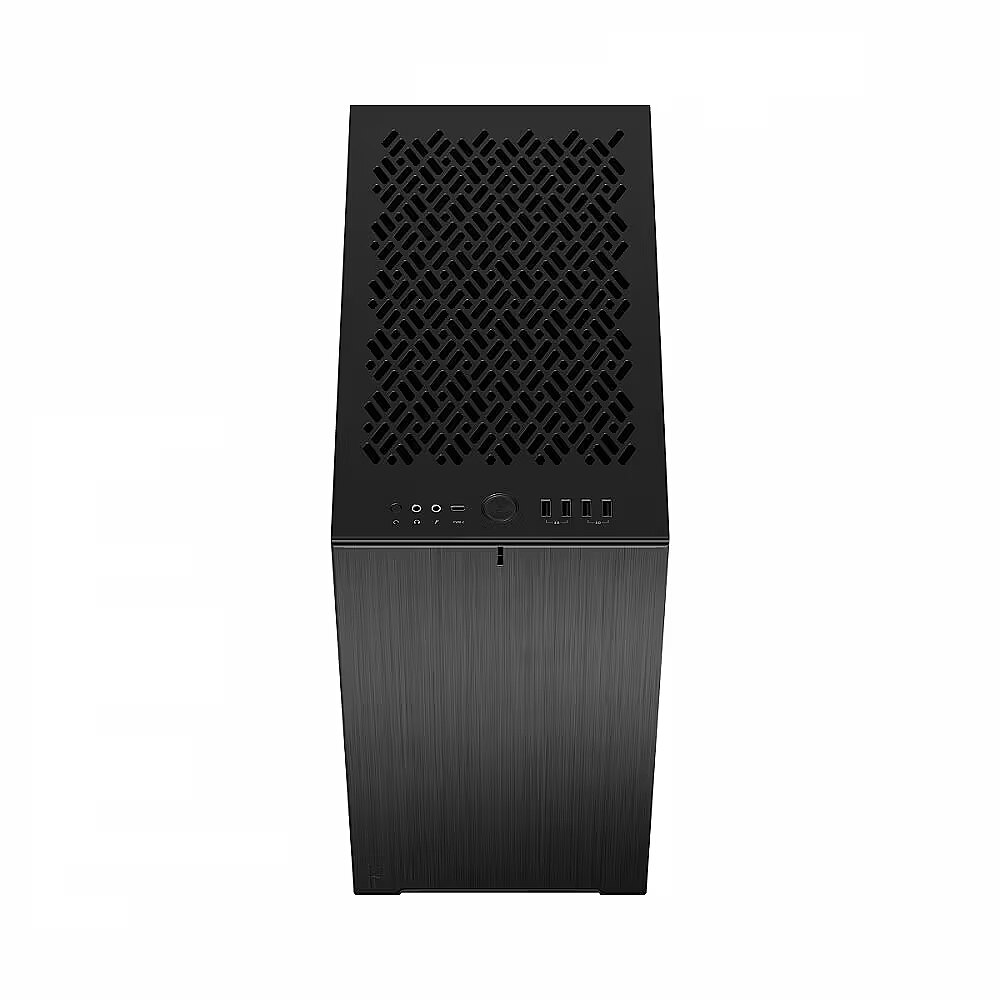

Design > Anti-dust filter - Top, Front, Bottom and PSU
Design > Colour of product - Black TG Light Tint
Design > Form factor - mATX, Mini-DTX, Mini ITX
Design > Maximum CPU cooler height - 16.7 cm
Design > Maximum PSU length - 16.5 cm
Design > Side window - Yes
dimension depth - 470 mm
dimension height - 480 mm
Dimensions - 399 x 205 x 406 mm
dimension weight - 9500 g
dimension width - 290 mm
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
EAN - 7340172702825
ean - 7340172702825
Eans - 7340172702825
EAN_code - 7340172702825
Fan - 12 cm
Fan - 14 cm
Features > Compatibility - Motherboard compatibility mATX / Mini-DTX / Mini ITX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x headphones
Front panel connectors - 1 x USB 3.1 Typ C
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 2.0
Front panel connectors - 2 x USB 3.0
guarantee - 24
guarantee_type - normal
Link - https://www.fractal-design.com/products/cases/define/define-7-mini/black-tg-light-tint/
Manufacturer - Fractal Design
Manufacturer_code - FD-C-DEF7M-02
name - Define 7 Mini Black TG Light Tint
Name - Fractal Design Define 7 Mini black TG Light Tint, Tower Case (black, Tempered Glass)
Name - Fractal Design Define 7 Mini Czarna TG Light Tint
Name - Fractal Design | Define 7 Mini | Side window | Black TG Light Tint | mATX, Mini-DTX, Mini ITX | Power supply included No | ATX
No. of drive bays - 4
Other features - Zawartość opakowania: Define 7 Mini Instrukcja obsługi Pudełko na akcesoria Wentylowany panel górny
Other features > Dimensions (WxDxH) - 205 x 399 x 406 mm
Other features > Drive bays - Dedicated 2.5" - 4 (2 included); 3.5"/2.5" - 2 (included)
Other features > Expansion slots - 4
Other features > Power supply type - ATX
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 462.00 mm
Package features > Gross height (mm) - 471.00 mm
Package features > Gross width (mm) - 277.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 32 pc(s)
Package features > Paper/Pasteboard - 1100.00 g
Package features > PET - 13 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare other - 12 g
Package features > Tare weight (kg) - 1.60 kg
Package features > Volume (m3) - 0.06 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/4/9/7/2/7/3/190639cc1b9063011bfd500d7d90527c/original.pdf
Ports & interfaces > Interface - Front interface 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
Power supply > Power supply included - No
producer - Fractal Design
Producer - Fractal Design
ProducerCode - FD-C-DEF7M-02
Producer product name - Define 7 Mini
ShortDescription -
Side panel - Tempered Glass
Technical details > Gross weight - 8.44 kg
Technical details > Net weight - 6.84 kg
Technical details > Other features - Room for GPUs up to 331 mm with a 240 mm radiator in the top, or 306 mm with 25 mm thick fans in the fronts
Technical details > Producer - Fractal Design
Technical details > Warranty - 24 month(s)
Technical_details - Type: Tower case Color: Black EAN: 7340172702825 Manufacturer No.: FD-C-DEF7M-02 Design: midi tower Mainboard form factor: µATX Material: steel. Tempered glass Window Kit: Yes Internal dimensions: maximum 331 mm : maximum 167 mm : ATX : maximum 165 mm Drive bays: 2 pieces : 2 pieces Slots: 4 pieces Front ports: 2x audio, 2x USB-A 2.0, 2x USB-A 3.2 Gen 1 (5 Gbps), 1x USB-C 3.2 Gen 2 (10 Gbps) : The designation USB 3.2 Gen 1 corresponds to the former designation USB 3.1 Gen 1 / USB 3.0. : The designation USB 3.2 Gen 2 corresponds to the former designation USB 3.1 Gen 2 / USB 3.1. Front: 1x Dynamic X2 GP-14 fan available, another 140 mm fan can be installed, alternatively 3x 120 mm fans can be installed Rear: 1x Dynamic X2 GP-12 fan available Notes: 2x 140mm or 2x 120mm fans can be installed on the top, 1x 120mm fan can be installed on the bottom of the case (requires removing the HDD cage), dust filters: top, front, bottom and power supply, space for cable management : 15-25 mm, rubberized cable grommets, tool-free push-to-lock closure: top, front and side panels Water cooling possible: Yes front: 120, 240 mm, 140, 280 mm (361 mm max. height, 146 mm max. width), top: 120, 240 mm (max. 37 mm RAM with 121 mm wide radiators), rear: 120 mm, Bottom: 120mm (requires HDD cage removal) Dimensions: Width: 205mm x Height: 406mm x Depth: 399mm Weight: 6.8kg
vendpn - FD-C-DEF7M-02
Warranty - 24
Weight - 6.84 kg
Weight - 9,40
