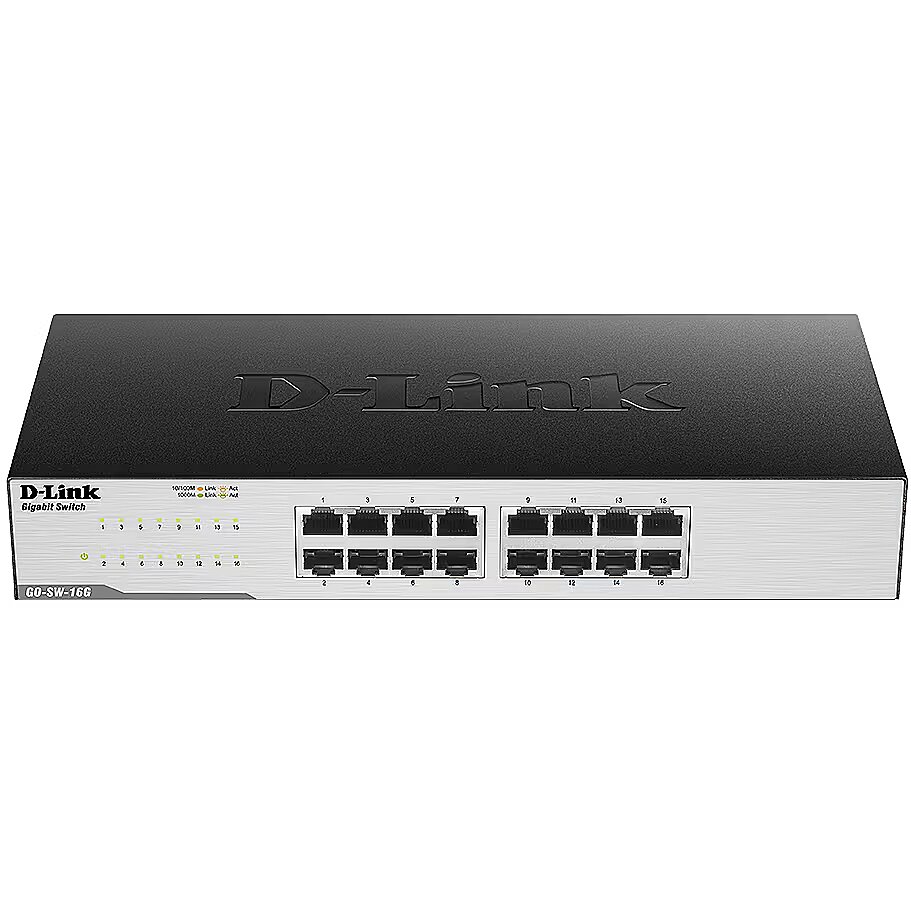

D-Link GO-SW-16G 16-Port

ARTIKEL1 - 16-PORT GIGABIT EASY
ARTIKEL2 - DESKTOP SWITCH
Brand - D-Link
BrandPartCode - GO-SW-16G/E
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE Class A, FCC Class A, VCCI Class A, BSMI, CCC
UL, CB, LVD, BSMI, CCC
Code - GO-SW-16G/E
Data transmission - Forwarding rate - 23.81 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 0.512 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 32 Gbit/s
Data transmission > Switching capacity - 32 Gbit / s Gbit/s
Design - Form factor - 1U
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design > Form factor - Desktop/Rackmountable
EAN - 790069396618
EAN - 0790069396618
EANCode - 0790069396618
EAN_code - 0790069396618
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 790069396618
GTIN - 0790069396618
GTIN - 7900693966184
HERSTELLER - D-LINK
HSTNUMMER - GO-SW-16G/E
Link - https://eu.dlink.com/uk/en/products/go-sw-16g-24g-16-24-port-gigabit-unmanaged-desktop-switch
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.Upgrade to Gigabit NetworkingWith data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.Conserve EnergyThe GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.Reliable Plug and Play InstallationThe GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
LongProductName - 16 x 10/100/1000 Mbps LAN, 32 Gbps, 8K MAC, 280 x 126 x 44 mm
LongSummaryDescription - D-Link GO-SW-16G. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: 1U
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer - D-Link (Deutschland) GmbH
Manufacturer_code - GO-SW-16G/E
MPN - GO-SW-16G/E
Name - D-Link GO-SW-16G 1000/UNM/16
Name - D-Link | 16-Port Gigabit Easy Desktop Switch | GO-SW-16G/E | Unmanaged | Desktop/Rackmountable | 24 month(s)
Name - GIGABIT EASY
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 1000BASE-T, 100BASE-TX, 10BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions - Heat dissipation - 39.92 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features > Dimensions (WxDxH) - 280 x 126 x 44 mm mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 280.00 mm
Package features > Gross height (mm) - 45.00 mm
Package features > Gross width (mm) - 126.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 935 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 328 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 1.45 kg
Packaging data - Package width - 180 mm
PDF - https://www.blobs.lt/products/4/3/1/6/9/3/c364ed4a21420c7ee29fe5ba0ce073b5/original.pdf
Performance - Mean time between failures (MTBF) - 305171 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 16
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > Video port type - 16 port 10/100/1000
Power - DC input voltage - 12 V
Power - Input current - 1 A
Power - Number of power supply units - 1
Power - Power consumption (max) - 11.7 W
Power - Power supply included - Yes
Power - Redundant power supply (RPS) support - No
Power > Power supply - 12 V / 1 A (external PSU) W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Producer product family - 16-Port Gigabit Easy Desktop Switch
Producer product name - GO-SW-16G/E
ProductName - GO-SW-16G
ShortSummaryDescription - D-Link GO-SW-16G, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Stck_Kart - 9998
Stck_Pal - 19
Storno - N
Technical details - Master (outer) cases per pallet (air) - 30 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 30 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 491.5 kg
Technical details - Pallet gross weight (sea) - 491.5 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 2.06 m
Technical details - Pallet height (sea) - 2.06 m
Technical details - Products per pallet (air) - 300 pc(s)
Technical details - Products per pallet (sea) - 300 pc(s)
Technical details - Products per shipping (inner) case - 10 pc(s)
Technical details - Shipping (inner) case gross weight - 15.6 kg
Technical details - Shipping (inner) case height - 38.4 cm
Technical details - Shipping (inner) case length - 56.9 cm
Technical details - Shipping (inner) case net weight - 15 kg
Technical details - Shipping (inner) case width - 34 cm
Technical details > Gross weight - 1.07 kg
Technical details > Net weight - 0.87 kg
Technical details > Producer - D-Link
Technical details > Warranty - 24 month(s)
Title - D-Link GO-SW-16G Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
URL - https://eu.dlink.com/uk/en/products/go-sw-16g-24g-16-24-port-gigabit-unmanaged-desktop-switch#support
Warranty - 24
WarrantyInfo -
Weight - 0,88
Weight - 1.46
Weight & dimensions - Depth - 126 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 870 g
Weight & dimensions - Width - 280 mm
