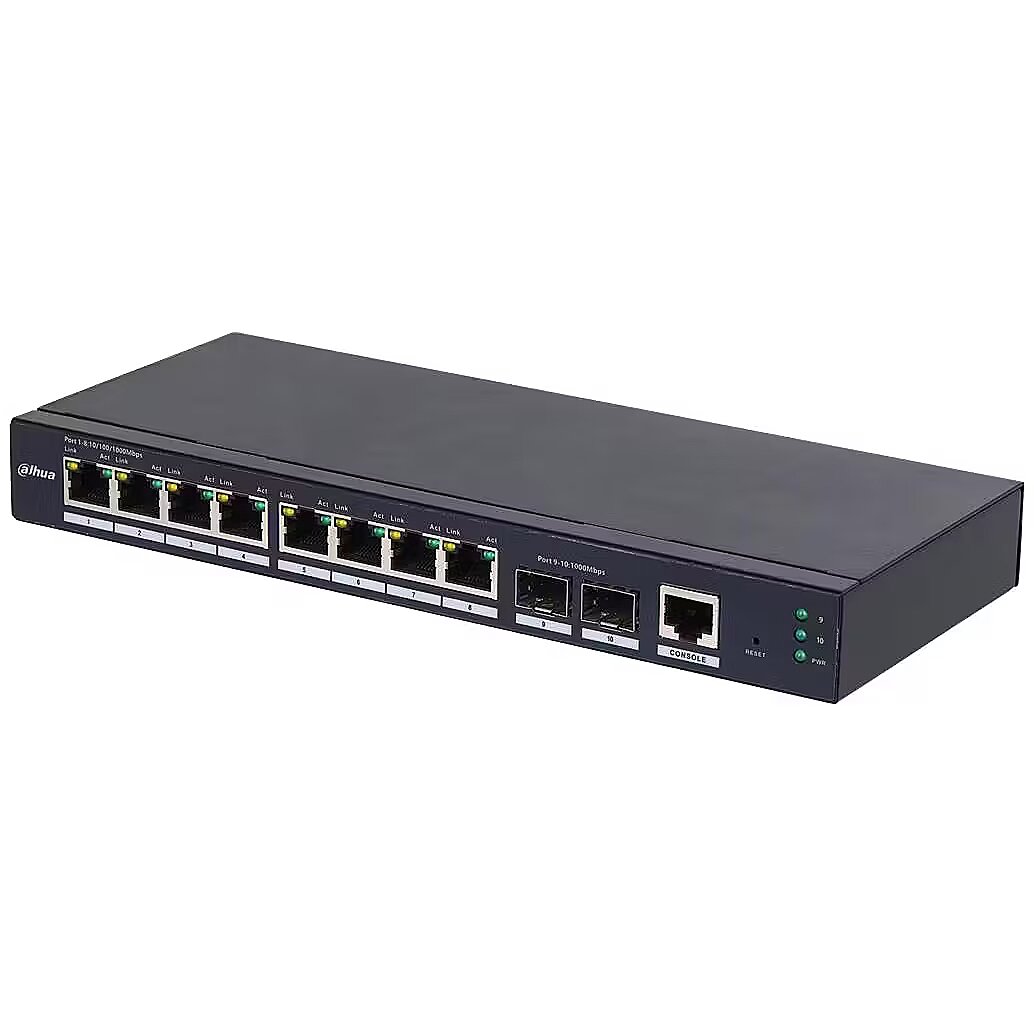

Dahua Switch|DAHUA|DH-SG4010-2F|SG4010-2F

10Base-T / 100Base-TX / 1000Base-T Ports - 10
Brand - Dahua Technology
BrandPartCode - DH-SG4010-2F
Category - Network Switches
Category Code - SWI
Certificates - Compliance certificates - CE
Data transmission - Forwarding rate - 14.88 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Switching capacity - 20 Gbit/s
Description - 10-Port Managed Desktop Gigabit Switch > Layer 2 network management switch. > Network redundancy: STP/RSTP. > Static link aggregation and LACP. > Devices discovery based on LLDP. > QoS (IEEE802.1p/1Q) to increase determinism. > IGMP Snooping. > Fanless design. > EMC high protection design. > Desktop and wall-mounted installation.
Design - Housing material - Steel
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Reset button - Yes
Design - Wall mountable - Yes
Desktop/pedestal Mounting Type - Yes
Dimensions - 240 mm × 104 mm × 28 mm
Forwarding rate - 14.88 Mpps
GTIN - 6923172597670
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3ad Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IEEE 802.3z Network standard - Yes
LongDesc - Equipped with a high performance switching engine, the 8 Port All- Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable. It also has a strong switchingcapability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design and fanless design, the device has great heat dissipation and is low power consumption, workingin environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also offers a variety of services, supporting IGMP Snooping, Link Aggregation, QoS, LLDP, STP/RSTP and various web and network management software based on SNMP.Link Layer Discovery Protocol (LLDP)Enables network devices to advertise their information mutually, al- lowing you to conveniently monitor and manage devices in the local topology. This makes it easy for administrators to effectively performtroubleshooting.Quality of Service (QoS)Uses mechanisms designed to control bandwidth, delay, jitter, and loss to ensure the performance of services when the capacity is limited.Spanning Tree Protocol (STP)Uses algorithms that calculate the best loop-free path through a Layer 2 network while providing path redundancy to prevent the occurrence of broadcast storms and enhance the stability of operations and services.Link AggregationCombines multiple physical links into one virtual channel for dynamic redundancy and load balancing, ensuring that the connection remains stable.IGMP SnoopingListens to multicast traffic, and solely forwards information to regis- tered clients based on the multicast forwarding table. This ensures the safety of information and improves network efficiency.Fanless DesignThe fanless design reduces noise, enhances user experience, reduces mechanical losses and improves service life to a certain extent.
LongProductName - 8 x 10/100/1000Base-T, 2 x 1000Base-X Uplink, 1 x Console, 20 Gbps, 14.88 Mpps, 4.1 Mbit, 8K MAC, 4K VLAN, 0.64 kg
LongSummaryDescription - Dahua Technology SG4010-2F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... DC input voltage: 12 V. Wall mountable
Management features - Cloud-managed - No
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Model name - DH-SG4010-2F
Multicast features - Multicast support - Yes
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Number of VLANs - 4000
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN, Tagged VLAN
Network - VLAN support - Yes
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Optical fiber - Fiber ethernet cabling technology - 1000BASE-X
Packaging data - Package depth - 316 mm
Packaging data - Package height - 82 mm
Packaging data - Package weight - 1.04 kg
Packaging data - Package width - 240 mm
Performance - Fanless - Yes
Performance - Mean time between failures (MTBF) - 2322286.99 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces - SFP module slots quantity - 2
Ports & interfaces - Uplink ports quantity - 2
Power - DC input voltage - 12 V
Power - Input current - 1 A
Power - Power consumption (max) - 12 W
Power - Power source - DC
Power options - 12V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power source - 12 VDC,1A
Primary port count - 10
ProductName - SG4010-2F
Product Net Weight - 0.64 kg
Protocols - Management protocols - SNMP V1/V2C/V3
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
ShortSummaryDescription - Dahua Technology SG4010-2F, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Sustainability - Sustainability compliance - Yes
Switching capacity - 20 Gbps
Title - Dahua Technology SG4010-2F Managed L2 Gigabit Ethernet (10/100/1000) Black
Unit Box Height - 0.08
Unit Box Length - 0.315
Unit Box Width - 0.24
Unit Calculated Volume - 0.007659 cubm
Unit Calculated Weight - 1.18 kg
Units per Pallet - 0
Units per Shipping Box - 12
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/Managed-Switch/SG4010-2F
Vendor Homepage - transmission.dahuasecurity.com/en/product-list/Business/Switches/AccessSwitch/SG4010-2F
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 240 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Weight - 640 g
Weight & dimensions - Width - 104 mm
