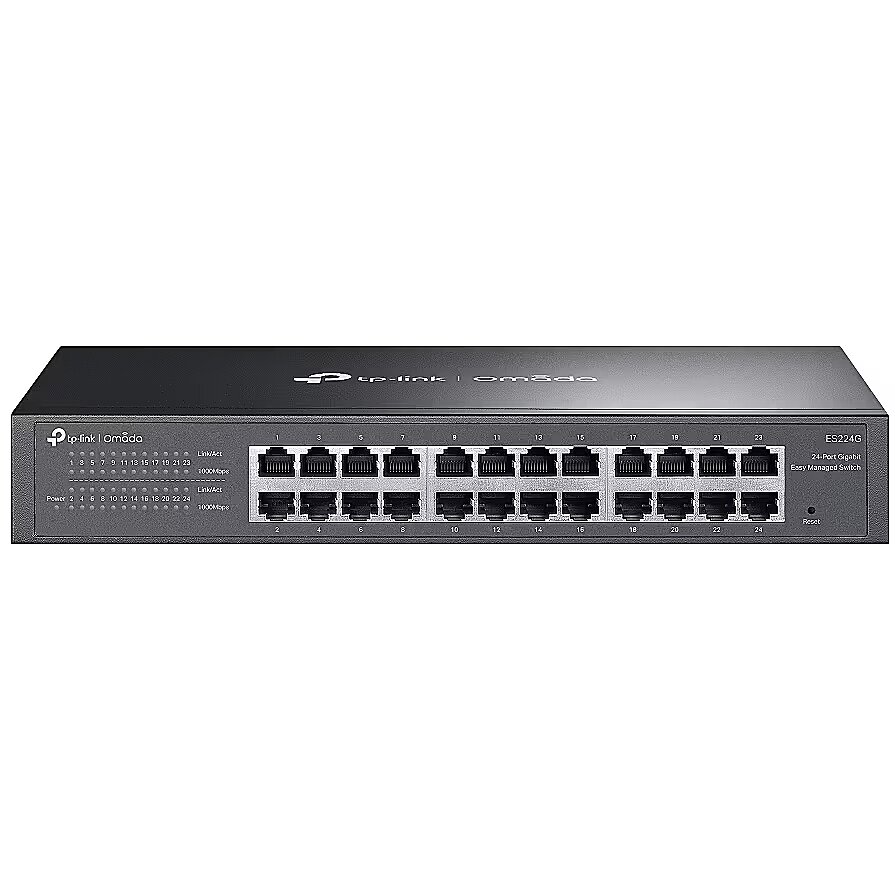

TP-LINK Omada ES224G, 24x1Gb

10/100/1000/2500 Mbps ports - None
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
Application - Medium and large companies
ARTIKEL1 - 24-PORT 1G EASY MANAGED SWITCH
ARTIKEL2 - MANAGED SWITCH
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 24
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - ES224G
Breite - 0
Broadcast storm control Network - Yes
Cables included Packaging content - AC
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - FCC, CE, RoHS
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Chassis type - Rack
Cloud-managed Management features - Yes
Compliance certificates Certificates - CE, Federal Communications Commission (FCC), RoHS
Console port - No
Data transmission - Forwarding rate - 35.7 Mpps
Data transmission - Jumbo frames - 15000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 48 Gbit/s
Depth Weight & dimensions - 140 mm
Description - ES224G
Omada Easy Managed Switch, 24 Gigabit Ports
24 10/100/1000 Mbps RJ45 Ports Easy to use thanks to plug-and-play operation, enabling instant connection, and simple configuration provides access to additional features. Centralized cloud management via the website or the Omada app. VLAN, port isolation, cable test, and QoS ensure reliable monitoring networks. IGMP Snooping and Automatic Loop Prevention. Fanless design ensures silent operation. Rugged metal housing with tabletop or rackmount options.
Description - Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
24× 10/100/1000Mbps RJ45 portsEasy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional featuresCentralized Cloud Management via the web or the Omada app†VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networkingAutomatic Loop Prevention and IGMP SnoopingFanless design for silent operationDurable metal casing and desktop/rack mounting design
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
DHCP features Security - DHCP client
dimensionalWeight - 1407
dimension depth - 80 mm
dimension height - 250 mm
Dimensions - 294× 140 × 44 mm
dimension weight - 2000 g
dimension width - 240 mm
ean - 1210002600705
EAN - 1210002600705
EANCode - 1210002600705
Environment requirements - Permissible operating temperature: -5~50 degrees Celsius Permissible storage temperature: -40~70 degrees Celsius Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
Fan - No
Fanless Performance - Yes
Fast leave Network - Yes
Firmware upgradeable Performance - Yes
Flow control support Network - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 35.7 Mpps
Forwarding rate Data transmission - 35.7 Mpps
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 24
Gross Weight Kg - 1,71
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0840460600316
GTIN - 840460600316
GTIN - 1210002600705
GTIN - 1210002600712
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 44 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - ES224G
IGMP snooping Security - Yes
Jumbo frames Data transmission - 15000
Jumbo frame size - 15 KB
Jumbo frames support Data transmission - Yes
L2 features - Static Link Aggregation Loop Prevention / Loopback Detection Flow Control: 802.3x Flow Control Mirroring: Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both Port Statistics; Port Mirroring Status; Traffic Statistics 802.1ab LLDP
L3 features -
Laenge - 0
Link aggregation Network - Yes
LongDesc - Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
LongProductName - ES224G Omada 24-Port Gigabit Easy Managed Switch
LongSummaryDescription - TP-Link Omada ES224G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Rack mounting
MAC address table Data transmission - 8000 entries
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Unified static configuration - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - ES224G
Manufacturer Name - TP-LINK
Mean time between failures (MTBF) - 400770 h
Model - Omada
MPN - ES224G
Multicast features - Multicast support - Yes
Multicast support Multicast features - Yes
name - Omada 24-Port GB Easy Managed Switch PORT: 24× Gigabit RJ45 Ports | SP ES224G
Name - TP-Link Omada ES224G 24-Port Gigabit Easy mgd. Switch
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Fast leave - Yes
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Number of VLANs - 32
Network - Port mirroring - Yes
Network - Virtual LAN features - MTU VLAN
Network - Virtual LAN features - MTU VLAN, Port-based VLAN
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Number of VLANs Network - 32
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -5 - 50 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - AC
Packaging content - Rack mount kit - No
Packaging content - User guide - Yes
Packet buffer memory Data transmission - 4 MB
Performance - Fanless - Yes
Performance - Firmware upgradeable - Yes
Port mirroring Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power source - AC
Power - Power supply included - Yes
Power - Surge protection - Yes
Power - Surge protection voltage - 6 kV
Power consumption - 11.4 W
Power source Power - AC
Power supply - 100-240 V~50/60 Hz
Power supply - External
Power supply included Power - Yes
producer - TP-LINK
producerCode - ES224G
Product colour Design - Black
ProductName - ES224G
productName - TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
productSize - Normal
QoS - Port-based QoS/802.1p/DSCP 8 Priority Queues Priority Scheduling Mode: WRR (Weighted Round Robin) Queue Weight Configuration Bandwidth Control: Port-based rate limiting Storm Control: Multiple control modes (kbps / pps); Broadcast/Multicast/Unknown-Unicast
Quality of Service (QoS) support Management features - Yes
Queue scheduling algorithms Security - Weighted Round Robin (WRR)
Rack mounting Design - Yes
Rack mount kit Packaging content - No
Security -
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
Series - ES224G
Short description - TP-LINK Switch Omada ES224G 24xGBit Managed
ShortSummaryDescription - TP-Link Omada ES224G, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
sizeX - 85
sizeY - 345
sizeZ - 240
Stackability - No
Stck_Kart - 8
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link Omada ES224G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Rack mounting
Supported protocols and standards -
Support for Jumbo frames - Yes
Surge protection Power - Yes
Surge protection voltage Power - 6 kV
Switch class - Managed
Switching capacity Data transmission - 48 Gbit/s
Switch layer - L2
Switch layer Management features - L2
Switch type Management features - Managed
Throughput - 48 Gb/s
Title - TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Unified static configuration Management features - Yes
Unit Box Height - 0.24
Unit Box Length - 0.34
Unit Box Width - 0.08
Unit Calculated Volume - 0.006528 cubm
Unit Calculated Weight - 1.964 kg
Units per Shipping Box - 1
URL - https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es224g/
User guide Packaging content - Yes
Vendor Homepage - https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es224g/
vendpn - ES224G
Virtual LAN features Network - MTU VLAN, Port-based VLAN
VLAN -
VLAN support Network - Yes
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Web-based management Management features - Yes
Weight - 1.96
weight - 1970
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 294 mm
Width Weight & dimensions - 294 mm
