Code - 77624
EAN - 4040849776243
Gross weight - 5.054 kg

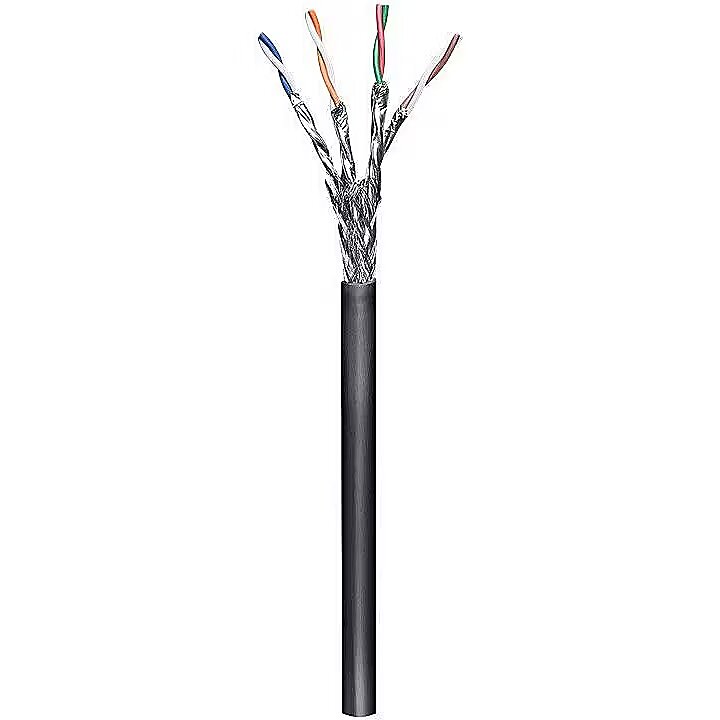

Name - Goobay 77624 CAT 6 outdoor network cable, S/FTP (PiMF), black, 100m. | Goobay
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 260.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 98 pc(s)
Package features > Paper/Pasteboard - 53.00 g
Package features > PET - 1.00 g
Package features > Tare weight (kg) - 0.054 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Technical details > Net weight - 5.00 kg
Technical details > Other features - CU, AWG 24/1 (solid), PF non-terminated data-/installation cable for processing and installation with LSA connection technology for Home-/outdoor usage double shielded twisted-pair LAN cable pairs screening: PIMF (pairs in metal foil) + outer shield: braiding This product is not approved for permanent installation in buildings. Technical specifications Cable Cable type round cable Specification CAT 6 Shielding class S/FTP (PiMF) AWG 24/1 (solid) Meter scaling yes Cable sheath diameter (approx.) 7.6 mm Inner conductor material CU (copper) Material cable sheath PF Cable length 100 m Number of shieldings 2 x Type 1, shielding foil (alu) PiMF Type 2, shielding braid (aluminium) 64x Signal transmission max. bandwidth 250 MHz Impedance 100 Ω
Technical details > Producer - Goobay
Technical details > Type - Cat 6, S/FTP
Warranty - 12
Warranty - 12 month(s)
