Axagon CLR-M2L6, M.2 Heatsink

Accessories included - Passive heatsink, 2 thermally conductive pads, mounting material, packed in a cardboard box with clearly indicated parameters.
Box Weight Brutto (kg) - 11 kg
Color - Black
Compatible with - M.2 SSD NVMe/SATA 22 x 80 mm
Cooling System Features - Aluminium Silicone Thermal Pads
Cooling System Type - SSD Cooler

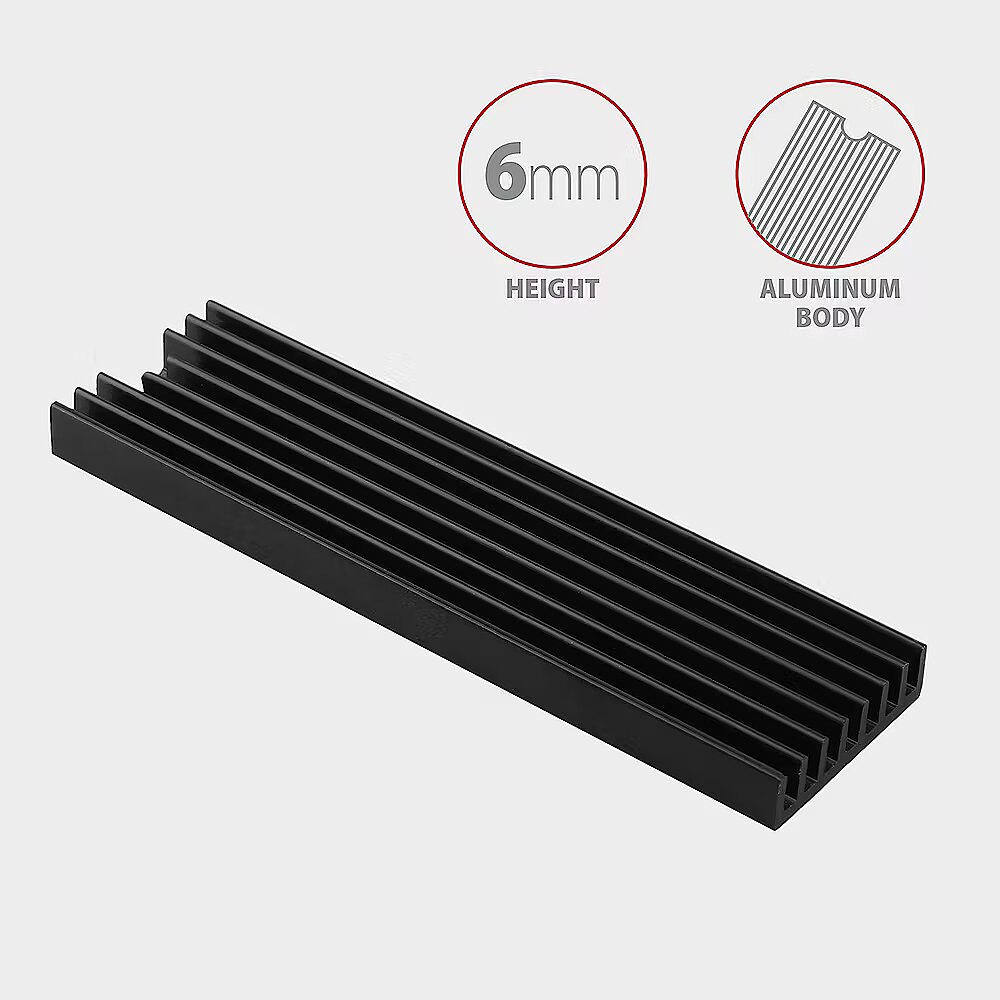

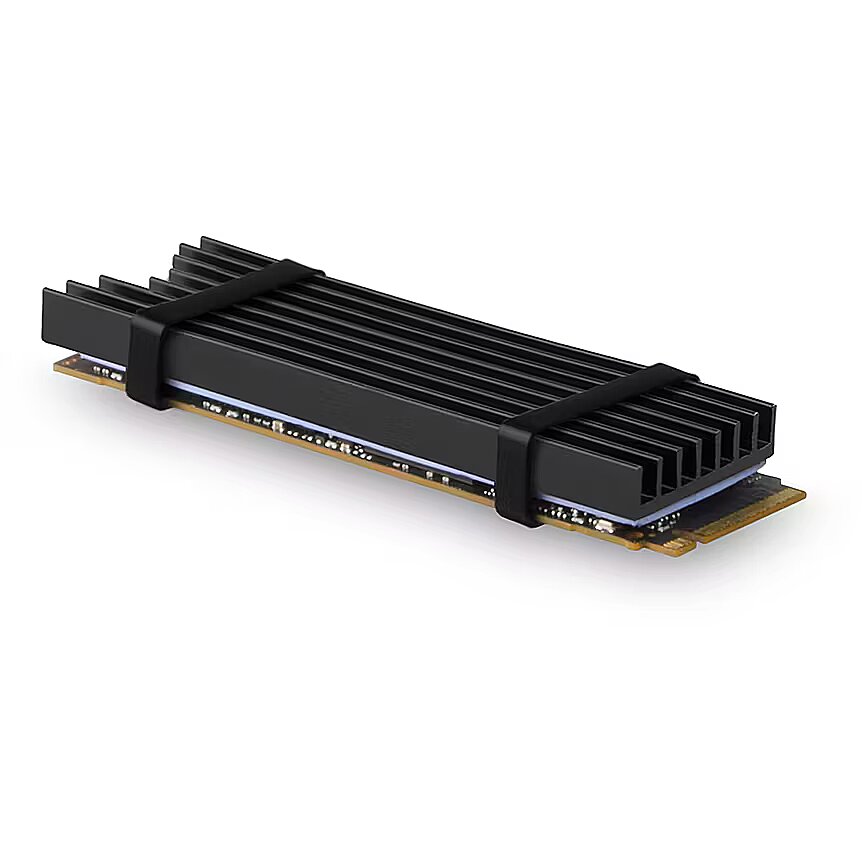

Description - AXAGON CLR-M2L6 ALU passive heatsink for ideal cooling of high performance M.2 SSDs, especially NVMe. The universal passive heatsink can be used for M.2 cards, size 22 x 80 mm. Two supplied thermally conductive pads allow cooler installation for all one-sided as well as double-sided M.2 SSD disks. 6mm high ribbed aluminum heatsink assists in a better dissipation of heat generated during the M.2 SSD operation. It also reduces the drive temperature by up to 20°C. This prolongs the M.2 SSD life and prevents disk slow down, so-called "Thermal Throttling". Thanks to its easy installation and compact dimensions, the heatsink can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. The heatsink has the ideal profile height / cooling efficiency ratio. Features:
Support of M.2 drives of any capacity. Support of both one-sided and double-sided M.2 drives. Support of M.2 drives, size 22 x 80 mm. Support of SATA (AHCI) as well as NVMe (PCI-Express) M.2 drives. Ribbed aluminum heatsink body. 2 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs. Compact dimensions 77 x 22 x 6 mm. Weight 13 g. Package contains:
Passive heatsink, 2 thermally conductive pads, mounting material, packed in a cardboard box with clearly indicated parameters
dimension depth - 20 mm
dimension height - 40 mm
Dimensions - 77 x 22 x 6 mm
dimension weight - 27 g
dimension width - 105 mm
ean - 8595247905543
External Color - Melna
guarantee - 24
guarantee_type - normal
Height (mm) - 6 mm
Image - https://content.it4profit.com/pimg/s/resize/750x750x750x750/210204170014949198.jpg
name - AXAGON CLR-M2L6 passive ALU heatsink height 6mm
Other features -
Package Type - Retail
Packs in Box - 144
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.2 kg
Parent Products - 2280 M.2 SSD
Pieces in pack - 1
Power supply -
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=210202121645634046&THEME=asbis&LANG=lv
ProductCategory - Kūleri
ProductCode - CLR-M2L6
ProductDescription - AXAGON CLR-M2L6 passive - M.2 SSD, 80mm SSD, ALU body, silicone thermal pads, height 6mm
ProductType - Cooling System
Retail Packaging Net Weight Carton - 0.2 kg
Retail Packaging Net Weight Plastic - 0.2 kg
Vendor - AXAGON
vendpn - CLR-M2L6
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 13 g
