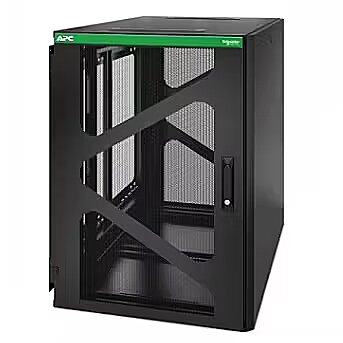

APC NETSHELTER 18U WALLMOUNT RACK ENCLOSURE CABINET SIDE MOUNT UPS DEPTH

Brand - APC
BrandPartCode - AR118SM
Category - Rack Cabinets
Description - APC NETSHELTER 18U WALLMOUNT RACK ENCLOSURE CABINET SIDE MOUNT UPS DEPTH
Features - Back door style - Grilled
Features - Front door style - Grilled
Features - Key lock - Yes
Features - Material - Steel
Features - Maximum weight capacity - 159 kg
Features - Product colour - Black
Features - Rack capacity - 18U
Features - Type - Wall mounted rack
GTIN - 0731304632658
GTIN - 731304632658
Height - 1095.000000
Length - 1130.000000
LongDesc - Product descriptionThis wall rack designed for side mounting is suitable for all kinds of 19 inch IT/network equipment. With 18U/HE internal height and four adjustable rack mount styles, you can easily mount rack-mountable devices up to 835 mm deep. With its wall mounting bracket, it is easy to mount to the wall and the rack, itself 70 kg, offers an additional 158 kg load capacity. Because there is a lockable door at the front and back, the installed equipment is safe but still easily accessible. The side panel that can be completely removed from the inside increases access if desired.Easy installationThis APC patch cabinet is delivered assembled, making this rack easy and quick to install.DimensionsThis rack can be mounted to the wall as a patch, edge or network cabinet using a wall mounting bracket and thus protrudes only 664 mm together (bracket + rack). The rack is 889 mm high and 1037 mm deep. Maximum mounting depth equipment (835mm)Cable and accessory integrationThe bottom and roof of this patch cabinet are pre-treated, see photo top, so that they can be easily adjusted and made suitable as a cable outlet. Two accessory channels are also included, which offer tool-free mounting options for APC PDUs (Power Distribution Units) and cable management accessories.Multiple sizesThe NetShelter WX 800 mm deep wall enclosures are available in three heights: 12, 18, 24U and can all handle a load of 158kg.Rackmount stylesThe vertical rackmount styles are adjustable in steps of 6mm.SecurityMounted network equipment in the rack is safe, because the perforated doors are equipped with a lock.WarrantyThe standard factory warranty is five years.The NetShelter UPS Depth Wall-Mount Enclosure offers reliability, durability, and ease-of-deployment for single-phase equipment mounted on the wall Available in 12U, 18U, and 24U sizes, NetShelter UPS Depth Wall-Mount Enclosure is designed with an 800mm depth to accommodate a wide range of single-phase applications Bracket-style mounting ensures quick and easy deployment Low-profile side-mount configuration ensures the enclosure extends less than 25 inches from the wall, a perfect solution for locations with limited space Compatible with APC's NetBotz security solutions for remote access, video surveillance, and environmental monitoring (sold separately) Maximum load capacity of 350lb ensures durability for heavy-duty equipment Both top and bottom feature cable access openings to route, secure, and organize cables Accessory channels included to provide toolless mounting capabilities for rack PDU's and cable management accessories Ideal for diverse segments such as retail, healthcare, distribution centers, and education, providing an efficient solution for deploying IT equipment for edge computing applications 19 rack width, ships fully-assembled, ventilated, backed by 5-year APC warranty
LongProductName - APC NetShelter WX AR118SM - 19inch Wall Patch Cabinet, 18U/HE, 800MM Deep, Side Mount, Mounted
LongSummaryDescription - APC NetShelter WX AR118SM - 19inch Wall Patch Cabinet, 18U/HE, 800MM Deep, Side Mount, Mounted. Type: Wall mounted rack, Rack capacity: 18U, Maximum weight capacity: 159 kg, Key lock. Weight: 69.5 kg. Product colour: Black
Manufacturer - APC
ManufacturerPartNumber - AR118SM
Packaging data - Package depth - 850 mm
Packaging data - Package height - 1070 mm
Packaging data - Package weight - 104 kg
Packaging data - Package width - 1320 mm
PeriodofWarranty - 5 Y
ProductName - APC NetShelter WX AR118SM - 19inch Wall Patch Cabinet, 18U/HE, 800MM Deep, Side Mount, Mounted
Rack height (units) - 18
ShortSummaryDescription - APC NetShelter WX AR118SM - 19inch Wall Patch Cabinet, 18U/HE, 800MM Deep, Side Mount, Mounted, Wall mounted rack, 18U, 159 kg, Key lock, 69.5 kg, Black
Technical details - Compliance certificates - UL, cUL, cULus
Technical details - Warranty period - 5 year(s)
Title - APC NetShelter WX AR118SM - 19inch Wall Patch Cabinet, 18U/HE, 800MM Deep, Side Mount, Mounted
URL - https://www.apc.com/
WarrantyInfo - 5 years
Weight - 102.000000
Weight & dimensions - Depth - 1037 mm
Weight & dimensions - Height - 889 mm
Weight & dimensions - Size (imperial) - 48.3 cm (19")
Weight & dimensions - Weight - 69.5 kg
Weight & dimensions - Width - 600 mm
Width - 770.000000
