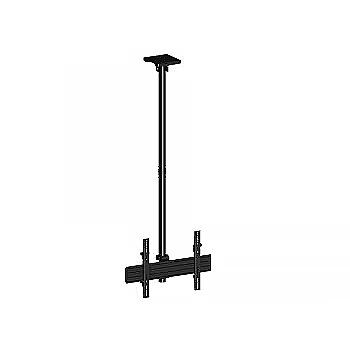

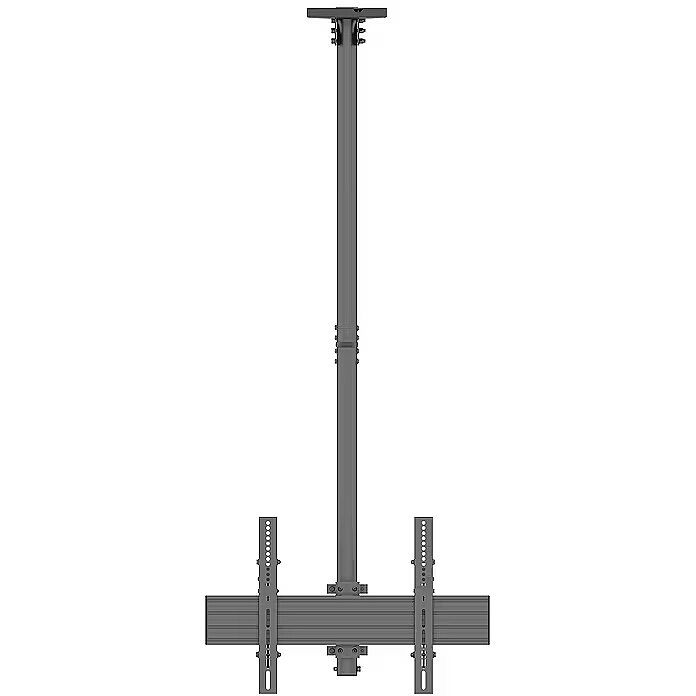

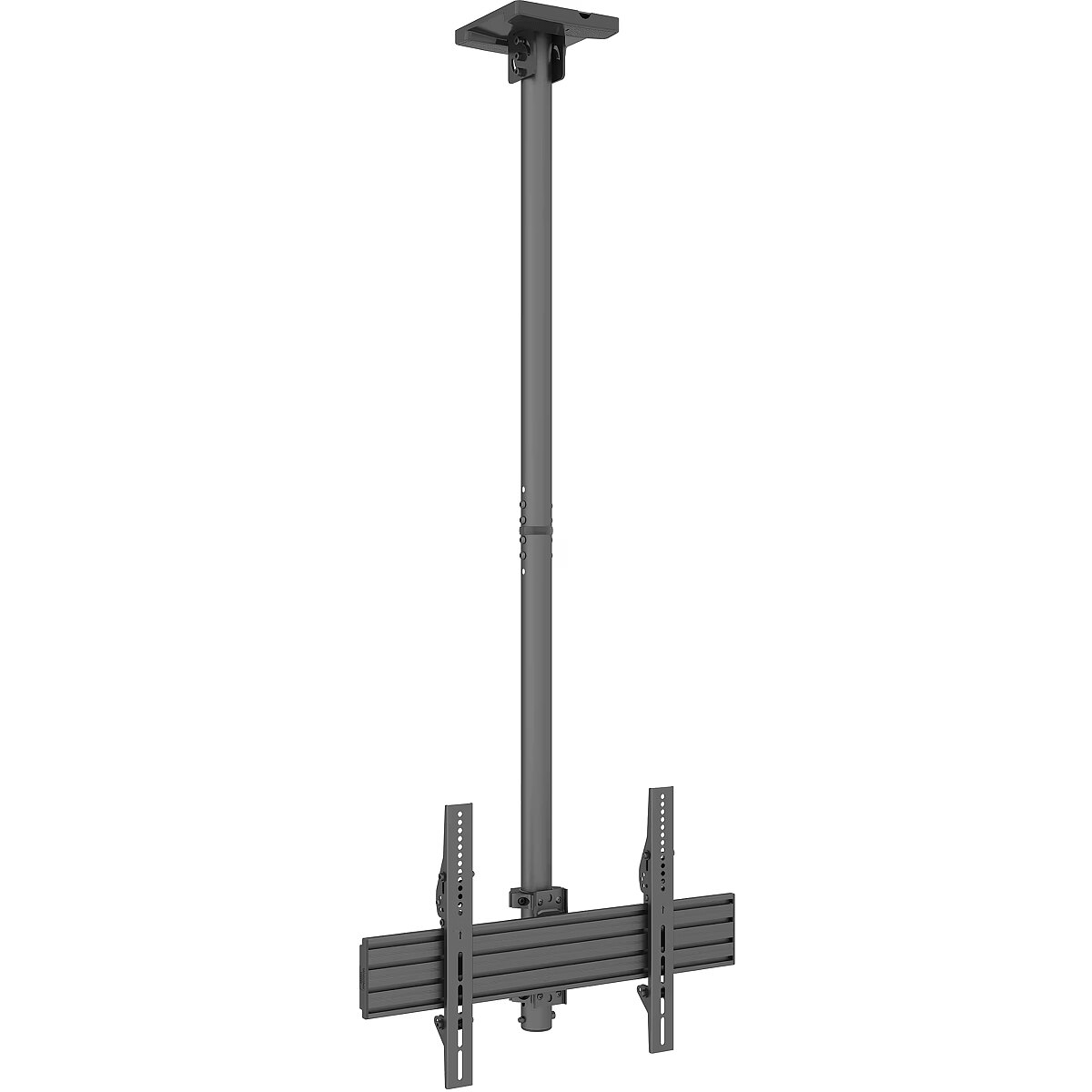

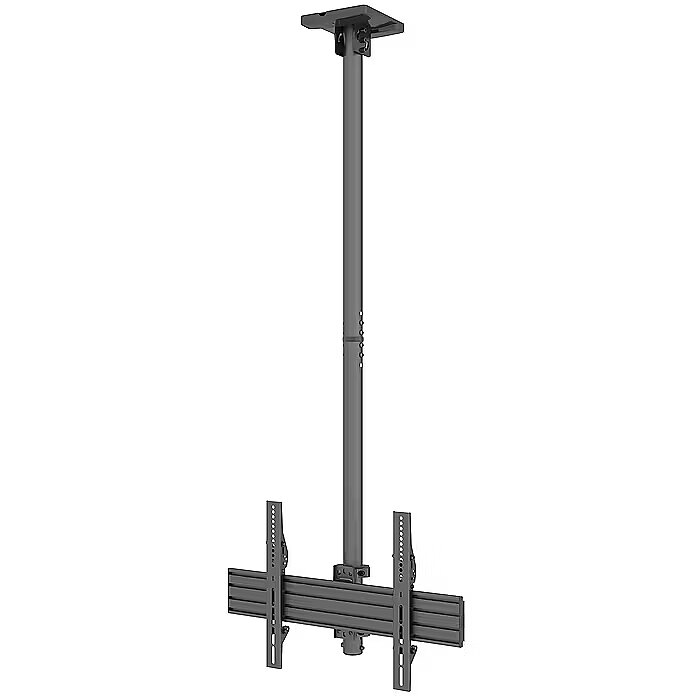

Multibrackets MB CEILING MOUNT PRO 1U

Brand - Multibrackets
BrandPartCode - 3446
Category - Signage Display Mounts
Colour of product - Black
Description - MB CEILING MOUNT PRO 1U
Design - Certification - CE
Design - Housing material - Aluminium, Steel
Design - Product colour - Black
Ergonomics - Angle of rotation - 8°

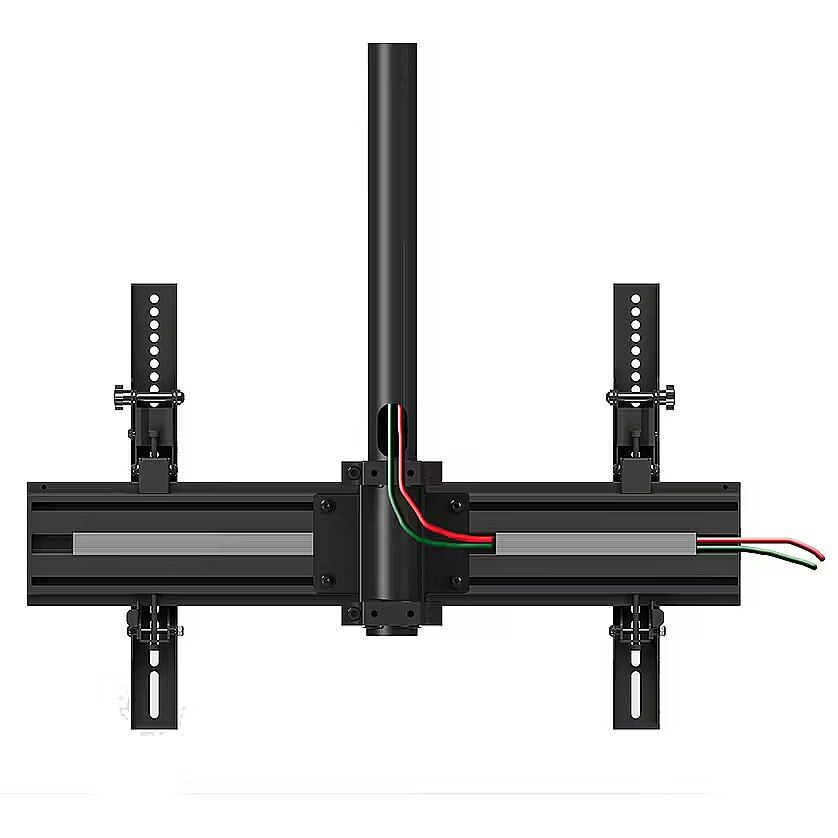

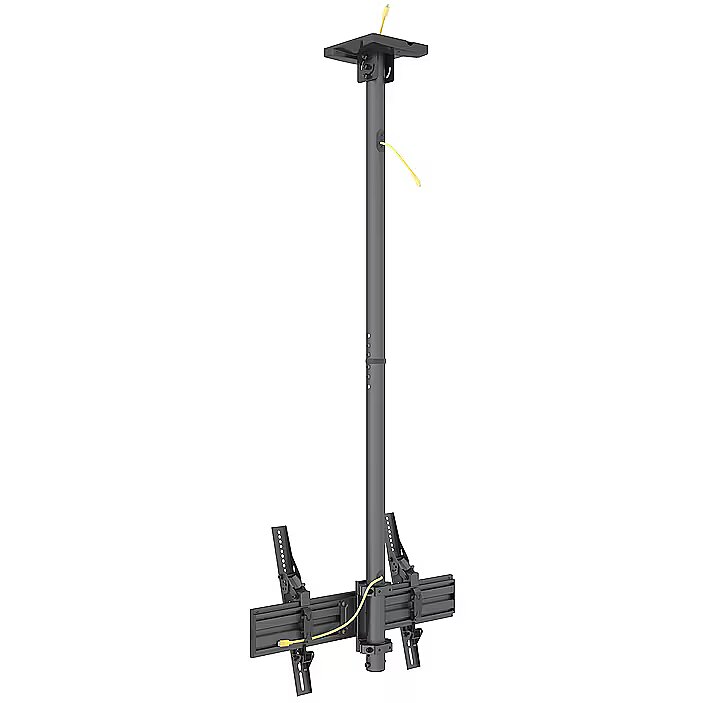

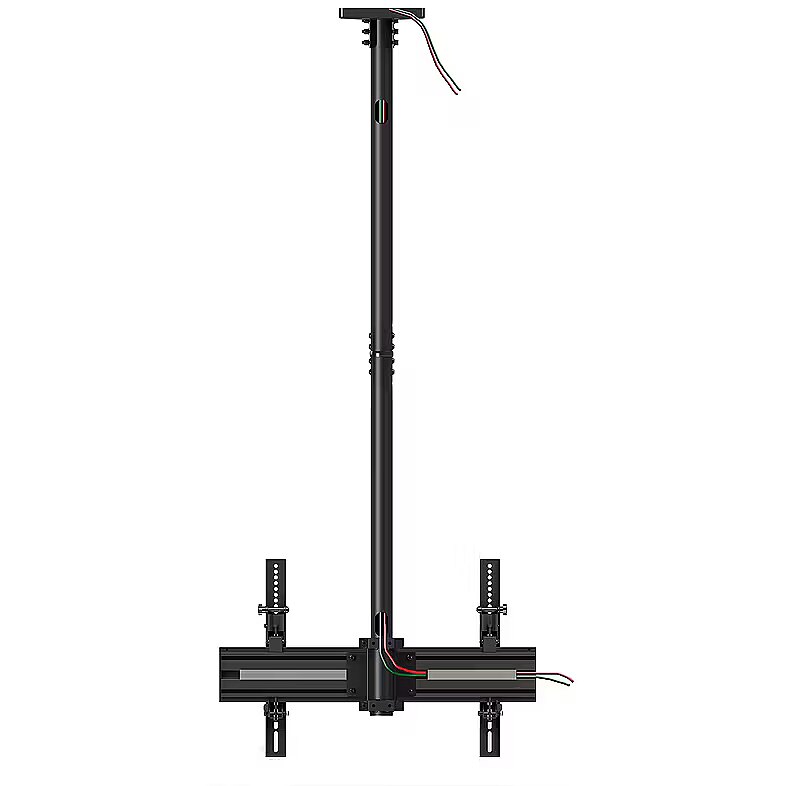

Ergonomics - Cable management - Yes
Ergonomics - Ceiling mounting tube length (max) - 155 cm
Ergonomics - Ceiling mounting tube length (min) - 58 cm

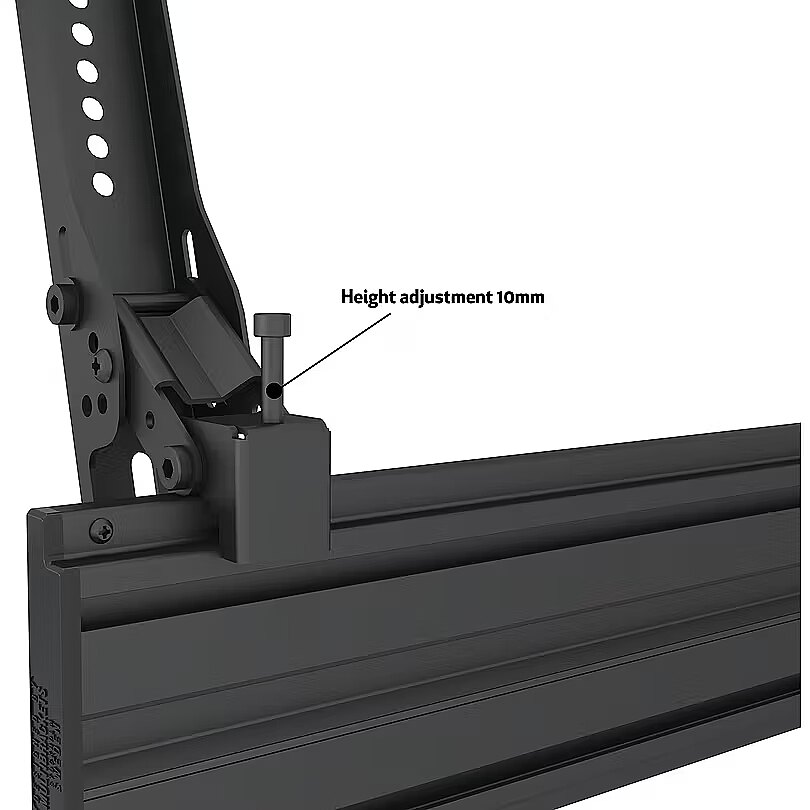

Ergonomics - Height adjustment - Yes

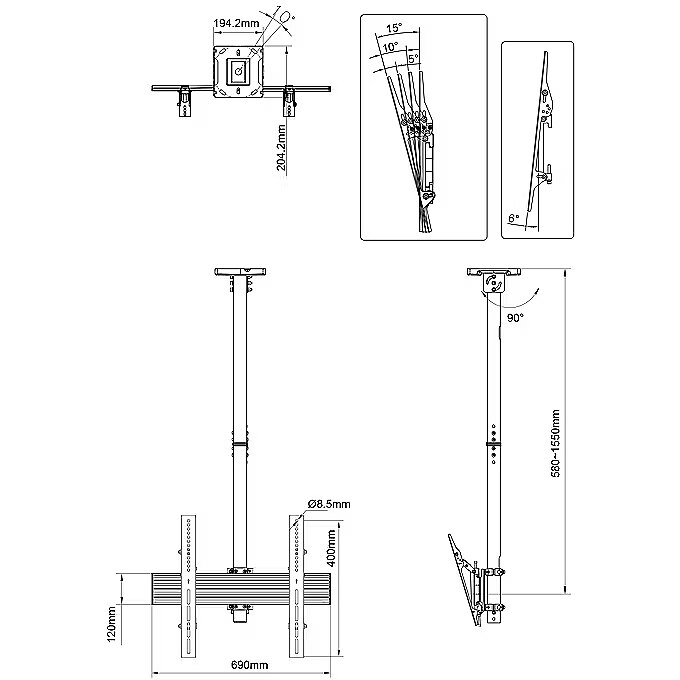

Ergonomics - Height adjustment range - 580 - 1550 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Swivel angle - 360°
Ergonomics - Tilt angle range - 0 - 15°
GTIN - 7350073733446
Height - 155.000000
Length - 820.000000
Logistics data - Products per shipping (inner) case - 1 pc(s)
Logistics data - Shipping (inner) case gross weight - 10.1 kg
Logistics data - Shipping (inner) case height - 14 cm
Logistics data - Shipping (inner) case length - 82 cm
Logistics data - Shipping (inner) case width - 20 cm

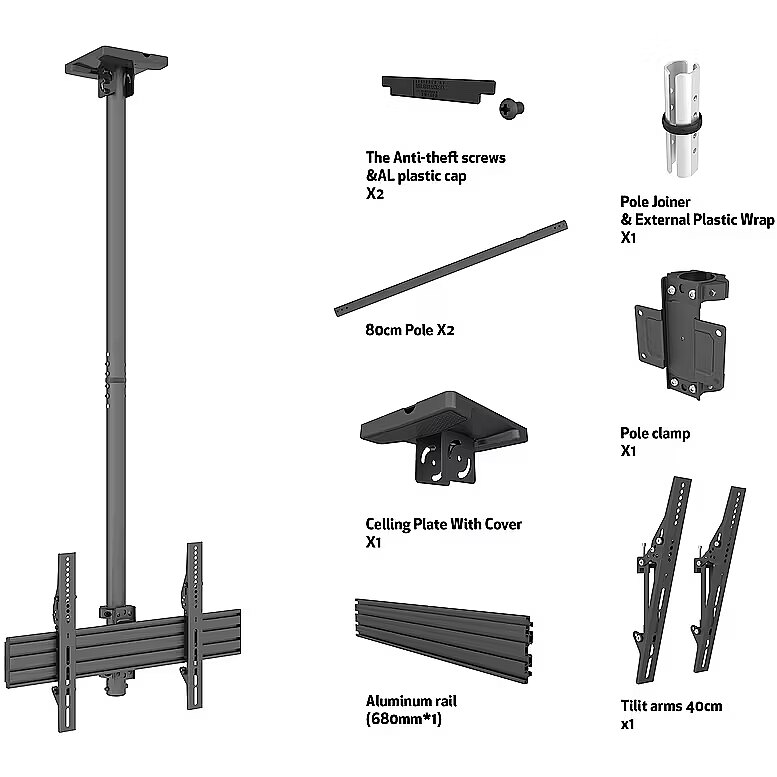

LongDesc - Multibrackets Pro Series M Ceiling Mount Pro MBC1U is our innovative - ready to be installed Single-Display Ceiling Mount. The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye. With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow. Pro Series can be tailored to fit your exact needs.Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

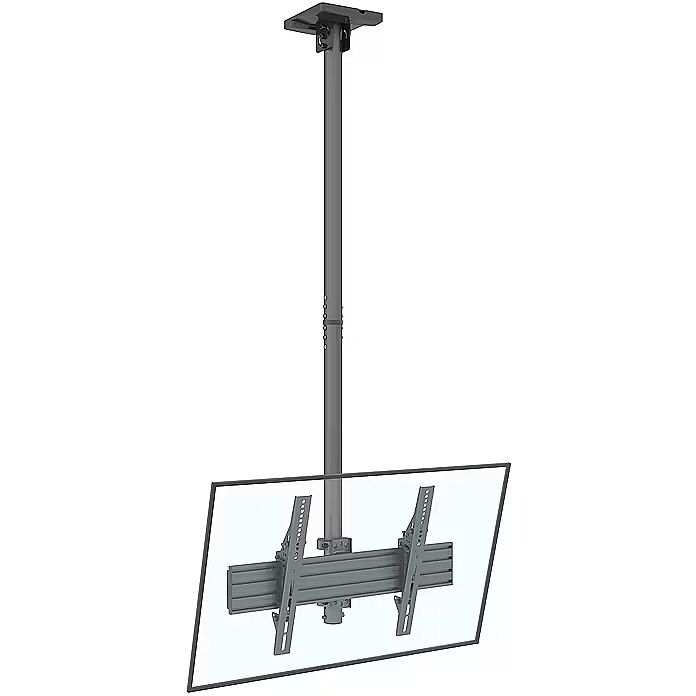

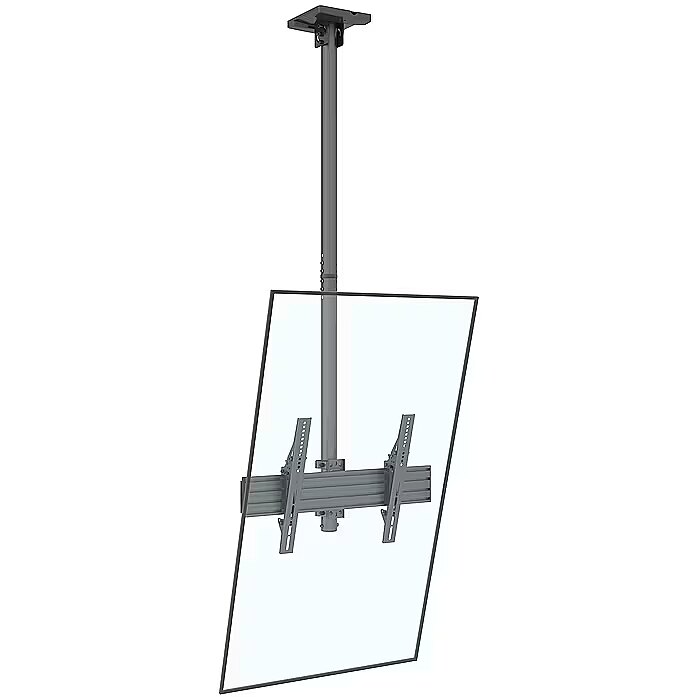

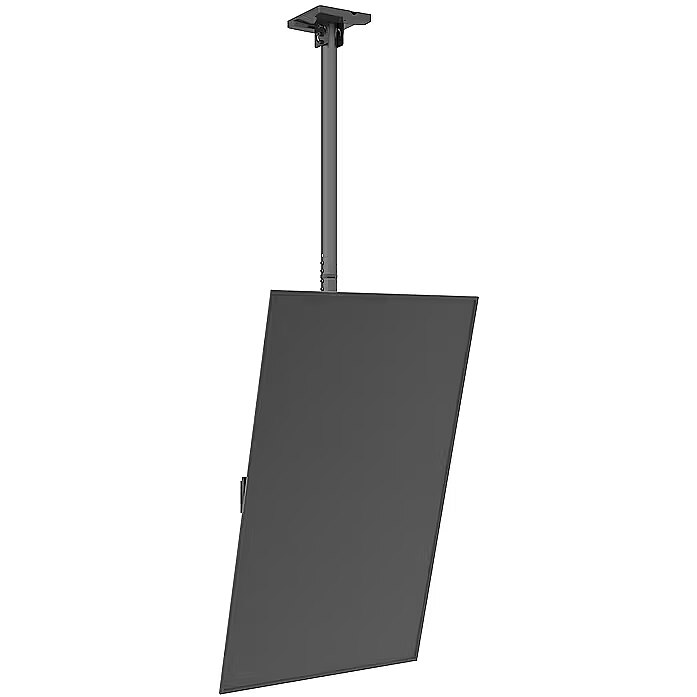

LongProductName - M Ceiling Mount Pro MBC1U - Ceiling mount for LCD display, steel, 1.5m length, 1 screen, single side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black- TUV
LongSummaryDescription - Multibrackets M Ceiling Mount Pro MBC1U. Maximum weight capacity: 50 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Height adjustment range: 580 - 1550 mm, Tilt angle range: 0 - 15°, Swivel angle: 360°. Product colour: Black
Manufacturer - Multibrackets
ManufacturerPartNumber - 7350073733446
Maximum weight (capacity), kg - 50
Mounting - Maximum screen size - 165.1 cm (65")
Mounting - Maximum VESA mount - 800 x 600 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 101.6 cm (40")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,600 x 400,800 x 600
Packaging data - Package depth - 820 mm
Packaging data - Package height - 140 mm
Packaging data - Package weight - 9.4 kg
Packaging data - Package width - 200 mm
Packaging data - Quantity per pack - 1 pc(s)
PeriodofWarranty - 5 Y
ProductName - M Ceiling Mount Pro MBC1U
Screen size compatibility, " - 40-65
ShortSummaryDescription - Multibrackets M Ceiling Mount Pro MBC1U, 50 kg, 101.6 cm (40"), 165.1 cm (65"), 100 x 100 mm, 800 x 600 mm, 580 - 1550 mm
Stand/mount type - Ceiling
Technical details - Metal packaging weight - 0 g
Technical details - Paper/cardboard packaging weight - 1.3 kg
Technical details - Plastic packaging weight - 100 g
Title - Multibrackets M Ceiling Mount Pro MBC1U
URL - https://multibrackets.com/3446
VESA-standard, mm - 100 x 100
VESA-standard, mm - 100 x 200
VESA-standard, mm - 200 x 100
VESA-standard, mm - 200 x 200
VESA-standard, mm - 300 x 300
VESA-standard, mm - 400 x 200
VESA-standard, mm - 400 x 400
VESA-standard, mm - 600 x 400
WarrantyInfo - 5 years
Weight - 9.660000
Weight & dimensions - Aluminium content weight - 1.6 kg
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 1780 mm
Weight & dimensions - Other metals content weight - 0 g
Weight & dimensions - Steel content weight - 8 kg
Weight & dimensions - Weight - 8 kg
Weight & dimensions - Width - 690 mm
Weight, kg - 8.5
Wheels - No
Width - 200.000000
