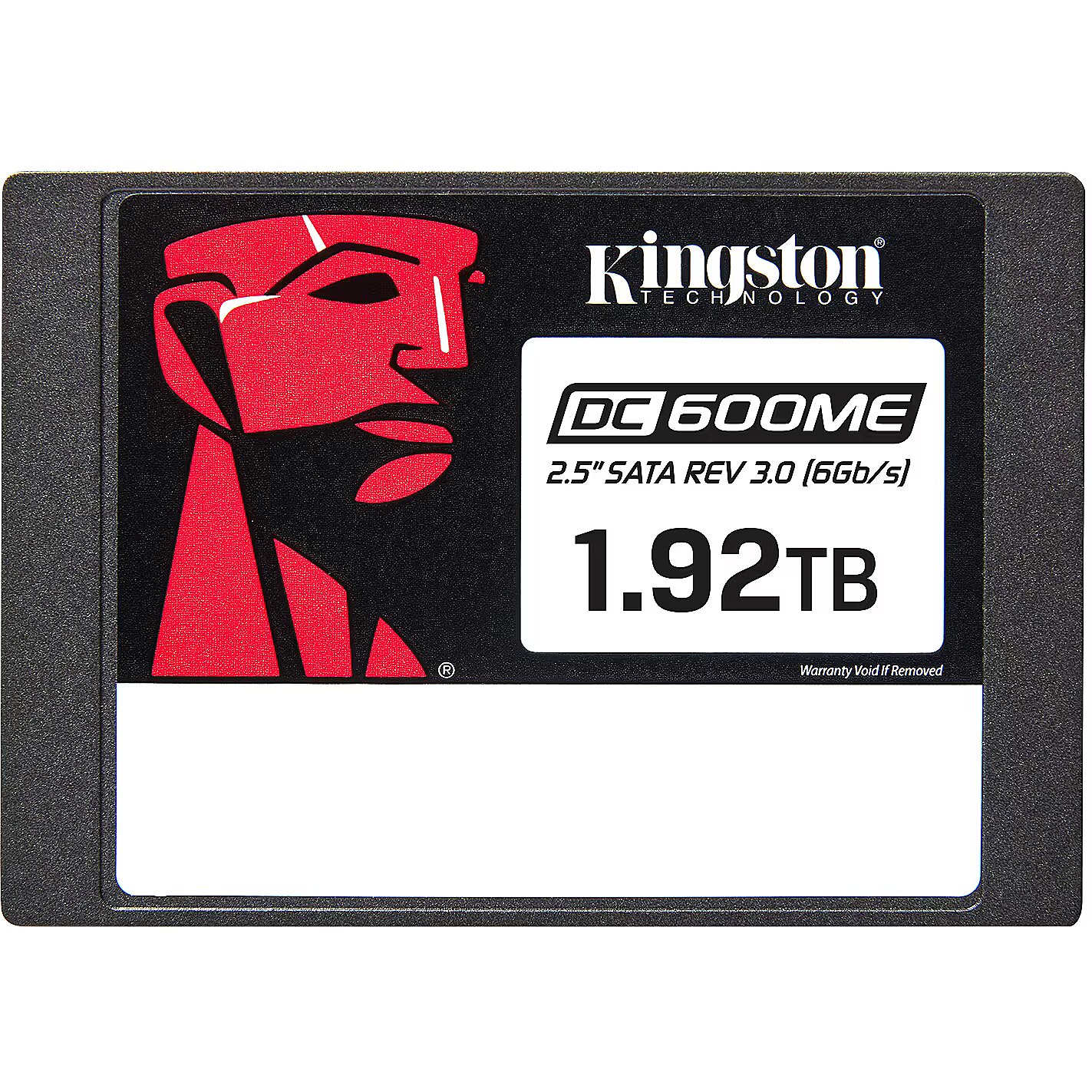

Kingston DC600ME, 1.92TB

ARTIKEL1 - 1920G DC600ME 2.5IN SATA SSD
ARTIKEL2 - ENTERPRISE (MIXED-USE) TCG OPAL
Brand - Kingston Technology
BrandPartCode - SEDC600ME/1920G
Breite - 0
Category - Internal Solid State Drives
Category Code - SFM
CnCode - 84717098
Component for Features - Server/workstation
Country of origin Logistics data - China/Taiwan
Data transfer rate Features - 6 Gbit/s
Depth Weight & dimensions - 100.1 mm
Description - Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers. DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards. Capacities available from 480GB–7.68TB* to meet your data storage requirements. Designed for data center environments Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria. Hardware-based PLP Power loss capacitors to protect user data against unexpected power loss and enhance performance. Delivers excellent quality of service (QoS)* Optimised performance predictability to meet service-level agreements (SLAs). AES 256-bit Encryption with DC600ME Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME. Capacities up to 7.68TB Upgrade and manage storage with capacities up to 7.68TB.* Designed for data center environments Hardware-based power loss protection Latency and IOPS consistency AES 256-bit encryption with DC600ME Capacities of up to 7.68TB* *Some of the listed capacity on a flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide. ** Quality of service (QoS) of an SSD refers to the consistency and predictability of latency (response time) and IOPS (IOs per second) performance while servicing a read/write workload. QoS metrics demonstrate that, given a worst-case workload tested over a period of time, an SSD’s latency and IOPS profiles stay within a specified range without having unexpected outliers causing a sudden drop in application performance. *** Measurement taken once the workload has reached a steady state but including all background activities required for normal operation and data reliability. **** Based on 1.92TB capacity. *****Workload based on FIO, random aligned 4KB QD=1 workload. Quality of service is measured as the time taken for 99.999 percentile of commands to finish the round trip from host to drive and to host. Typical latency is measured as the time taken for 99.9 percentile of commands to finish the round trip from host to drive and to host. ****** Total bytes written (TBW) is derived from the JEDEC Enterprise Workload (JESD219A).
dimensionalWeight - 37
EANCode - 0740617347326
Features - Component for - Server/workstation
Features - Data transfer rate - 6 Gbit/s
Features - H/W PLP function - Yes
Features - Hardware encryption - Yes
Features - Hot-Plug support - Yes
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D TLC NAND
Features - Random read (4KB) - 94000 IOPS
Features - Random write (4KB) - 78000 IOPS
Features - Read latency - 130 µs
Features - Read speed - 560 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 1.92 TB
Features - SSD form factor - 2.5"
Features - Target workload - Mixed Use (MU)
Features - TBW rating - 3504
Features - Use conditions - Server/Enterprise
Features - Write latency - 70 µs
Features - Write speed - 530 MB/s
Gewicht - 0
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0740617347326
GTIN - 740617347326
H/W PLP function Features - Yes
Hardware encryption Features - Yes
Height Weight & dimensions - 7 mm
HERSTELLER - KINGSTON
Hoehe - 0
Hot-Plug support Features - Yes
HSTNUMMER - SEDC600ME/1920G
Interface Features - Serial ATA III
Laenge - 0
Logistics data - Country of origin - China, Taiwan
Logistics data - Master (outer) case gross weight - 989.98 g
Logistics data - Master (outer) case height - 69.8 mm
Logistics data - Master (outer) case length - 203.2 mm
Logistics data - Master (outer) case width - 135.9 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers. DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards. Capacities available from 480GB–7.68TB* to meet your data storage requirements.Designed for data center environments Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.Hardware-based PLPPower loss capacitors to protect user data against unexpected power loss and enhance performance.Delivers excellent quality of service (QoS)*Optimised performance predictability to meetservice-level agreements (SLAs).AES 256-bit Encryption with DC600ME Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME. Capacities up to 7.68TB Upgrade and manage storage with capacities up to 7.68TB.*
LongProductName - 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD
LongSummaryDescription - Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD. SSD capacity: 1.92 TB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Master (outer) case gross weight Logistics data - 989.98 g
Master (outer) case height Logistics data - 69.8 mm
Master (outer) case length Logistics data - 203.2 mm
Master (outer) case width Logistics data - 135.9 mm
Mean time between failures (MTBF) Features - 2000000 h
Memory type Features - 3D TLC NAND
Non-operating vibration Operational conditions - 20 G
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operating vibration Operational conditions - 2.17 G
Operational conditions - Non-operating vibration - 20 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 2.17 G
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Package depth Packaging data - 9.14 mm
Package height Packaging data - 184.2 mm
Package type Packaging data - Hanging box
Package weight Packaging data - 91.2 g
Package width Packaging data - 129.5 mm
Packaging data - Package depth - 9.14 mm
Packaging data - Package height - 184.2 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 91.2 g
Packaging data - Package width - 129.5 mm
Power - Power consumption (average) - 1.45 W
Power - Power consumption (idle) - 1.3 W
Power - Power consumption (read) - 1.6 W
Power - Power consumption (write) - 3.6 W
Power consumption (average) Power - 1.45 W
Power consumption (idle) Power - 1.3 W
Power consumption (read) Power - 1.6 W
Power consumption (write) Power - 3.6 W
producerCode - SEDC600ME/1920G
ProductName - 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD
productName - Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD
productSize - Normal
Products per master (outer) case Logistics data - 10 pc(s)
Random read (4KB) Features - 94000 IOPS
Random write (4KB) Features - 78000 IOPS
Read latency Features - 130 µs
Read speed Features - 560 MB/s
S.M.A.R.T. support Features - Yes
Safety warning - Warnings - Do not open the appliance casing, risk of damage.
Safety warning - Warnings - In the event of damage, do not dispose of in the normal rubbish bin, contact the relevant electronics disposal unit.
Safety warning - Warnings - Protect from moisture and extreme temperatures.
Security algorithms Features - 256-bit AES
ShortSummaryDescription - Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD, 1.92 TB, 2.5", 560 MB/s, 6 Gbit/s
sizeX - 182
sizeY - 130
sizeZ - 8
SSD capacity Features - 1.92 TB
SSD form factor Features - 2.5"
Stck_Kart - 0
Stck_Pal - 0
Storage temperature (T-T) Operational conditions - -40 - 85 °C
Storno - Y
Summary - Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD. SSD capacity: 1.92 TB, SSD form factor: 2.5", Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: Server/workstation
Target workload Features - Mixed Use (MU)
TBW rating Features - 3504
Title - Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD
Unit Box Height - 0.005
Unit Box Length - 0.181
Unit Box Width - 0.129
Unit Calculated Volume - 0.0001167 cubm
Unit Calculated Weight - 0.09 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.kingston.com/
Use conditions Features - Server/Enterprise
Vendor Homepage - https://www.kingston.com/
Warranty - 60L months
WarrantyInfo - Limited 5-year warranty with free technical support
warrantyLength - 60
warrantyType - G
weight - 80
Weight & dimensions - Depth - 100.1 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 69 g
Weight & dimensions - Width - 69.8 mm
Weight Weight & dimensions - 69 g
Width Weight & dimensions - 69.8 mm
Write latency Features - 70 µs
Write speed Features - 530 MB/s
