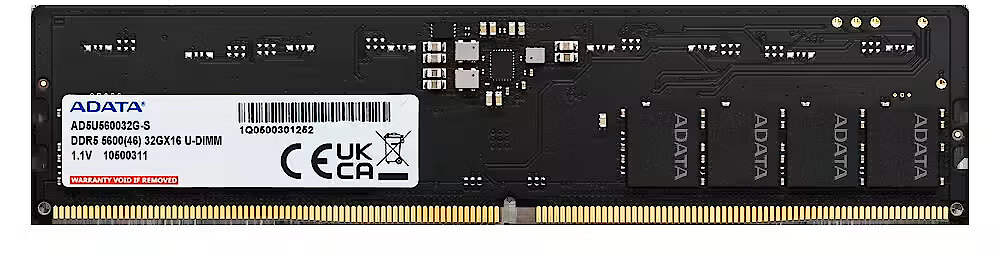

ADATA Premier, DDR5, 32GB, 5600MT/s, CL46, Single stick

Brand - ADATA
BrandPartCode - AD5U560032G-S
CAS Latency - CL46
Category - Memory Modules
Description - DDR5 5600 U-DIMM Memory Module Higher Frequencies On-Board Power Management IC Higher Capacities Error Correcting Code Technology Works with the Latest AMD and Intel Platforms Higher Frequencies
The DDR5-5600 U-DIMM memory module delivers blazing-fast frequencies of up to 5600 MHz, a huge leap over the maximum frequency of DDR4 modules (3200 MHz).
Improved Power Efficiency
This next-generation memory module operates at a voltage of just 1.1V, making it 8% more energy-efficient than DDR4 modules. It also features an on-board Power Management IC (PMIC) for improved power stability.
Double Capacity
This memory module's architecture supports more memory banks and banks. More bank groups can fit within the same module footprint, doubling the capabilities of DDR4 modules for significantly higher capacities.
Greater Stability
Using Error Correcting Code (ECC) technology, this module provides automatic error correction in real time. In addition to significantly reducing the CPU's computational load, it also provides greater stability and reliability for enterprise-class computers.
Designation - CE+WEEE
dimension depth - 5 mm
dimension height - 170 mm
dimension weight - 30 g
dimension width - 55 mm
ean - 4711085939296
ECC support - No
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 46
Features - Component for - Laptop
Features - Internal memory - 32 GB
Features - Internal memory type - DDR5
Features - Memory clock speed - 5600 MHz
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 32 GB
Features - Memory voltage - 1.1 V
Features - Module configuration - 2048M x 8
Features - On-Die ECC - Yes
GTIN - 4711085939296
guarantee - 0
guarantee_type - perpetual
LongDesc - Higher FrequenciesThe DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).More Energy-EfficientThis next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.Capacity DoubledThis memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.Improved StabilityWith error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.QuikTips: DDR5 vs DDR4 - AppearanceDDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.QuikTips: DDR5 vs DDR4 - Chip ArchitectureDDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.QuikTips: DDR5 vs DDR4 - PerformanceThe biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.
LongProductName - 32 GB, DDR5, 5600 MHz, 288-pin, U-DIMM, 1.1 V
LongSummaryDescription - ADATA Premier . Component for: Laptop, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46
Memory bus frequency - 5600 MHz
Memory type - DDR5
name - Premier DDR5 5600 DIMM 32GB CL46 SingleTray
Number of memory cards in set - 1
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Other features - Operating temperature: 0 to 85°C
Packaging data - Package depth - 170 mm
Packaging data - Package height - 9 mm

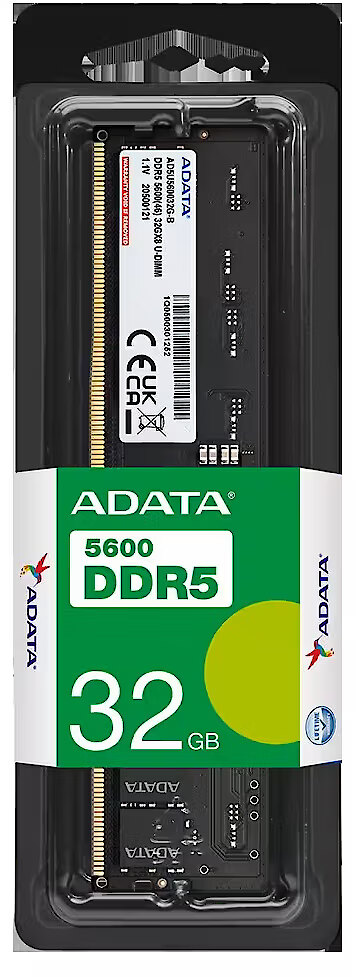

Packaging data - Package type - Tray
Packaging data - Package weight - 26.5 g
Packaging data - Package width - 55 mm
producer - Adata
ProductName - Premier
Radiator - No
ShortSummaryDescription - ADATA Premier , 32 GB, 1 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM
Title - ADATA Premier memory module 32 GB 1 x 32 GB DDR5 288-pin DIMM
Total memory capacity - 32 GB
URL - https://www.adata.com/en/consumer/dram-module-ddr5-5600-u-dimm?tab=description
vendpn - AD5U560032G-S
WarrantyInfo - Limited lifetime
