ARTIKEL1 - 64GB DDR5-5600MT/S ECC REG CL46
ARTIKEL2 - DIMM 2RX4 HYNIX A RENESAS
Brand - Kingston Technology
BrandPartCode - KSM56R46BD4PMI-64HAI
Breite - 0.05
CAS Latency - CL46
Category - Memory Modules

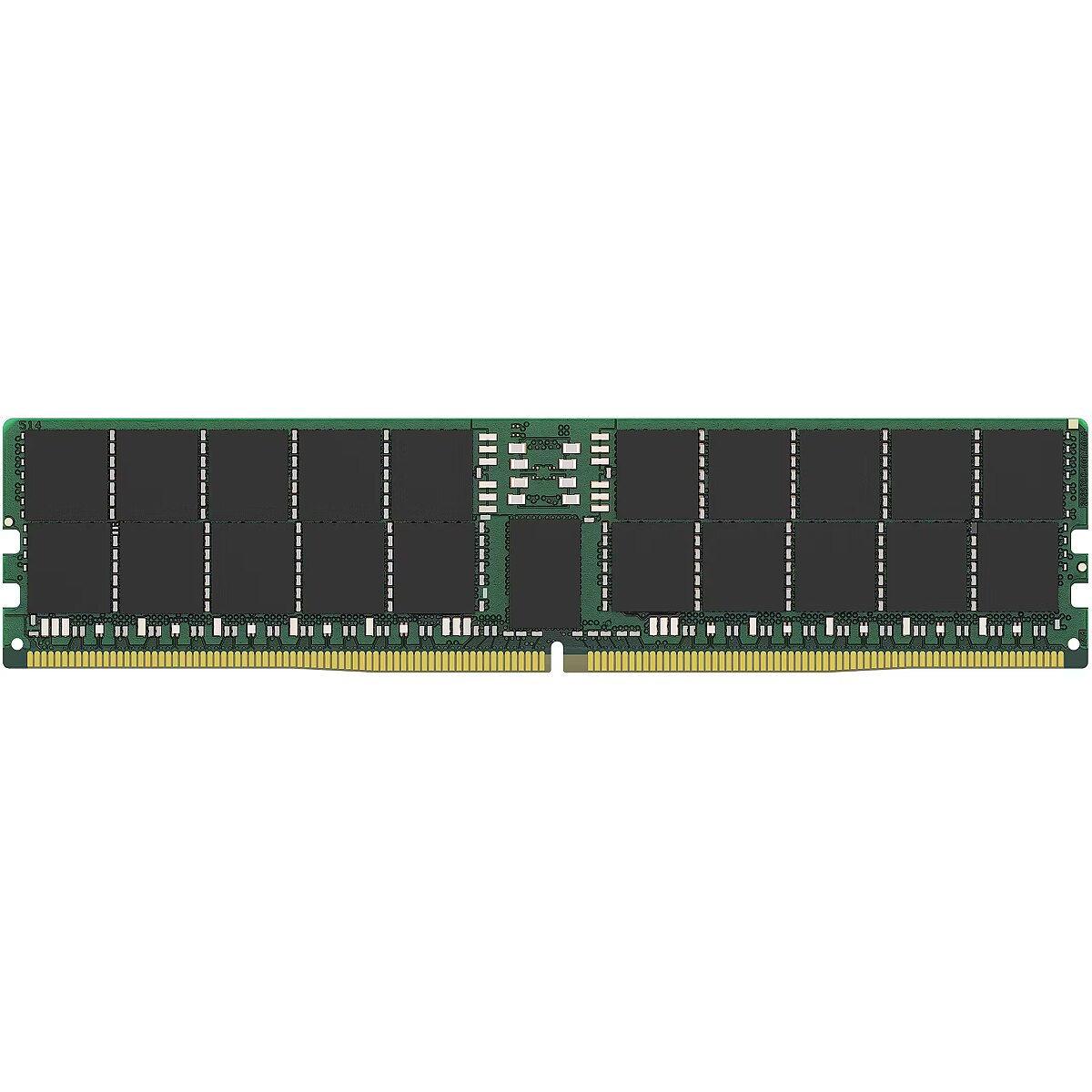

Description - Kingston's KSM56R46BD4PMI-64HAI is a 8G x 80-bit (64GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Designation - CE+WEEE
dimensionalWeight - 13
dimension depth - 10 mm
dimension height - 170 mm
dimension weight - 20 g
dimension width - 50 mm
ean - 740617337198
EANCode - 0740617337198
ECC support - Yes
Features - Buffered memory type - Registered (buffered)
Features - CAS latency - 46
Features - Component for - PC/Server
Features - Cooling type - Heatsink
Features - ECC - Yes
Features - Internal memory - 64 GB
Features - Internal memory type - DDR5
Features - JEDEC standard - Yes
Features - Lead plating - Gold
Features - Memory data transfer rate - 5600 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 64 GB
Features - Memory ranking - 2
Features - Memory voltage - 1.1 V
Features - Module configuration - 8192M x 80
Features - On-Die ECC - Yes
Features - Programming power voltage (VPP) - 1.8 V
Features - Refresh row cycle time - 295 ns
Features - Row active time - 32 ns
Features - Row cycle time - 48 ns
Features - Row Precharge Time (TRP) - 16
Features - SPD profile - Yes
Gewicht - 0.04
GRUPPE1 - Memory & Processors
GRUPPE2 - Generic Memory
GTIN - 0740617337198
GTIN - 740617337198
guarantee - 0
guarantee_type - perpetual
HERSTELLER - KINGSTON
Hoehe - 0.01
HSTNUMMER - KSM56R46BD4PMI-64HAI
Laenge - 0.17
LongDesc -
LongProductName - 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin
LongSummaryDescription - Kingston Technology 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin. Component for: PC/Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC
Memory bus frequency - 5600 MHz
Memory type - DDR5
name - Memory module DDR5 64GB/5600(1*64) ECC Reg CL46 2Rx4 HynixA
Number of memory cards in set - 1
Operational conditions - Operating temperature (T-T) - 0 - 95 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
Other features -
Other features - Doesn't contain - Halogen
producer - Kingston
producerCode - KSM56R46BD4PMI-64HAI
ProductName - 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin
productName - Kingston Technology 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin
productSize - Normal
Radiator - No
ShortSummaryDescription - Kingston Technology 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin, 64 GB, 1 x 64 GB, DDR5, 288-pin DIMM
sizeX - 161
sizeY - 9
sizeZ - 48
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Sustainability - Compliance certificates - RoHS
Sustainability - Doesn't contain - Halogen
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - RoHS
Title - Kingston Technology 64GB, DDR5, 5600MT/s, ECC, Registered, DIMM, CL46, x80, 2RX4, 1.1V, 288-pin
Total memory capacity - 64 GB
URL - https://www.kingston.com/unitedkingdom/en/memory/search?partid=KSM56R46BD4PMI-64HAI
vendpn - KSM56R46BD4PMI-64HAI
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 34
Weight & dimensions - Height - 31.2 mm
Weight & dimensions - Width - 133.3 mm
