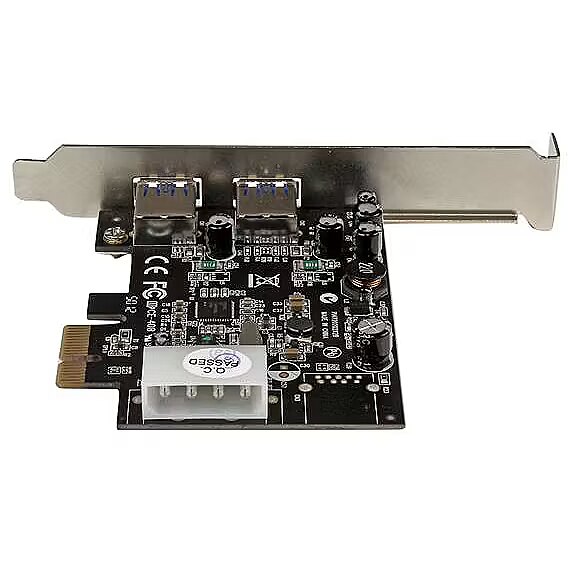

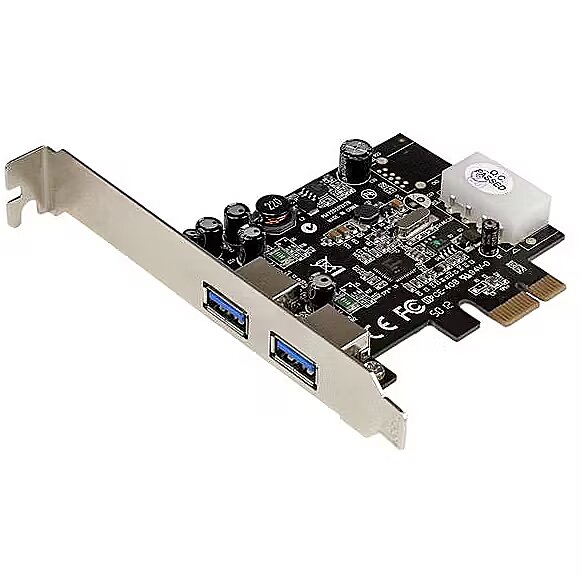

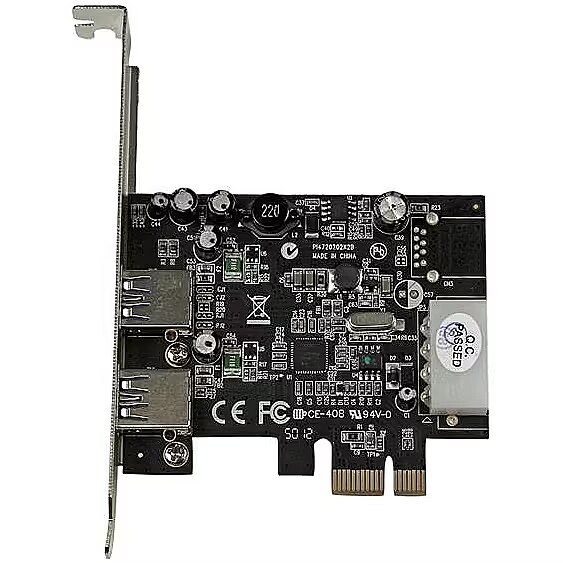

Startech 2 PORT PCIE USB 3 CARD W/ UASP .

ARTIKEL1 - 2 PORT PCIE USB 3 CARD W/ UASP
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - PEXUSB3S25
Category - Interface Cards/Adapters
Design - Certification - CE, FCC
Design - Internal - Yes
Design - Maximum cable length - 3 m
EANCode - 0065030854603
Features - Chipset - Renesas / NEC - µPD720202
Features - Data transfer rate (max) - 5 Gbit/s
Features - UASP support - Yes
GRUPPE1 - Network
GRUPPE2 - USB Hub / Controller
GTIN - 0042111892686
GTIN - 042111892686
GTIN - 0065030854603
GTIN - 065030854603
HERSTELLER - STARTECH
HSTNUMMER - PEXUSB3S25
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Add 2 SuperSpeed USB 3.0 (USB 3.2 Gen 1) ports to your PCI Express-enabled PCThe PEXUSB3S25 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0).Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.Backed by a StarTech.com 2-year warranty and free lifetime technical support.Improved Performance with UASPUASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.The StarTech.com Advantage
LongProductName - StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - Dual Port USB 3 PCIe Controller
LongSummaryDescription - StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height / Low-profile. Maximum cable length: 3 m, Certification: CE, FCC. Chipset: Renesas / NEC - µPD720202, Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 18 mm, Depth: 82 mm, Height: 120 mm
Operational conditions - Operating relative humidity (H-H) - 5 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C

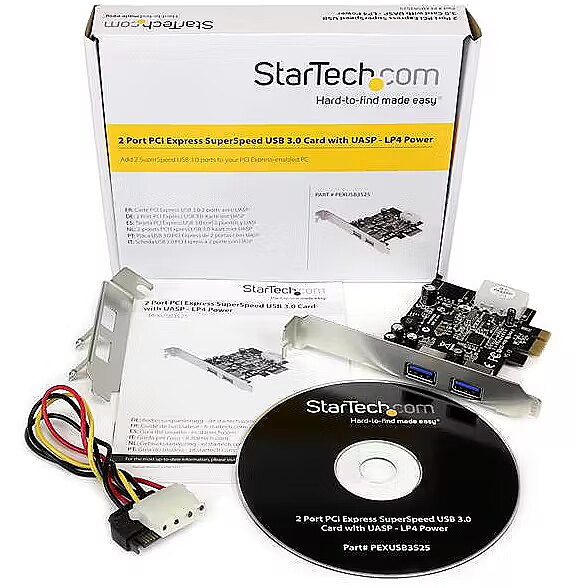

Packaging data - Cables included - SATA
Packaging data - Drivers included - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 171 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 154 g
Packaging data - Package width - 143 mm
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - USB 3.2 Gen 1 (3.1 Gen 1)

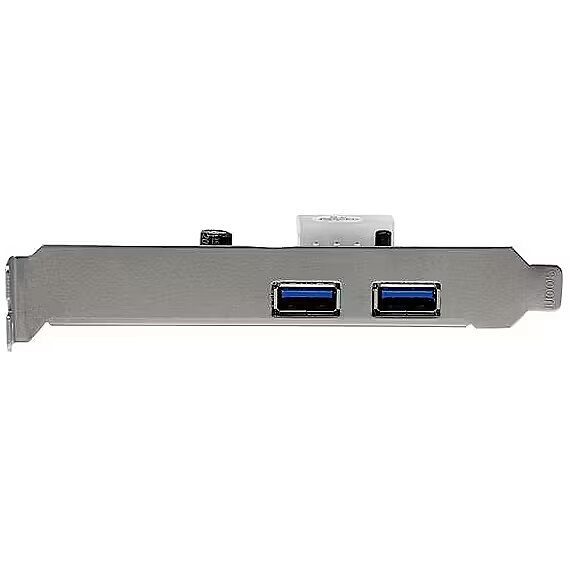

Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
ProductName - 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power
ShortSummaryDescription - StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Full-height / Low-profile, PCIe 2.0, 3 m, CE, FCC
Stck_Kart - 80
Stck_Pal - 20
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power
URL - https://se.startech.com/product/PEXUSB3S25
WarrantyInfo - 2 Year Warranty
Weight & dimensions - Depth - 82 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Weight - 51 g
Weight & dimensions - Width - 18 mm
