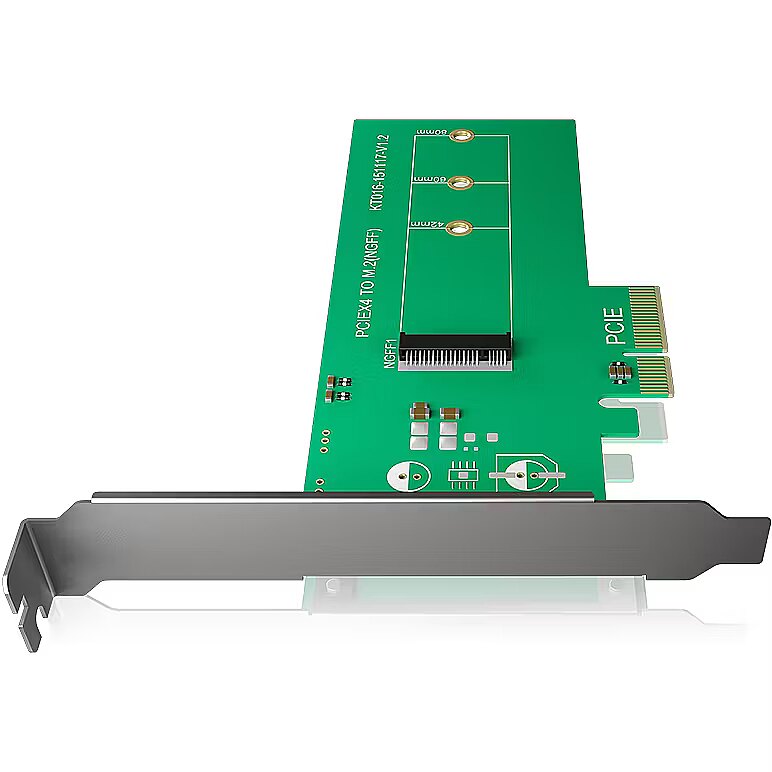

Raidsonic Icy Box IB-PCI208 PCIe-Card, M.2 PCIe SSD to PCIe 3.0 x4 Host

Brand - ICY BOX
BrandPartCode - 60092
Category - Interface Cards/Adapters
Code - IB-PCI208
Design - Country of origin - China
Design - Internal - Yes
Design - Product colour - Green
EAN - 4250078164333
Features - Data transfer rate (max) - 32 Gbit/s
Gross weight - 0.105 kg
GTIN - 4250078164333
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Master (outer) case gross weight - 6.2 kg
Logistics data - Master (outer) case height - 160 mm
Logistics data - Master (outer) case length - 510 mm
Logistics data - Master (outer) case width - 410 mm
Logistics data - Products per master (outer) case - 50 pc(s)
LongDesc - The little ones are the fast onesThe IB-PCI208 converts M.2 (NGFF) PCIe to PCIe x4, thereby allowing the connection of fast and ultra-compact M.2 cards to an existing system. The PCI bracket also grants firm hold in the corresponding mounts.Can hold a lotThe IB-PCI208 can hold cards in sizes 22x42/60/80 mm and independently of the operating system at that. Power is supplied via the PCIe host interface.Quick installationThe cards are easy to installed thanks to pre-punched holes. Connect the PCI-e card and you browse through your files with Up to 32 Gbit/s.
LongProductName - PCIe 3.0 x4, M.2, 32 Gbps, 101 g
LongSummaryDescription - ICY BOX IB-PCI208. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 3.0. Product colour: Green, Country of origin: China. Data transfer rate (max): 32 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac.... Width: 65 mm, Depth: 145 mm, Height: 5 mm
Name - Icy Box IB-PCI208 PCIe-Card, M.2 PCIe SSD to PCIe 3.0 x4 Host | Raidsonic
Other features - Material - Plastic
Other features > Special features - • Converts M.2 (NGFF) PCIe to PCIe x4 • Supports M.2 2280/2260/2242 with M-Key or M+B-Key based on PCIe • Application of double-sided assembled modules supported • Data transfer rate up to 39 Gbit/s • Full profile form factor • Windows 7, Mac 10.0 or above compatible
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 165 mm
Package features > Gross height (mm) - 125 mm
Package features > Gross width (mm) - 25 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 3351 pc(s)
Package features > Paper/Pasteboard - 12.00 g
Package features > PET - 18.00 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.000515625 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Manual - Yes
Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 160 mm
Packaging data - Package height - 25 mm
Packaging data - Package weight - 122 g
Packaging data - Package width - 125 mm
Packaging data - Screws included - Yes
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - Output interface - M.2
ProductName - IB-PCI208
ShortSummaryDescription - ICY BOX IB-PCI208, PCIe, M.2, PCIe 3.0, Green, China, 32 Gbit/s
System requirements - Mac operating systems supported - Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details > Net weight - 0.075 kg
Technical details > Producer - Raidsonic
Title - ICY BOX IB-PCI208 interface cards/adapter Internal M.2
URL - https://icybox.de/en/product.php?id=362
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 145 mm
Weight & dimensions - Height - 5 mm
Weight & dimensions - Weight - 52 g
Weight & dimensions - Width - 65 mm
