Brand - ICY BOX
BrandPartCode - 60403
Category - Interface Cards/Adapters
Category 1 - Kabel & Adapter
Category 2 - Computer
Category 3 - Interfacekarten
Design - Cooling type - Passive
Design - Country of origin - China
Design - Internal - Yes
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 4250078167242

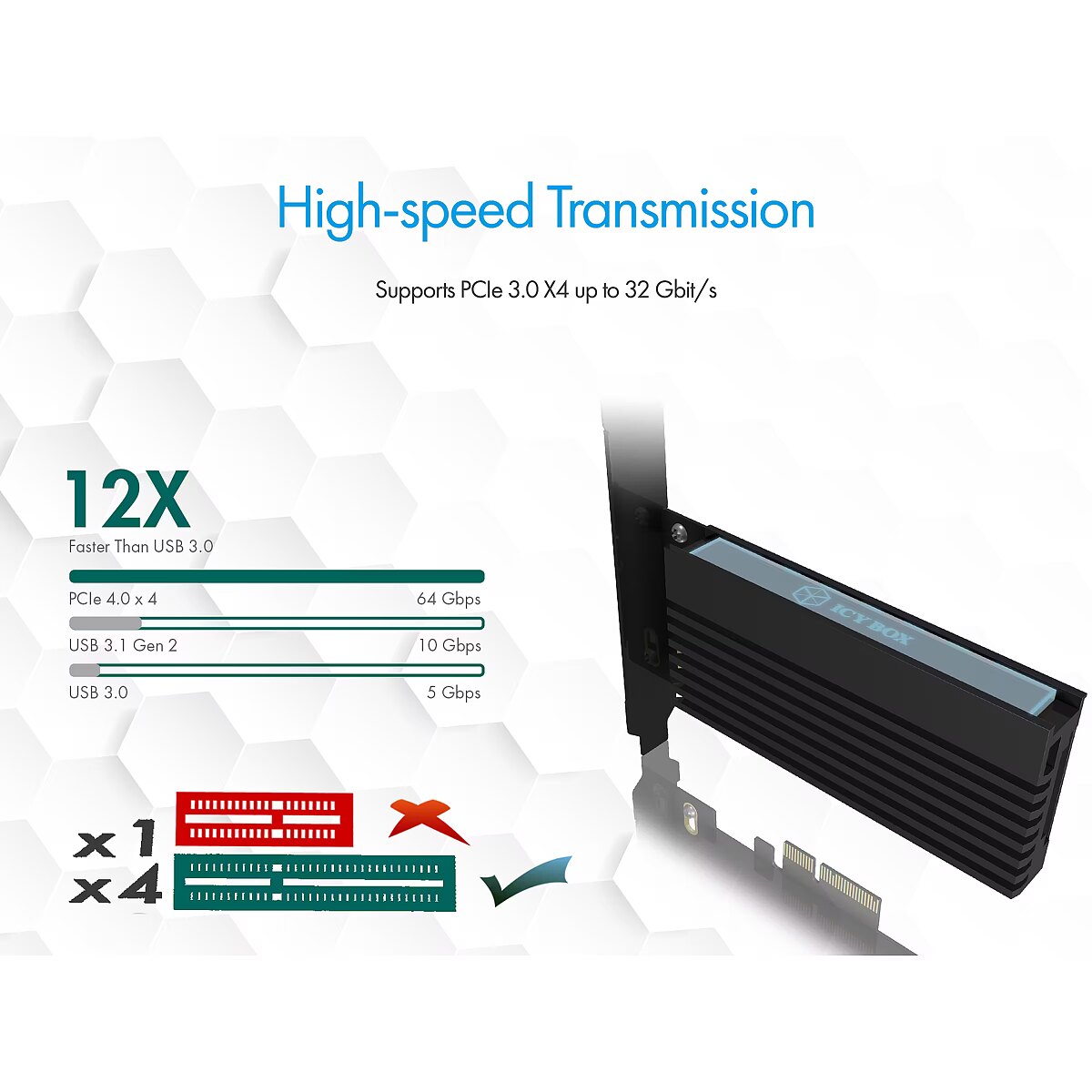

Features - Data transfer rate (max) - 64 Gbit/s
GTIN - 4250078167242
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 12.1 kg
Logistics data - Master (outer) case height - 300 mm
Logistics data - Master (outer) case length - 500 mm
Logistics data - Master (outer) case width - 330 mm
Logistics data - Products per master (outer) case - 40 pc(s)

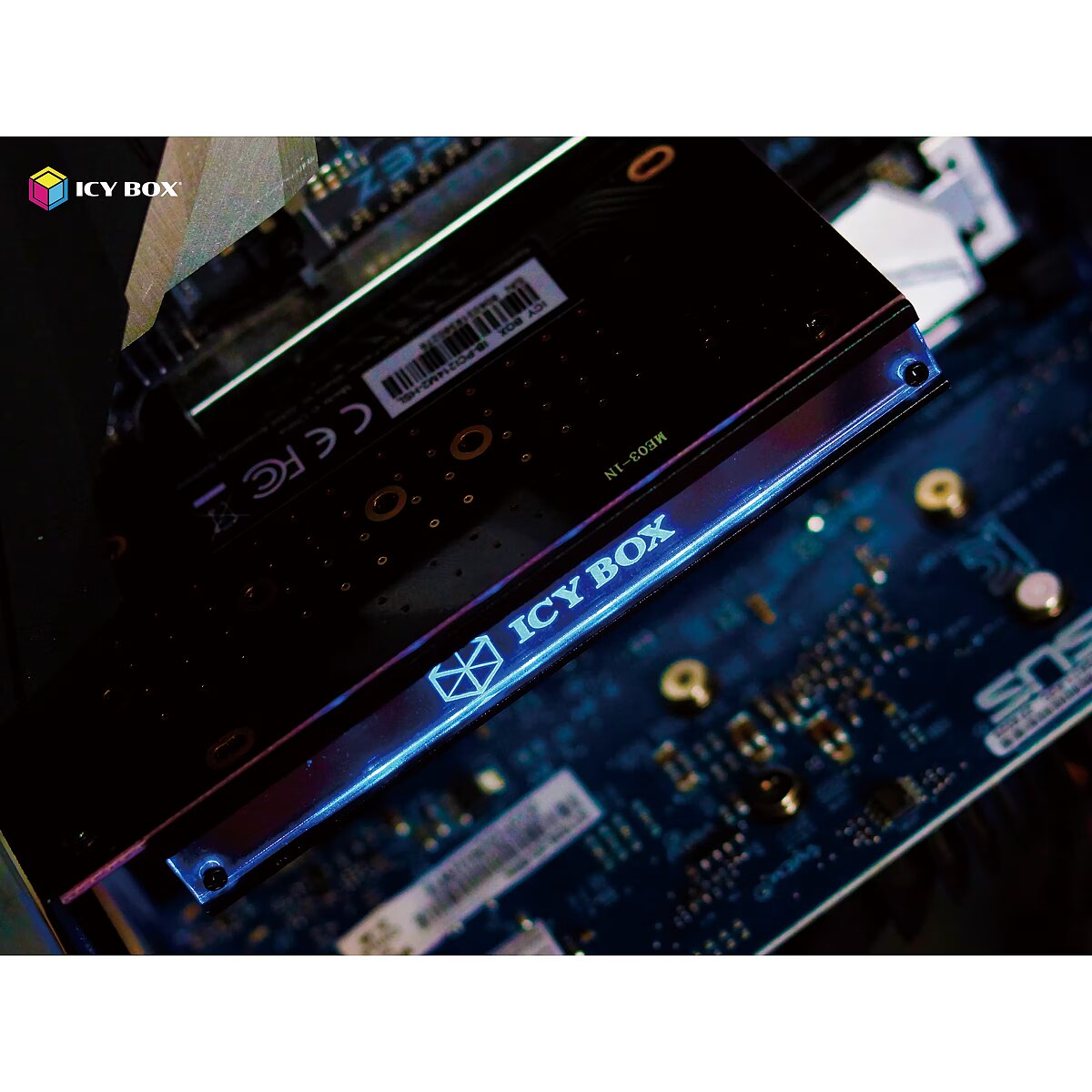

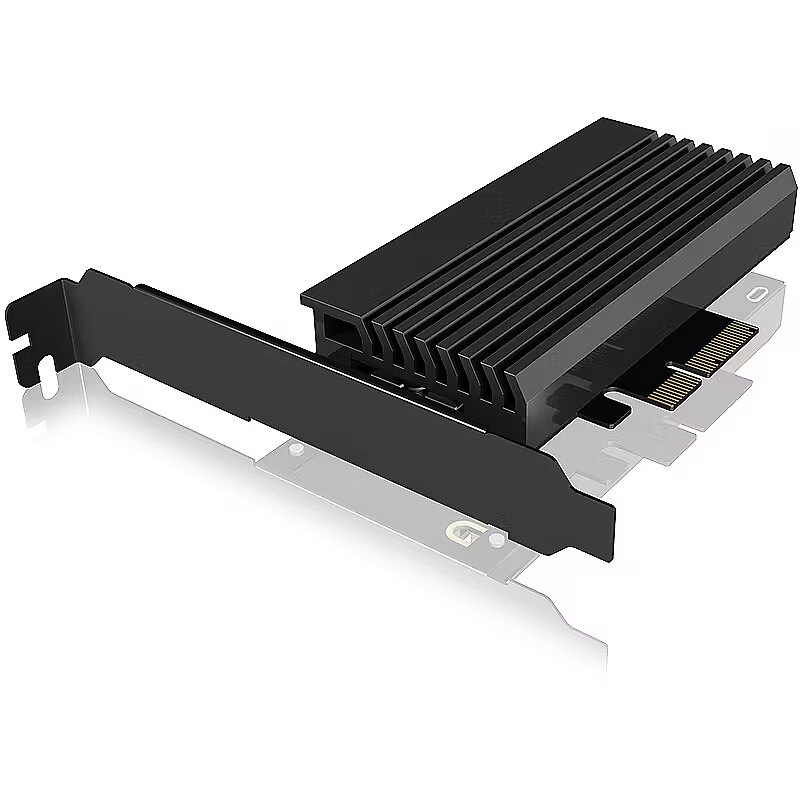

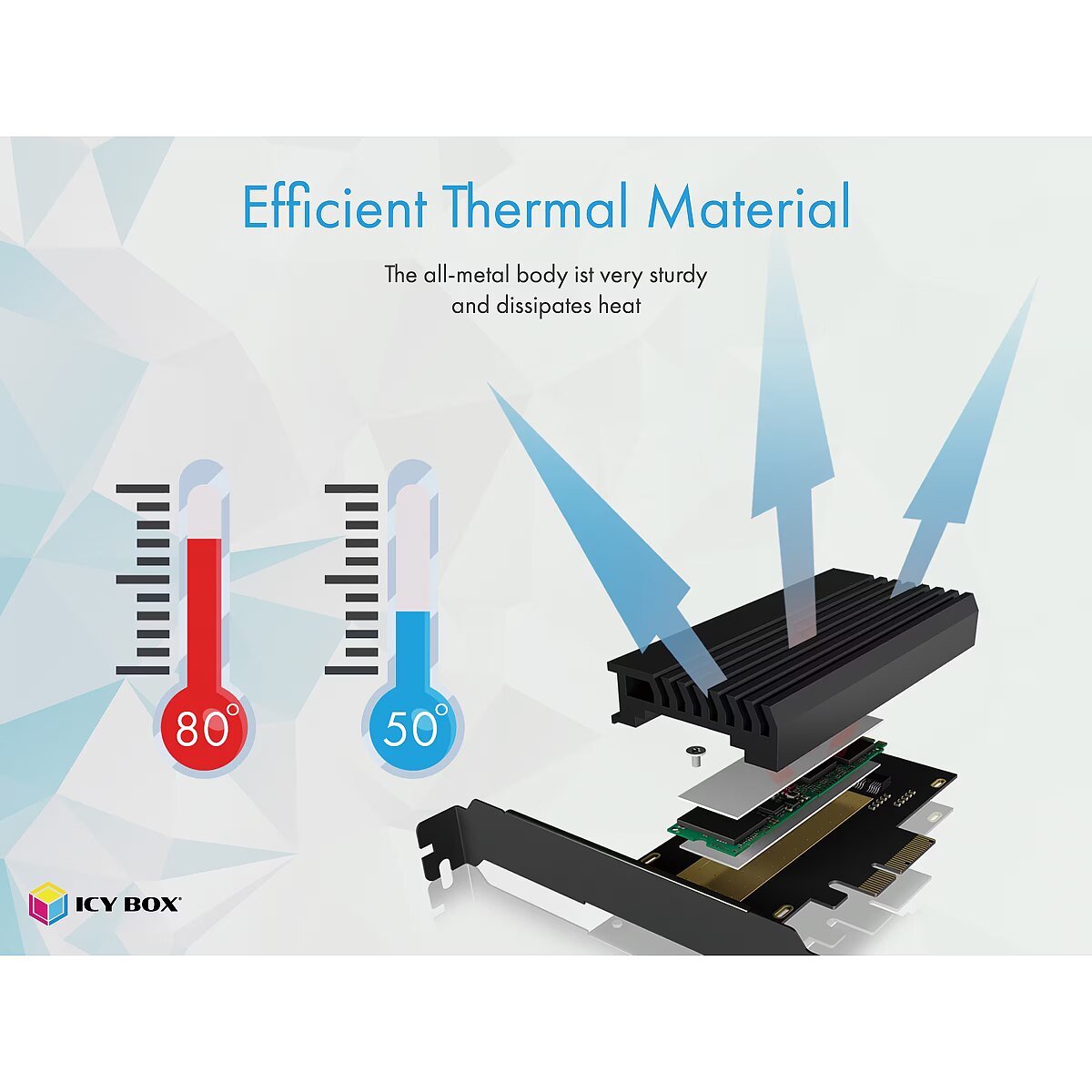

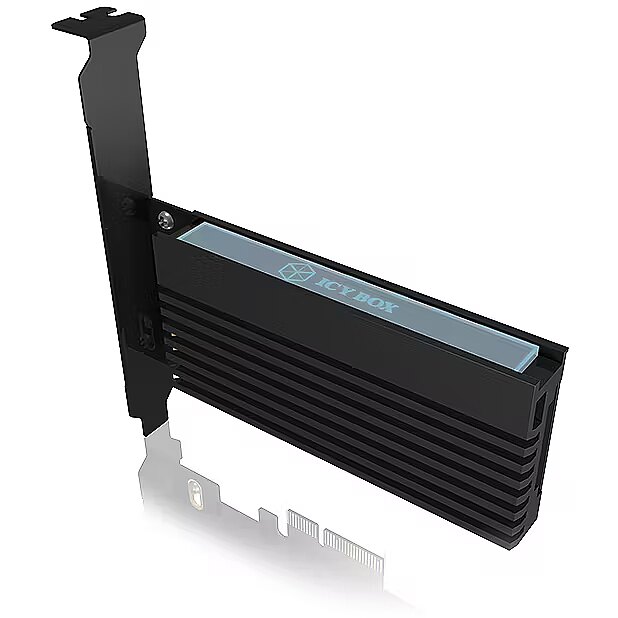

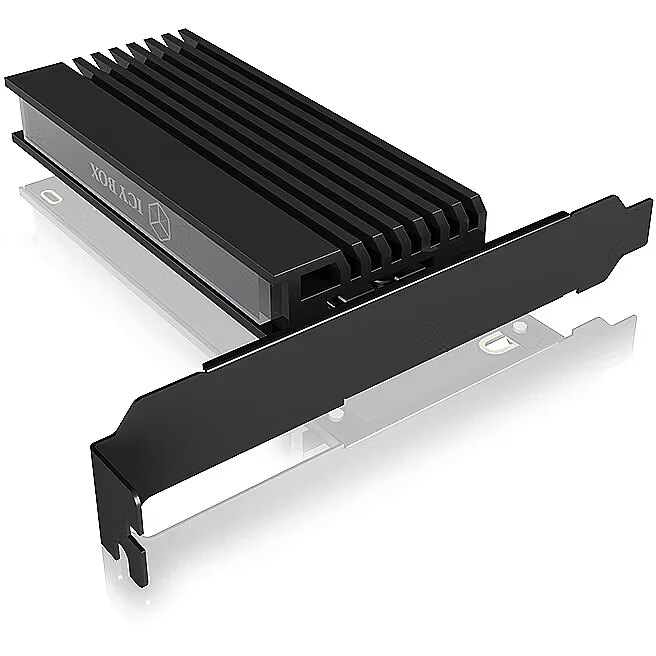

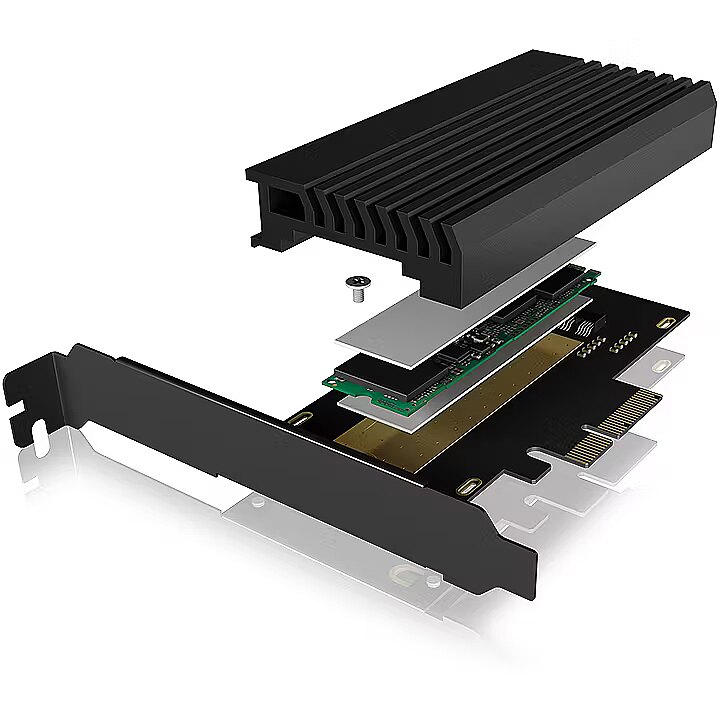

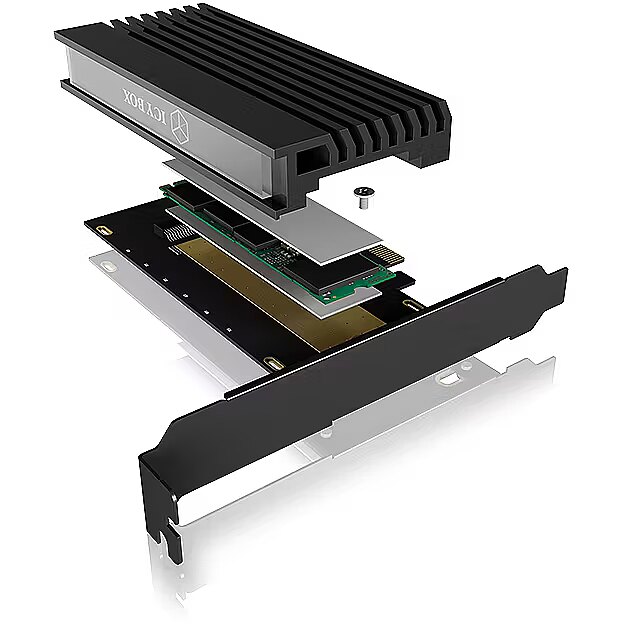

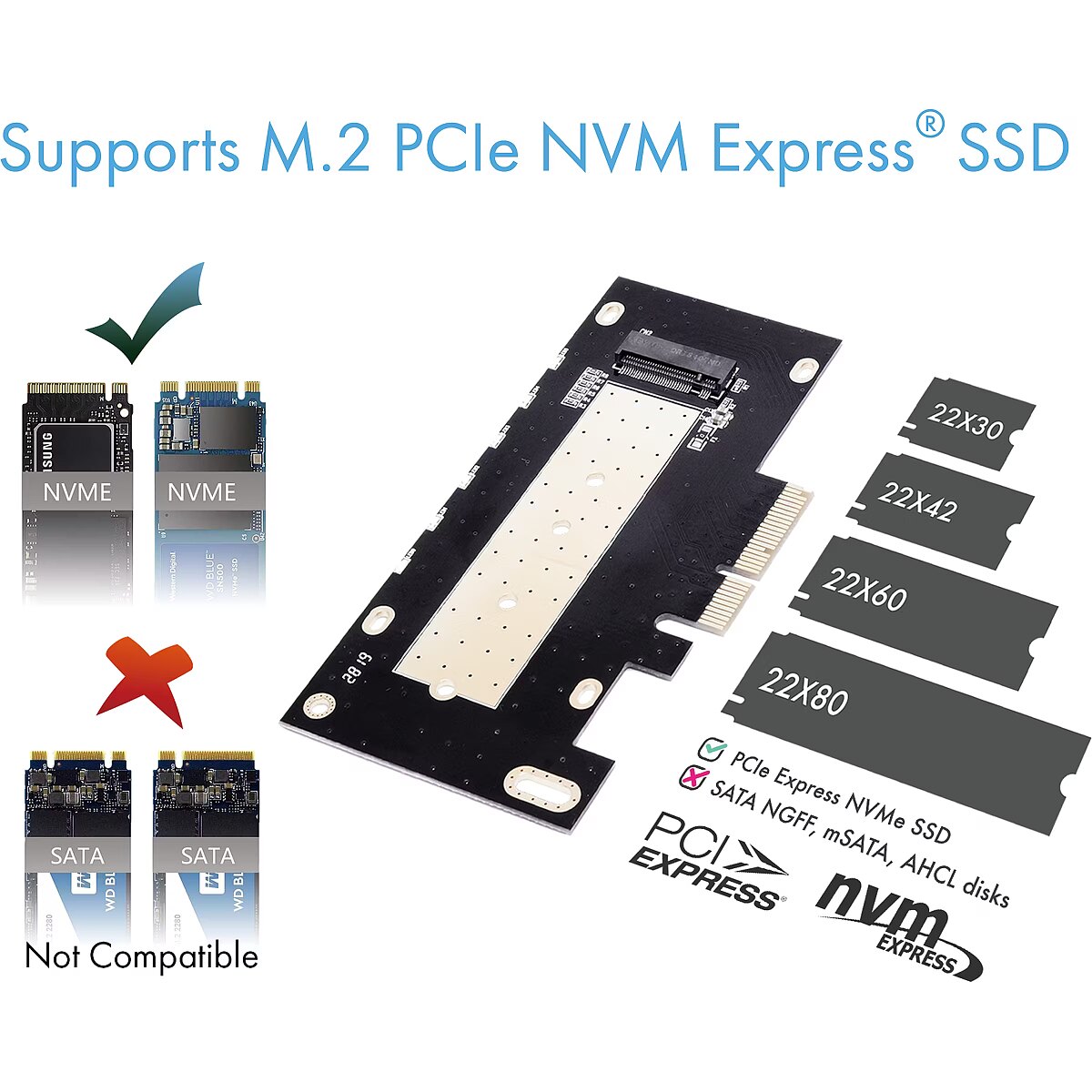

LongDesc - Future-proof expansionWith the PCI expansion card you can easily upgrade older systems to the new level. You can experience all the advantages of a fast M.2 SSD without having to rebuild the whole system again.CustomizableThe IB-PCI214M2-HSL contains both a full and a half profile cover. This means that it can be used in almost any type of housing without any problems. In addition, M.2 SSDs with the dimensions of 22x30/42/60/80 mm can be installed. No matter what configuration you need, the IB-PCI214M2-HSL gives full throttle in any setting.Speed until the board glowsThe current M.2 NVMe SSDs achieve more than five times the speed of traditional SATA SSDs. This enormous power naturally generates a lot of waste heat on the small M.2 cards. In order to protect the card and the system, the speed is throttled if the SSD heats up too much. The IB-PCI214M2-HSL offers enough cooling power with the enclosed heat conduction pads and the large heat sink so that you can enjoy the full power of your M.2 SSD at all times.Power and designThe massive heat sink is not only responsible for temperature control. The integrated acryl glass highlight is illuminated by LEDs and immerses the system in a rich blue tone.
LongProductName - PCIe 4.0 x4, M.2 M NVMe, 64 Gbit/s
LongSummaryDescription - ICY BOX IB-PCI214M2-HSL. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Cooling type: Passive, Country of origin: China. Data transfer rate (max): 64 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 115 mm, Depth: 16 mm, Height: 60 mm
Manufacturer - ICY BOX
MPN - IB-PCI214M2-HSL
Name - PCI Express Card (x4) > 1x M.2 NVME 2280/2260/2242 mit Kühlkörper RaidSonic
Other features - Material - Metal, Plastic
Packaging data - Manual - Yes
Packaging data - Mounting brackets included - Yes
Packaging data - Package depth - 28 mm
Packaging data - Package height - 205 mm
Packaging data - Package weight - 300 g
Packaging data - Package width - 155 mm
Ports & interfaces - Expansion card standard - PCIe 4.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2
ProductName - IB-PCI214M2-HSL
ShortSummaryDescription - ICY BOX IB-PCI214M2-HSL, PCIe, M.2, PCIe 4.0, Black, Passive, China
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Technical details - Compliance certificates - CE
Technical details - Sustainability compliance - Yes
Title - ICY BOX IB-PCI214M2-HSL interface cards/adapter Internal M.2
URL - https://www.raidsonic.de/en/standards/searchresults.php?we_objectID=5456
WarrantyInfo -
Weight - 0.26
Weight & dimensions - Depth - 16 mm
Weight & dimensions - Height - 60 mm
Weight & dimensions - Weight - 23 g
Weight & dimensions - Width - 115 mm
