Axagon PCEU-430RS kontroler PCIe, 4x port USB UASP

Accessories included - PCI-Express card with a standard bracket, multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA, packed in a cardboard box.
Box Weight Brutto (kg) - 4 kg
Brand - Axagon
BrandPartCode - PCEU-430RS
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|USB 3.0
Category Code - IOC
Chipset type - Renesas PD720201
code - PCEU-430RS
Code - PCEU-430RS
Controller Features - Hot-plug Drive Support
Controller Form Factor - Plug-in Card
Controller type - USB 3.0
Data Transfer Rate - 5 Gbps
Depth Retail box Dimensions - 25 mm

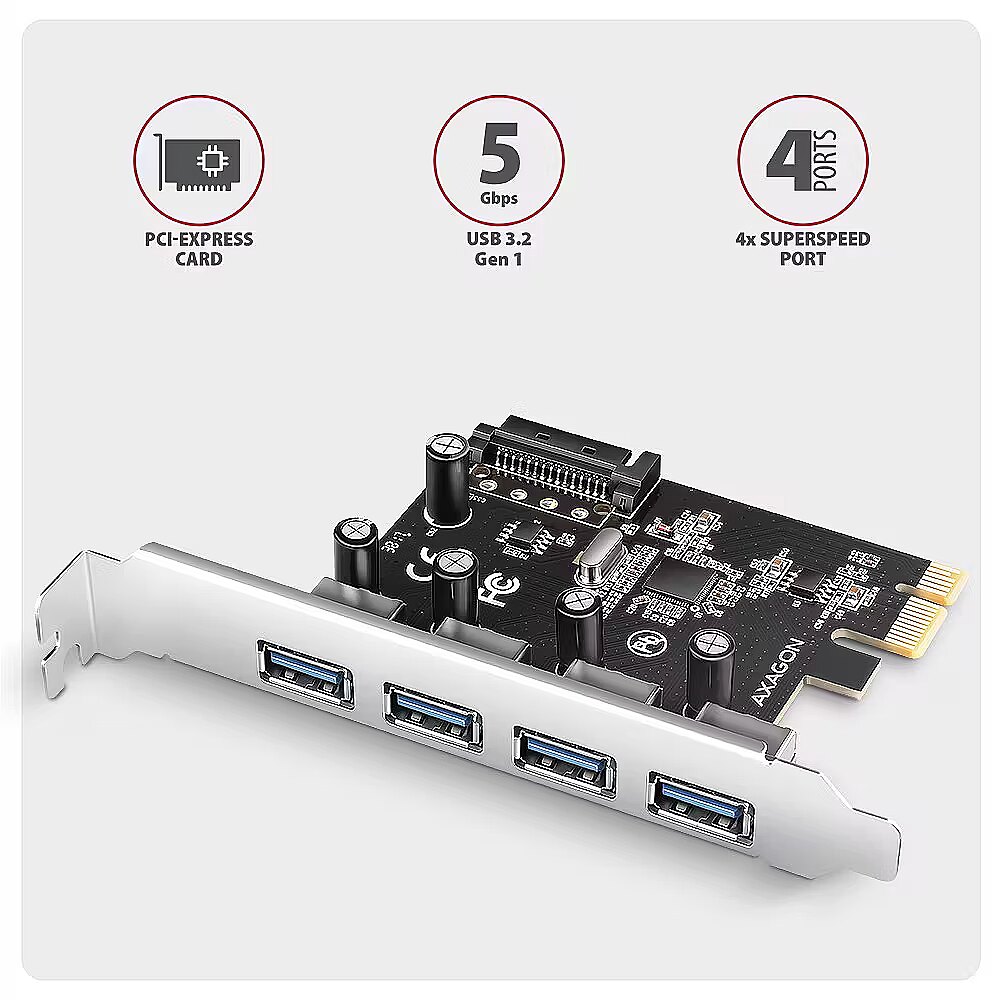

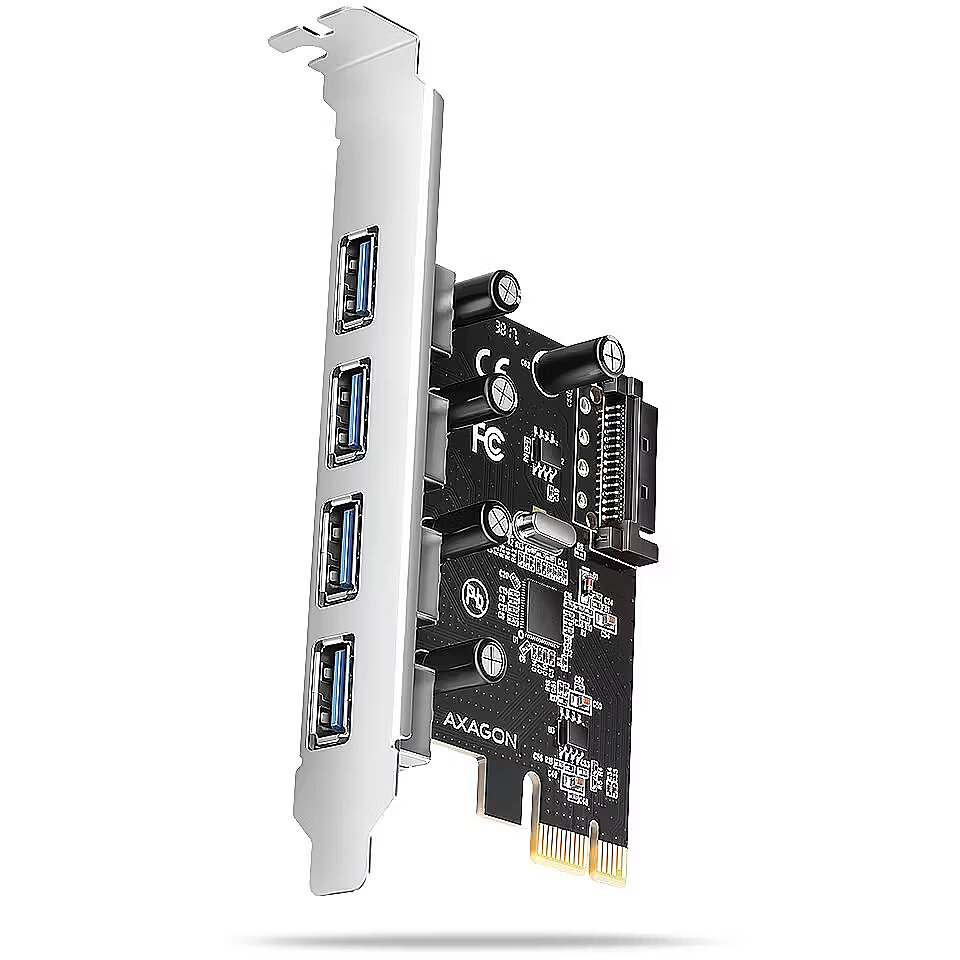

Description - PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port PCI-Express card with four external USB-A 5Gbps ports. Renesas chipset. The AXAGON PCEU-430RS PCI-Express card adds four external USB-A 5Gbps ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s. All four USB ports are taken out to the bracket. You can connect four different USB devices such as printers, keyboards, card readers, flash drives, external HDDs, etc. Reliable power supply of the card is provided from the computer power supply via the SATA power connector. The controller is equipped with a renowned Renesas company chipset with proven seamless compatibility and UASP support.
Description - The AXAGON PCEU-430RS PCI-Express card adds four external USB-A 5Gbps ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s. All four USB ports are taken out to the bracket. You can connect four different USB devices such as printers, keyboards, card readers, flash drives, external HDDs, etc.  Reliable power supply of the card is provided from the computer power supply via the SATA power connector. The controller is equipped with a renowned Renesas company chipset with proven seamless compatibility and UASP support. Input:
PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1. / 3.0 / 4.0.
Number of 1-Lane lines (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
A bandwidth of 1-Lane PCI-Express 2.0 bus up to 5 Gb/s. Input (power supply):
SATA 15-pin male power connector. Output:

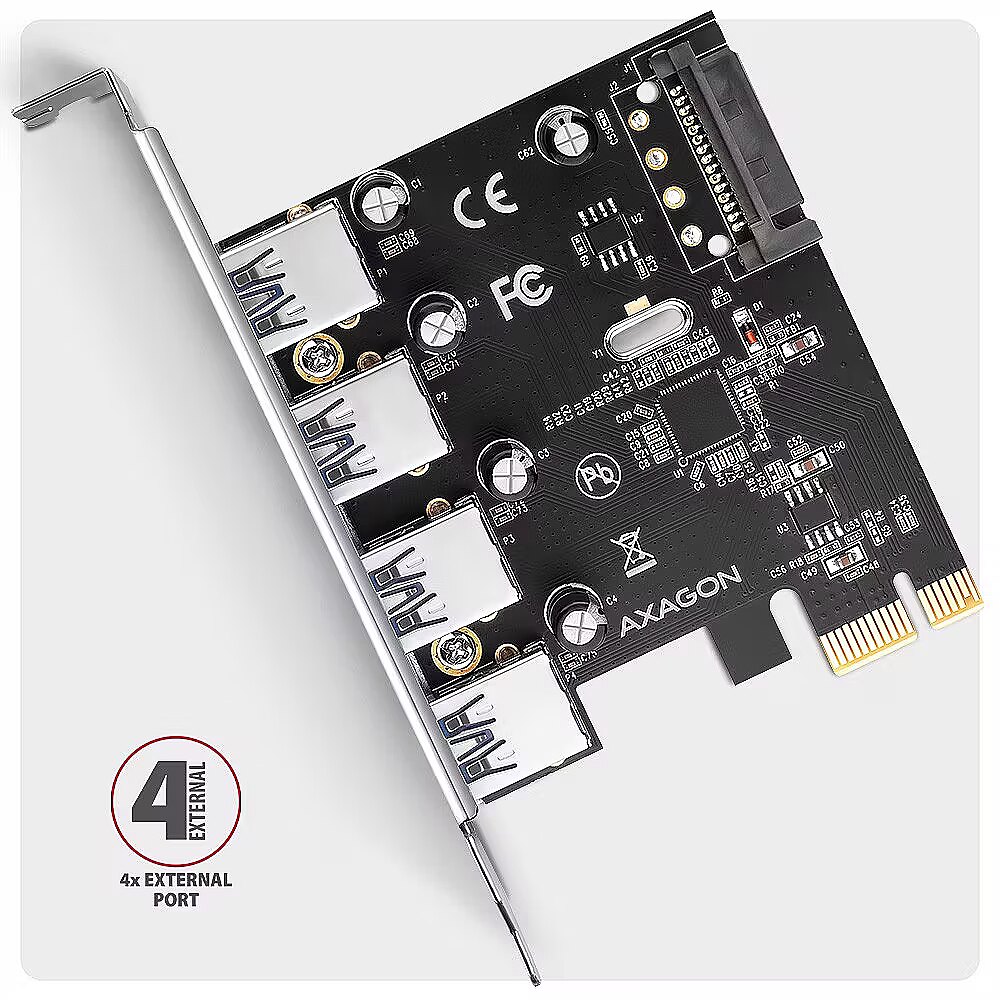

4x external USB 5Gbps port with USB A-F connectors.
USB 5Gbps interface - before USB 3.2 Gen 1 / USB 3.0.
Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.
Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s.
When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s.  Other features:
Full Plug and Play support.
Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.
Compliant with the final official xHCI specification revision 1.0 by USB-IF.
Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
Fully supports Hot Plug connecting and disconnecting of USB devices while running.

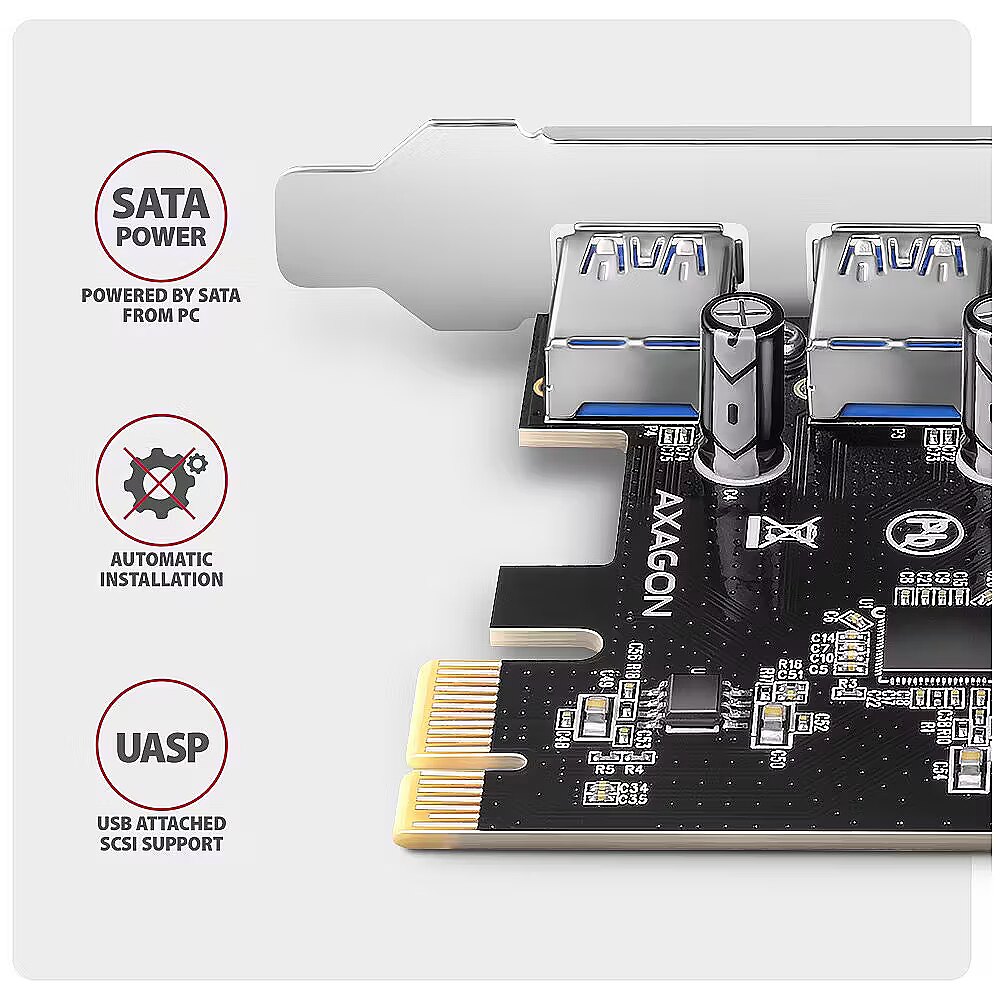

Internal SATA power connector for powering the controller from the PC power supply.
Renesas PD720201 chipset is used. Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.
Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 / 2019 / 2022 and later versions, no external drivers are required, they are already part of the operating system.  Package contains:

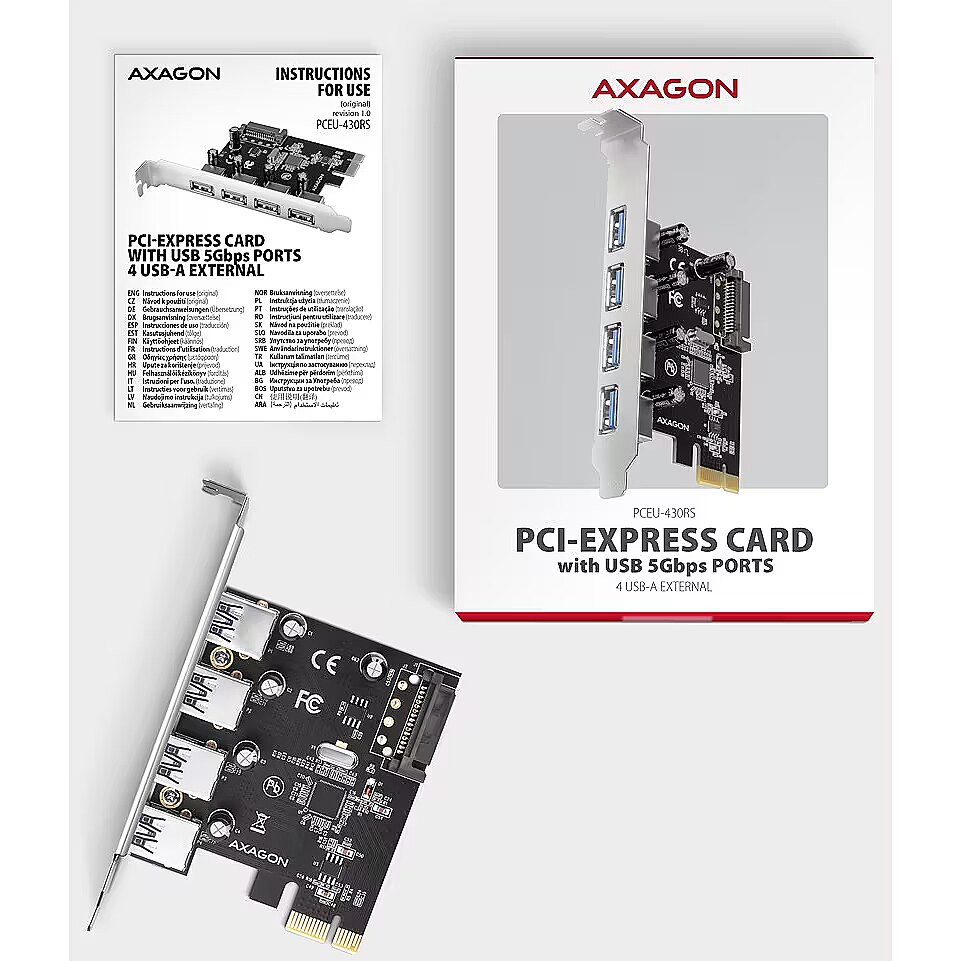

PCI-Express card with a standard bracket,
multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
packed in a cardboard box.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Hot-Plug support - Yes
Design - Internal - Yes
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 145 mm
Dimensions -
dimension weight - 75 g
dimension width - 110 mm
EAN - 8595247908582
ean - 8595247908582
EAN Code - 8595247908582
Features - Data transfer rate (max) - 5 Gbit/s
Features - Plug and Play - Yes
GTIN - 8595247908582
guarantee - 24
guarantee_type - normal
Height Retail box Dimensions - 145 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/250120210012807732.jpg
Included Accessories - - PCI-Express card with a standard bracket
- multilingual manual
- packed in a cardboard box
Interface - PCIe
Link - https://www.axagon.eu/en/produkty/pceu-430rs
LongDesc - The AXAGON PCEU-430RS PCI-Express card adds four external USB-A 5Gbps ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s.All four USB ports are taken out to the bracket. You can connect four different USB devices such as printers, keyboards, card readers, flash drives, external HDDs, etc. Reliable power supply of the card is provided from the computer power supply via the SATA power connector. The controller is equipped with a renowned Renesas company chipset with proven seamless compatibility and UASP support.Input:• PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1. / 3.0 / 4.0.• Number of 1-Lane lines (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.• A bandwidth of 1-Lane PCI-Express 2.0 bus up to 5 Gb/s.Input (power supply):• SATA 15-pin male power connector.Output:• 4x external USB 5Gbps port with USB A-F connectors. • USB 5Gbps interface - before USB 3.2 Gen 1 / USB 3.0.• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 and USB 1.1.• Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s. • When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s. Other features:• Full Plug and Play support.• Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices. • Compliant with the final official xHCI specification revision 1.0 by USB-IF.• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later. • Fully supports Hot Plug connecting and disconnecting of USB devices while running.• Internal SATA power connector for powering the controller from the PC power supply.• Renesas PD720201 chipset is used.Supported operating systems:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above. • Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10, Server 2012 / 2016 / 2019 / 2022 and later versions, no external drivers are required, they are already part of the operating system. Package contains:• PCI-Express card with a standard bracket,• multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,• packed in a cardboard box.
LongProductName - PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port
LongSummaryDescription - Axagon PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Host interface gender: Female. Country of origin: China, Certification: CE. Data transfer rate (max): 5 Gbit/s. Quantity per pack: 1 pc(s), Package width: 110 mm, Package depth: 145 mm
Model - PCEU-430RS
name - AXAGON PCEU-430RS Erweiterungskarte, PCIe 4.0 x1, 4x USB 3.0 - schwarz
Name - AXAGON PCI-Express card with four external USB-A 5Gbps ports | PCEU-430RS
name - PCEU-430RS PCIe controller, 4x USB UASP port
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 145.00 mm
Package features > Gross height (mm) - 25.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4334 pc(s)
Package features > Paper/Pasteboard - 23.20 g
Package features > Plastic (No PET) - 5.80 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 145 mm
Packaging data - Package height - 25 mm
Packaging data - Package type - Box
Packaging data - Package weight - 74 g
Packaging data - Package width - 110 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 100
Pack Weight Brutto (kg) - 0.04 kg
Pack Weight Netto (kg) - 0.02 kg
Pieces in pack - 1
Ports - 1 x Power SATA 15pin
Ports - 4 x USB 3.0
Ports & interfaces - Expansion card form factor - Full-height
Ports & interfaces - Expansion card standard - PCIe 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Host interface gender - Female
Ports & interfaces - Output interface - USB 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - SATA power connector type - SATA 15-pin
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=241115134604521181&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - PCEU-430RS
ProductDescription - AXAGON PCEU-430RS PCIe card - 4x USB 5Gbps port, SATA power, Renesas PD720201, SP
ProductName - PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port
Product Net Weight - 0.05 kg
ProductType - USB Hub
Provides Data Channel - USB3.0
Requires Expansion Slot Standard - PCI Express 2.0 x1
Requires Operating System - Microsoft Windows Server 2008 Linux Microsoft Windows Server 2003 Microsoft Windows XP Microsoft Windows Vista Microsoft Windows Server 2012 Microsoft Windows 7 or Later Microsoft Windows Server 2016 Microsoft Windo
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
ShortSummaryDescription - Axagon PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Female, Full-height, PCIe 2.0, SATA 15-pin
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.07 kg
Technical details > Net weight - 0.05 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - PCI-Express card with four external USB-A 5Gbps ports
Technical details > Producer product name - PCEU-430RS
Title - Axagon PCEU-430RS PCIe controller 4x ext. USB-A 5Gbps port
Unit Box Height - 0.145
Unit Box Length - 0.025
Unit Box Width - 0.11
Unit Calculated Volume - 0.0003988 cubm
Unit Calculated Weight - 0.07 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pceu-430rs
USB 3.2 Gen 1 - 4 (USB 3.2 (type A))
USB 3.2 Input/Output connectors - 4
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pceu-430rs?ami=214
vendpn - PCEU-430RS
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 50 g
Width Retail box Dimensions - 110 mm
