J5create THUNDERBOLT 4 QUAD DISPLAY DOCKING STATION

ARTIKEL1 - THUNDERBOLT 4 QUAD DISPLAY
ARTIKEL2 - DOCKING STATION
Brand - j5create
BrandPartCode - JTD568-EN
Breite - 0
Category - Laptop Docks & Port Replicators
EANCode - 4712795088304
Gewicht - 1.56
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 4712795088304
HERSTELLER - J5CREATE
Hoehe - 0
HSTNUMMER - JTD568-EN
Laenge - 0
Logistics data - Export Control Classification Number (ECCN) - EAR99
Logistics data - Master (outer) case height - 155 mm
Logistics data - Master (outer) case length - 275 mm
Logistics data - Master (outer) case net weight - 3.6 kg
Logistics data - Master (outer) case width - 207 mm
Logistics data - Products per master (outer) case - 2 pc(s)

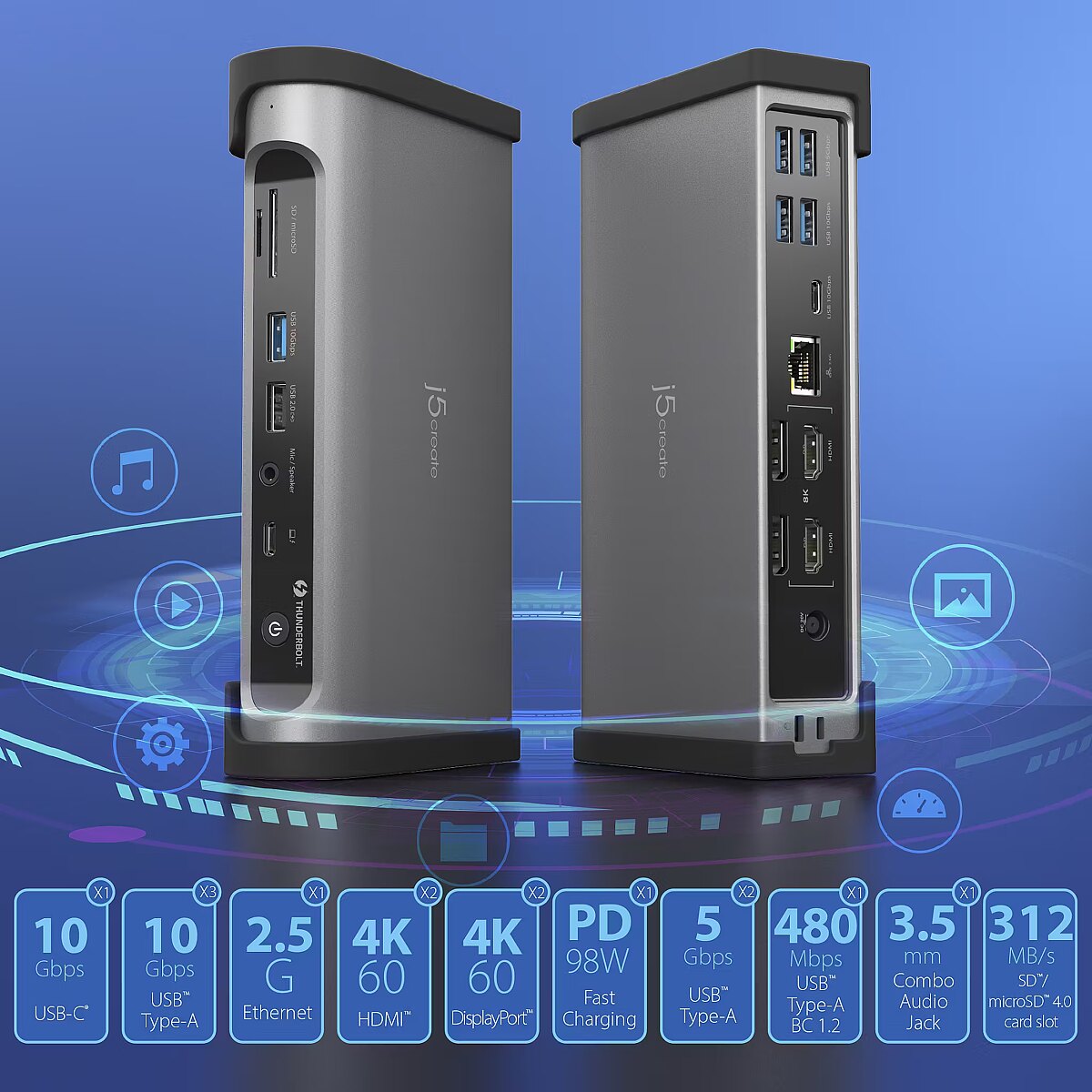

LongDesc - This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
LongProductName - Thunderbolt 4 Quad Display Docking Station-EU
LongSummaryDescription - j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Grey, Colour name: Dark / Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: DC, Input current: 6.75 A, Power supply: 135 W. Width: 201 mm, Depth: 109 mm, Height: 43 mm
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1

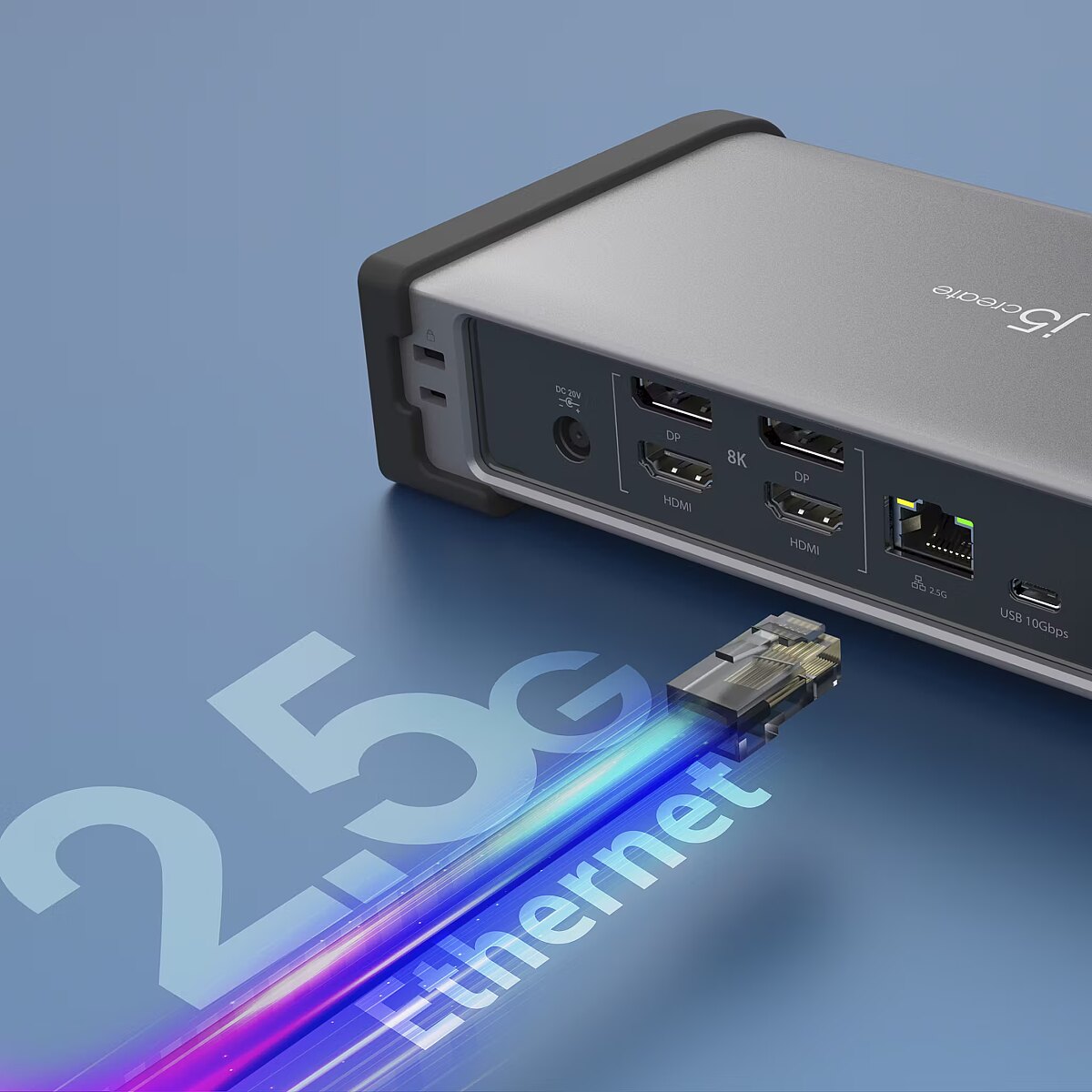

Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 48 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -10 - 65 °C
Packaging content - AC adapter included - Yes
Packaging content - Cables included - Thunderbolt
Packaging content - Packaging content - 1 - JTD568 Thunderbolt™ 4 Quad display Docking Station
1 - 135W AC adapter with up to 98W PD charge
1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm)
1 - Quick Installation Guide (QIG)
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 237 mm
Packaging data - Package height - 94 mm
Packaging data - Package weight - 1.67 kg
Packaging data - Package width - 122 mm
Packaging data - Quantity per pack - 1 pc(s)

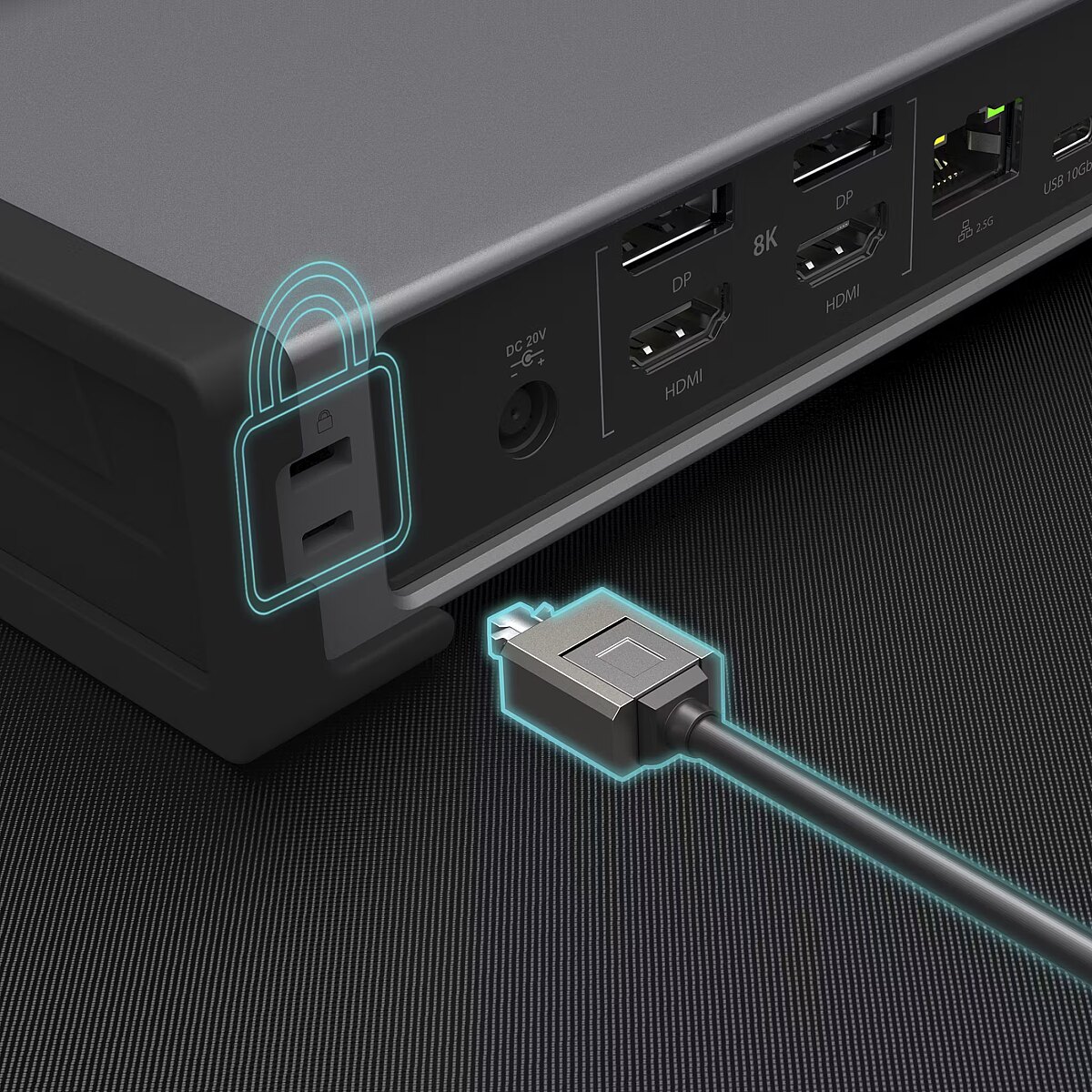

Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - Yes
Performance - Charging function - Yes
Performance - Colour name - Dark / Space Grey

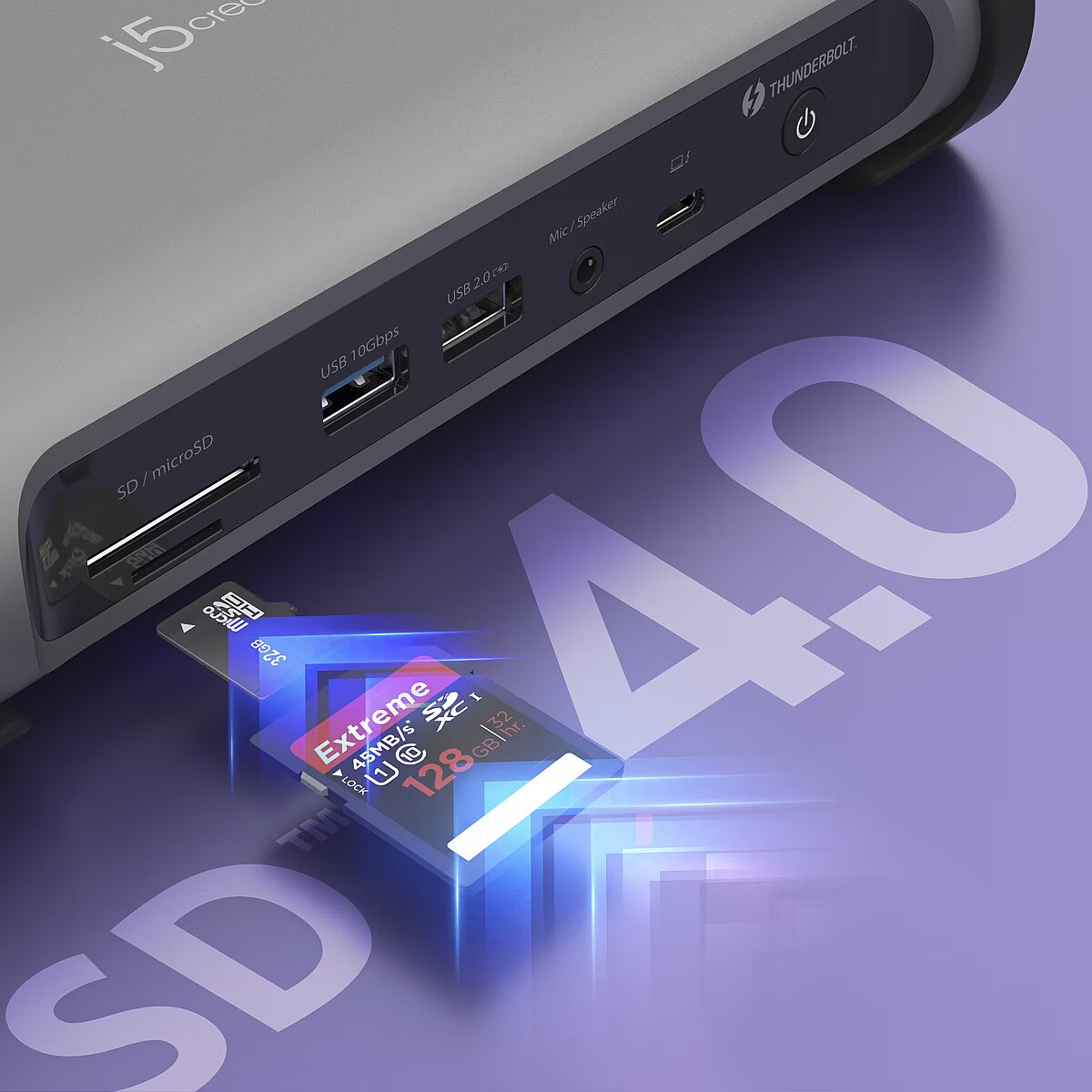

Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 10 Gbit/s
Performance - HD type - 8K Ultra HD
Performance - Housing material - Aluminium
Performance - LED indicators - Yes

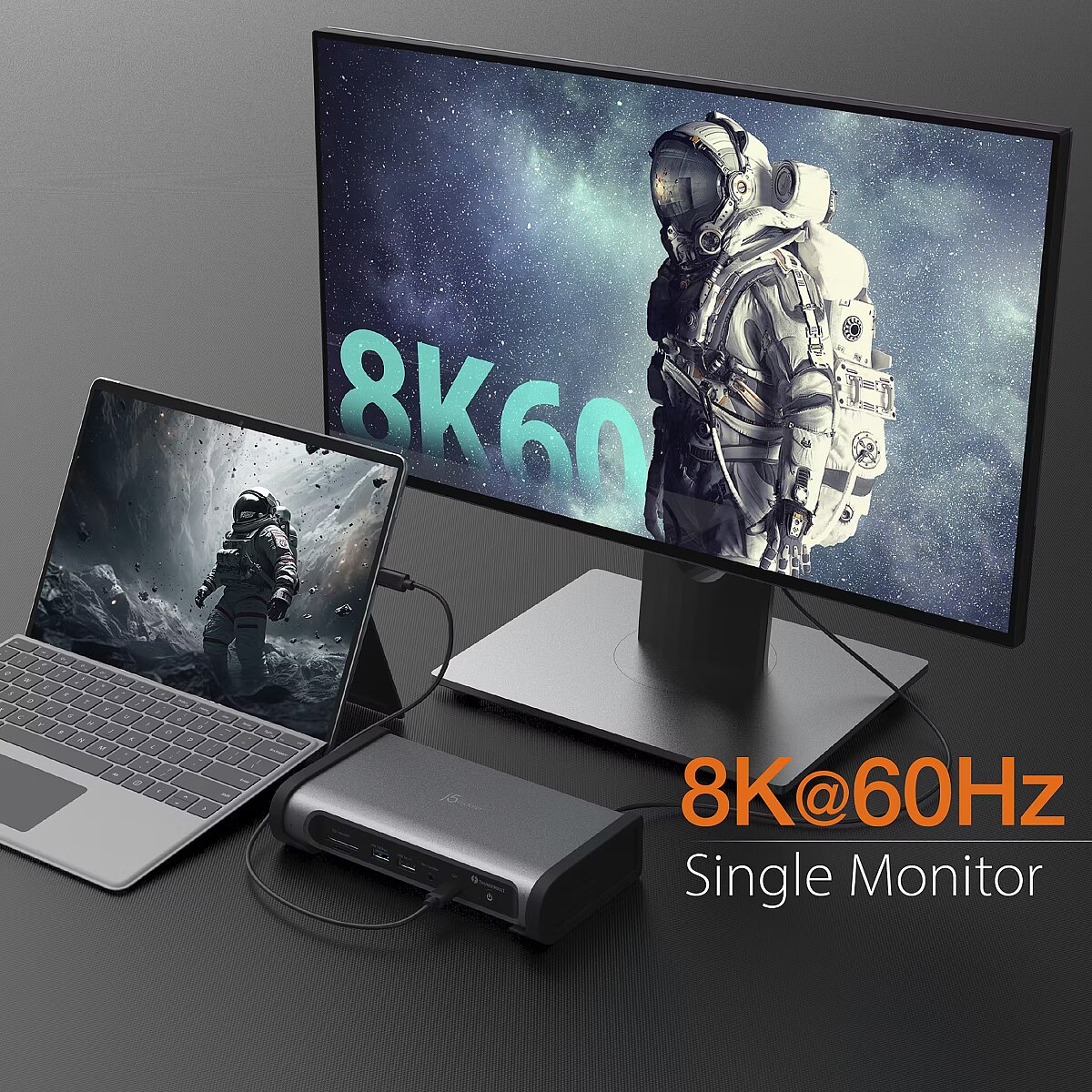

Performance - Maximum digital resolution - 7860 x 4320 pixels
Performance - Maximum refresh rate - 240 Hz

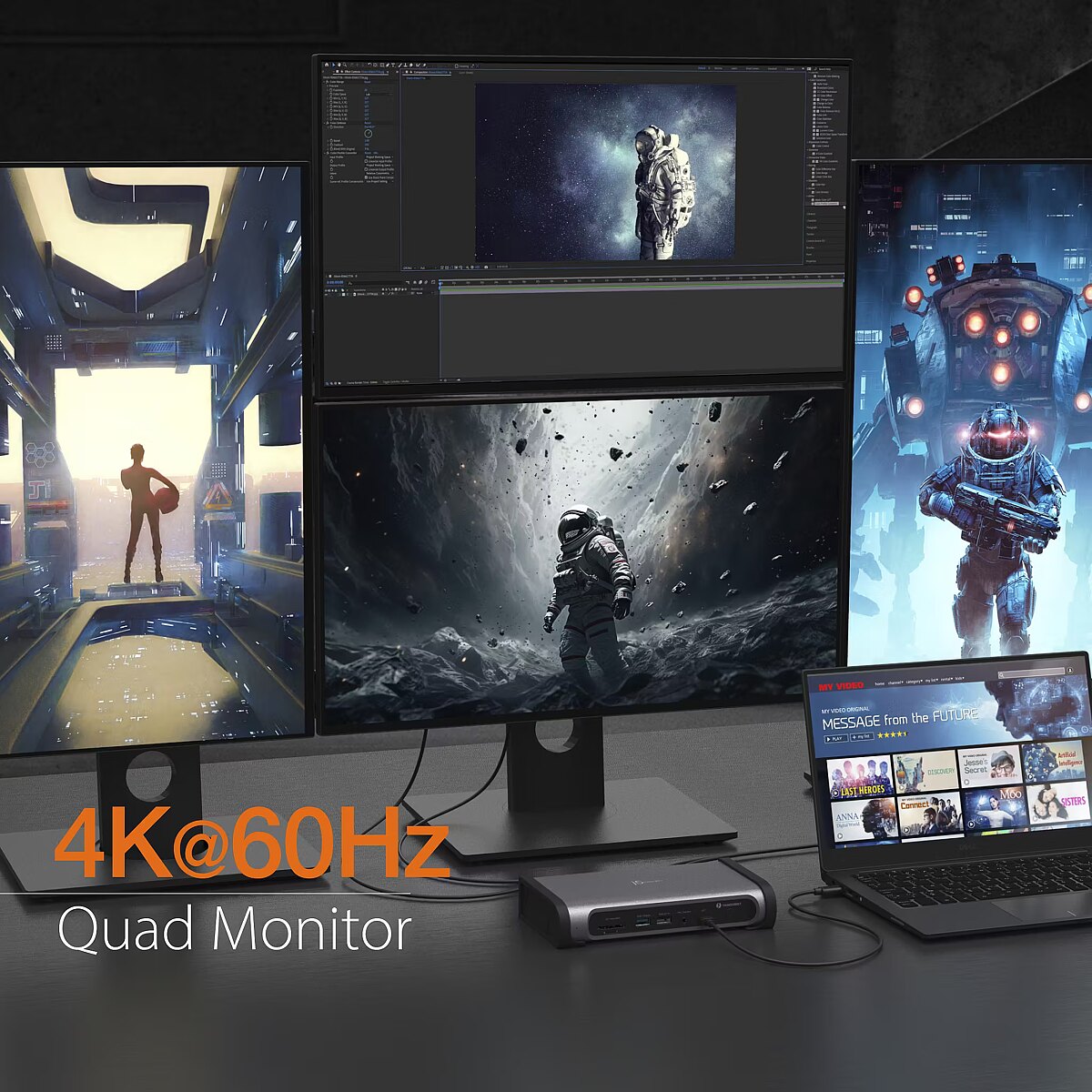

Performance - Number of displays supported - 4
Performance - On/off switch - Yes
Performance - Product colour - Grey

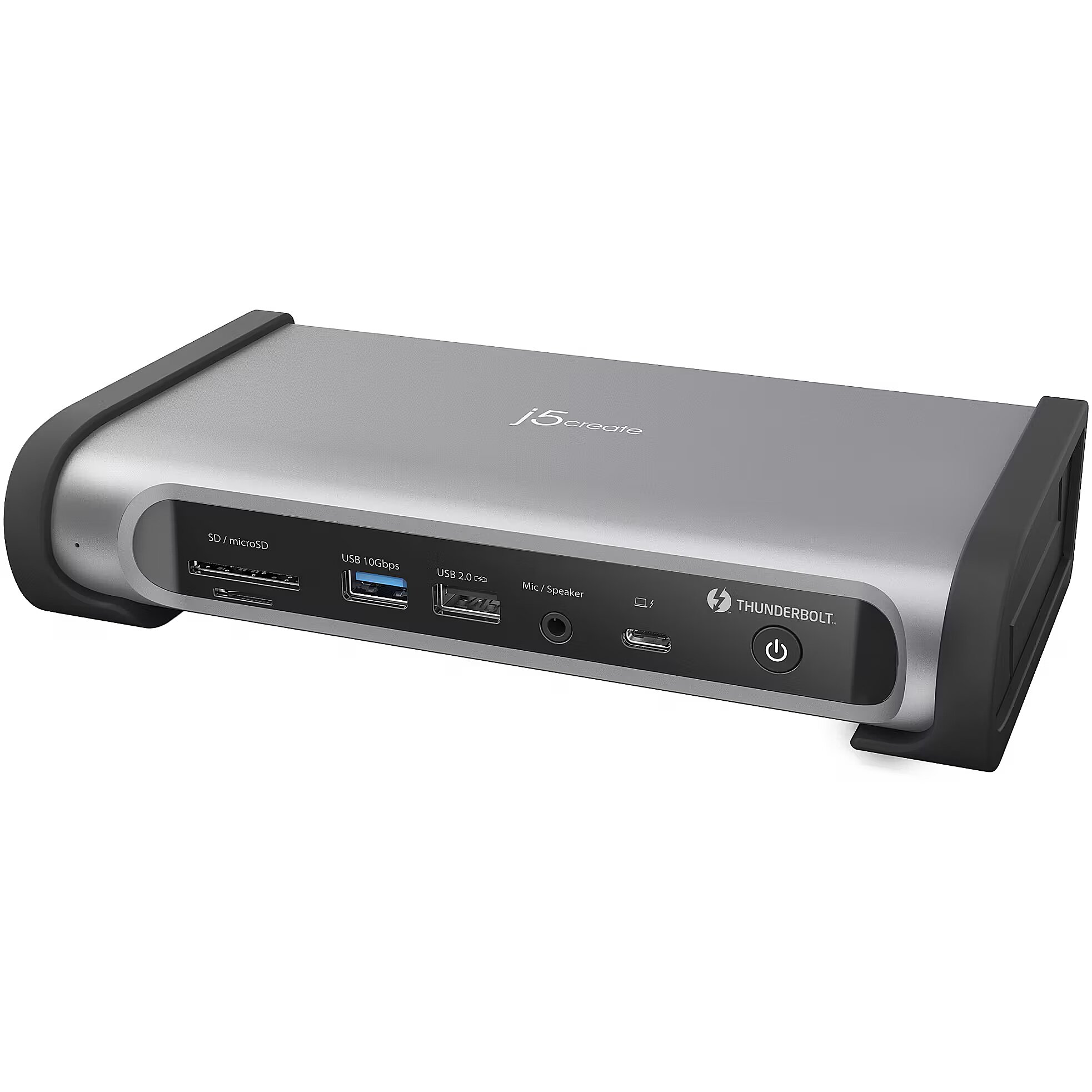

Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes

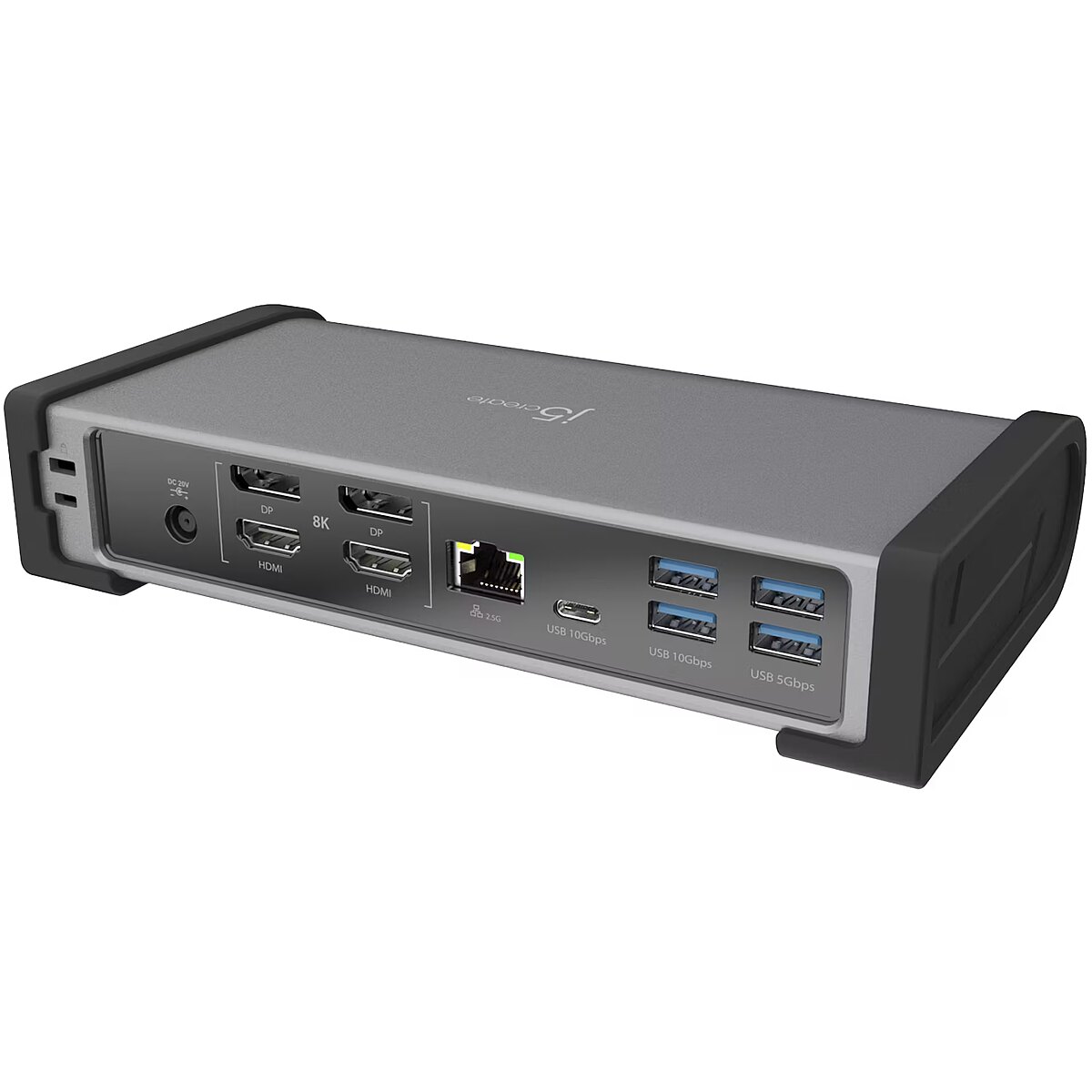

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Host interface - Thunderbolt 4
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes

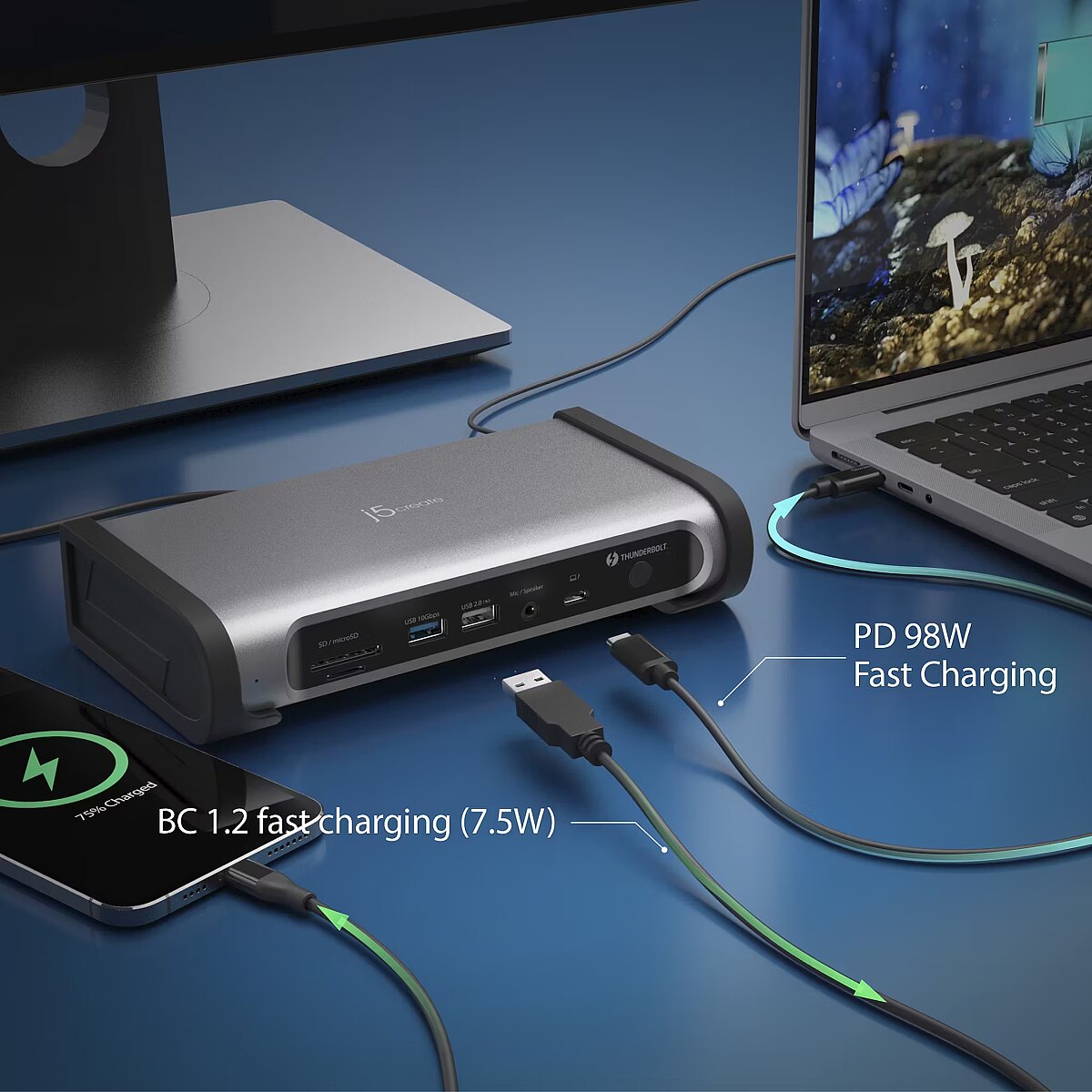

Ports & interfaces - USB Power Delivery up to - 98 W
Power - Compatible power plug types - EU
Power - Input current - 6.75 A
Power - Power source type - DC
Power - Power supply - 135 W
Power - Thunderbolt 4 cable length - 0.8 m
ProductName - JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black
ShortSummaryDescription - j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black, Wired, Thunderbolt 4, 98 W, 3.5 mm, 10,100,1000,2500 Mbit/s, Grey
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Stck_Kart - 2
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, REACH, RoHS
Technical details - Master (outer) case GTIN (EAN/UPC) - 24712795088308
Technical details - Warranty period - 2 year(s)
Title - j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-EU, Black
URL - https://en.j5create.com/
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 109 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Weight - 681 g
Weight & dimensions - Width - 201 mm
