Brand - DELL
BrandPartCode - 210-ASPC
Category - Network Switches
Category1 - Network
Data transmission - Forwarding rate - 667 Mpps
Data transmission - MAC address table - 32000 entries
Data transmission - Number of static routes - 256
Data transmission - Packet buffer memory - 4 MB
Data transmission - Switching capacity - 160 Gbit/s

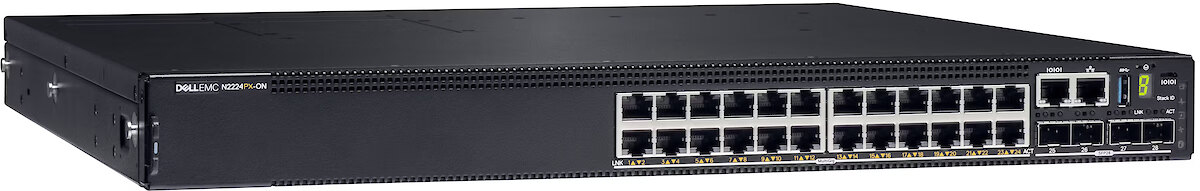

Description1 - Dell EMC PowerSwitch N2200-ON Series N2224PX-ON - switch - 24 ports - managed - rack-mountable - CAMPUS Smart Value
Description2 - Multi-gig PoE switches designed specifically for modern workloads and to increase employee efficiency.
Design - Form factor - 1U
Design - Product colour - Black
Design - Rack mounting - Yes
EAN - 5397184224557
GTIN - 5397184224557
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Modernize your campus access networkPurpose-built industry’s first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.
LongProductName - L3, 24x1/2.5GbE RJ-45, PoE, 160 Gbit/s, 1050W, 1U
LongSummaryDescription - DELL N2224PX-ON. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Management features - Switch layer - L3
Management features - Switch type - Managed
Manufacturer - Dell
ManufacturerID - 210-ASPC
Multicast features - Multicast support - Yes
Network - Auto-negotiation - Yes
Network - Auto-sensing - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.3at, IEEE 802.3bt
Network - Number of VLANs - 4096
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -40 - 65 °C
PackageHeight - 180
PackageLength - 570
PackageWeight - 10320
PackageWidth - 560
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 24
Ports & interfaces - QSFP+ module slots quantity - 2
Ports & interfaces - SFP28 ports quantity - 4
Ports & interfaces - USB 2.0 ports quantity - 1
Power - Power consumption (typical) - 1050 W
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
ProductName - N2224PX-ON
Security - Access Control List (ACL) - Yes
Security - Authentication type - RADIUS
Security - IGMP snooping - Yes
ShortSummaryDescription - DELL N2224PX-ON, Managed, L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Title - DELL N2224PX-ON Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
URL - https://www.dell.com/en-uk/work/shop/networking/dell-emc-networking-n2200-on/spd/networking-n2200-series/emea_n2200_on#features_section
WarrantyInfo - Lifetime Limited HW
Weight & dimensions - Depth - 400.1 mm
Weight & dimensions - Height - 43.4 mm
Weight & dimensions - Weight - 6.67 kg
Weight & dimensions - Width - 434.1 mm
