J5create USB-C DOCK DUAL 4K HDMI DUAL

ARTIKEL1 - USB-C DOCK DUAL 4K HDMI
ARTIKEL2 - DUAL
Brand - j5create
BrandPartCode - JCD3199-N
Breite - 0.16
Category - Laptop Docks & Port Replicators
EANCode - 4712795087666
Gewicht - 0.62
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 4712795087666
GTIN - 20847626000762
HERSTELLER - J5CREATE
Hoehe - 0.06
HSTNUMMER - JCD3199-N
Laenge - 0.2
Logistics data - Export Control Classification Number (ECCN) - EAR99
Logistics data - Master (outer) case gross weight - 3.2 kg
Logistics data - Master (outer) case height - 174 mm
Logistics data - Master (outer) case length - 249 mm
Logistics data - Master (outer) case width - 186 mm
Logistics data - Products per master (outer) case - 4 pc(s)

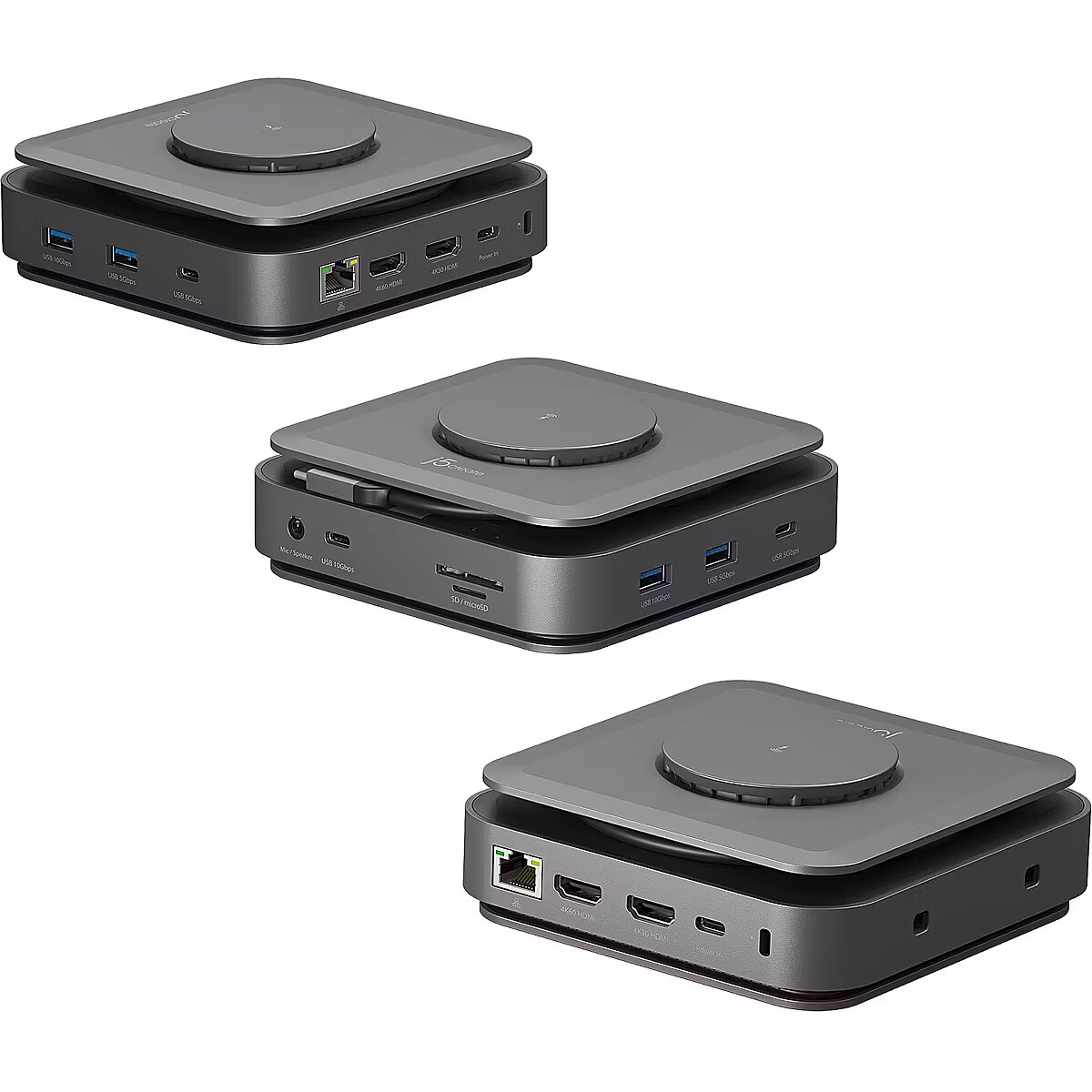

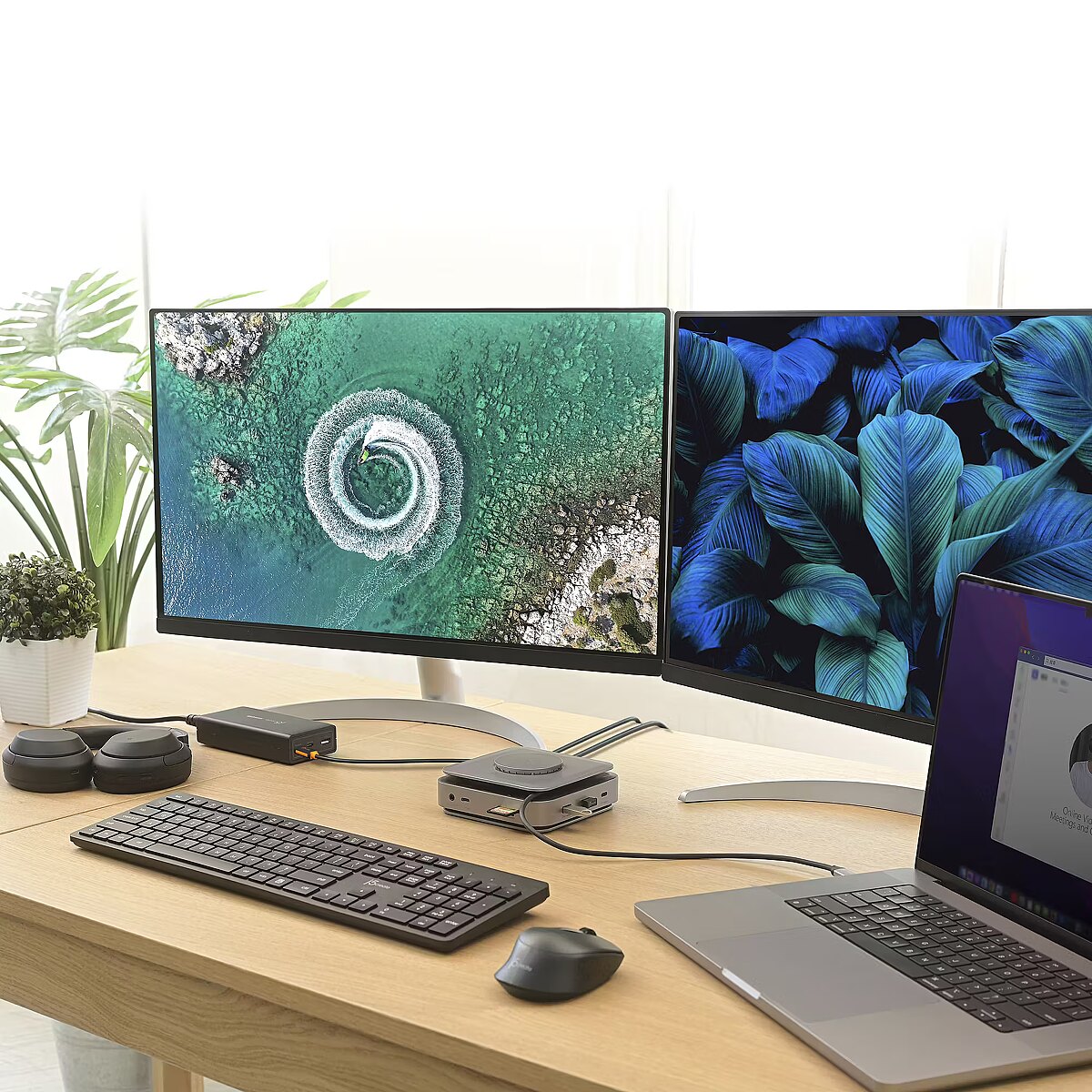

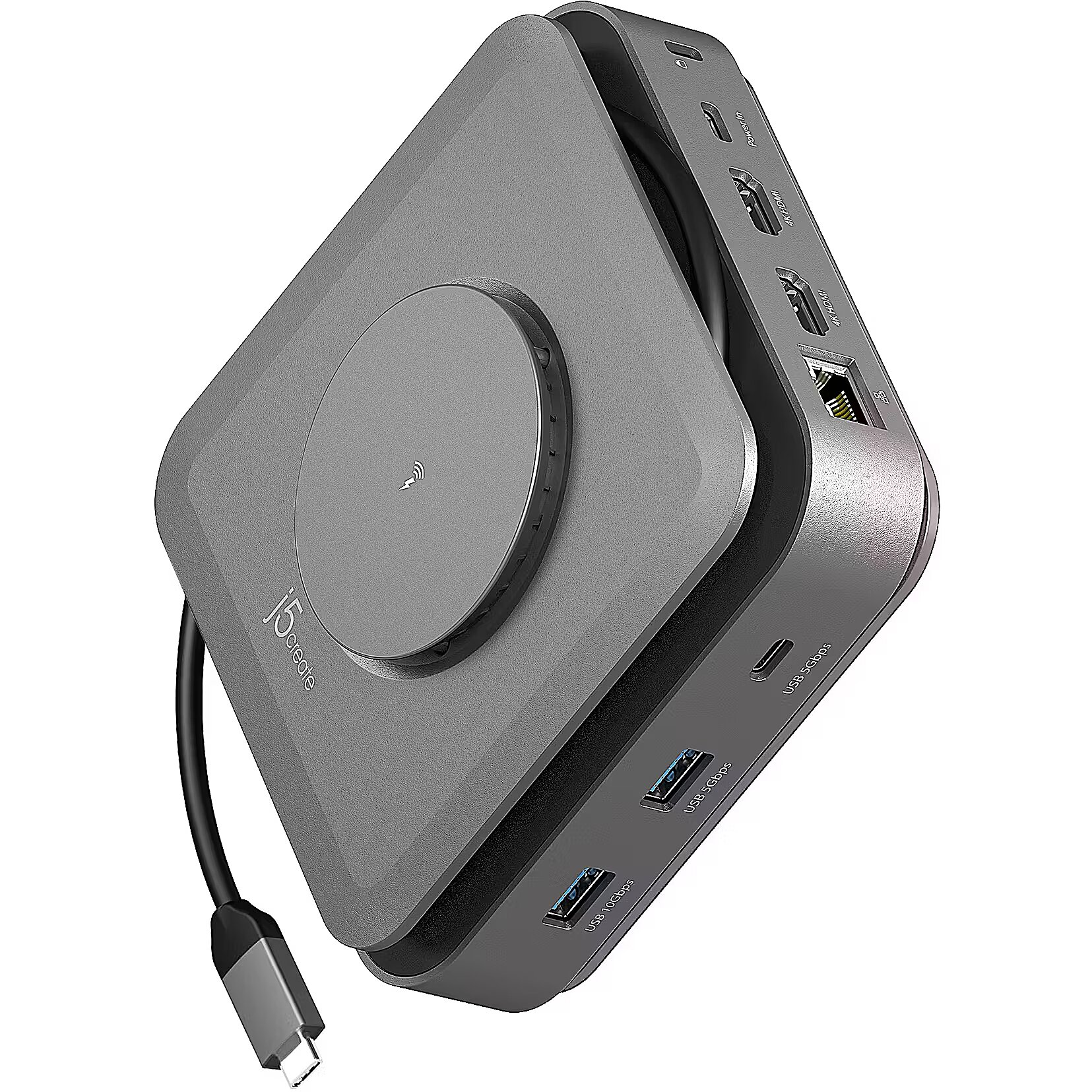

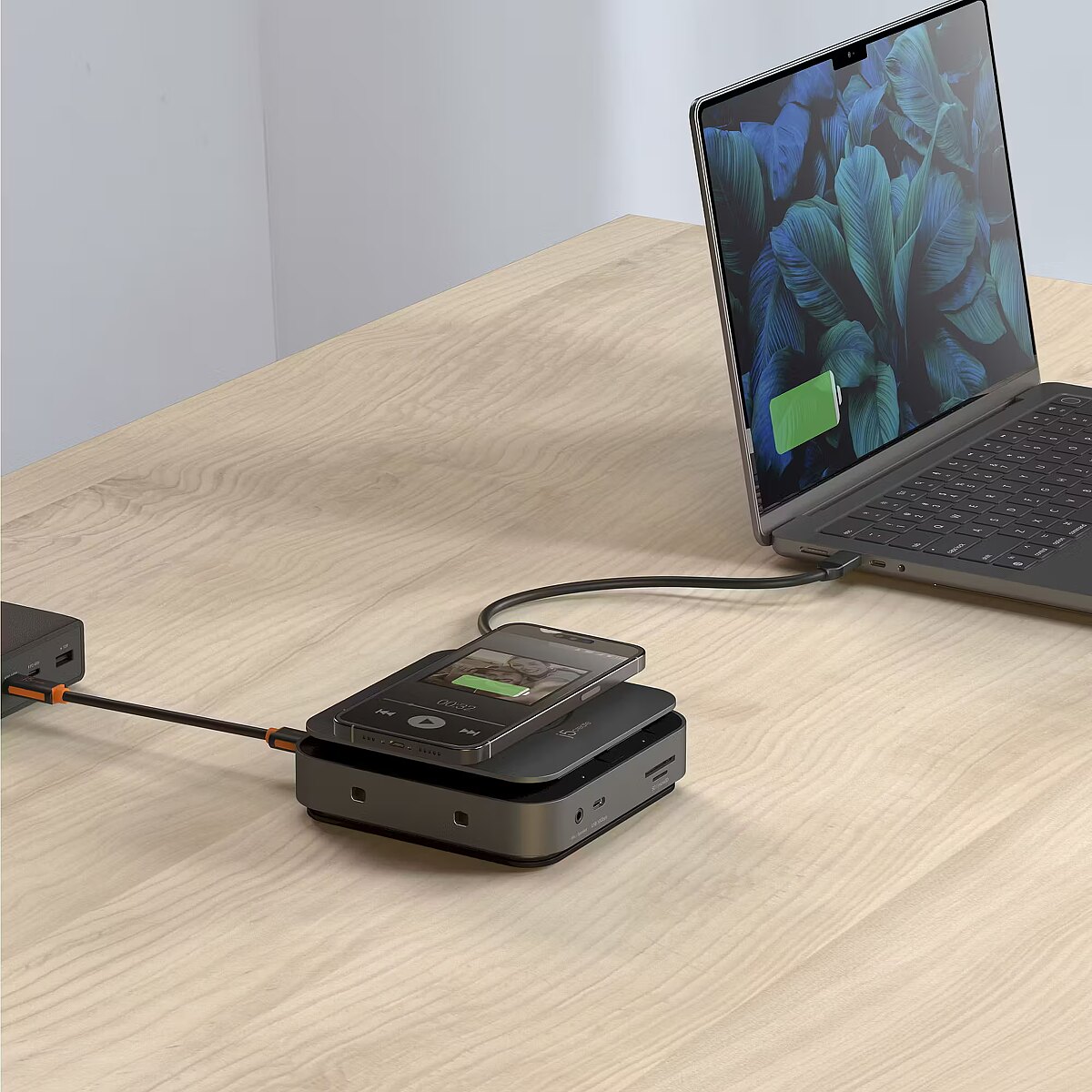

LongDesc - This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
LongProductName - USB-C Dock Dual 4K HDMI
LongSummaryDescription - j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Input current: 5 A. Width: 130 mm, Depth: 130 mm, Height: 40 mm
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 1000 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - -1 - 41 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -17 - 68 °C
Other features - Cable length - 0.695 m
Packaging content - AC adapter included - No
Packaging content - Manual - No
Packaging content - Packaging content - 1 - JCD3199 USB-C® Dock Dual 4K HDMI™

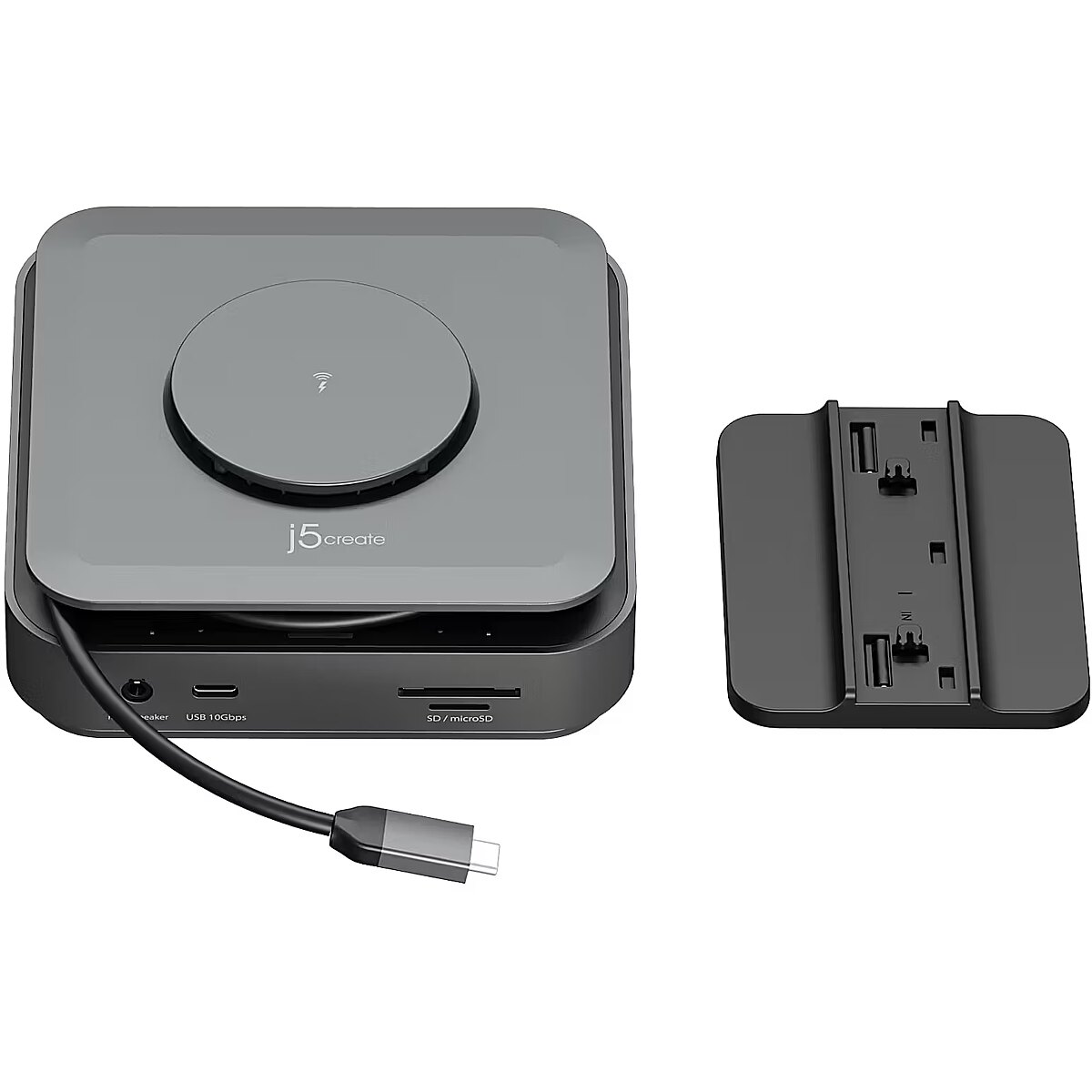

1 - Dock Holder
1 - Quick Installation Guide (QIG)
Packaging content - Quick start guide - Yes

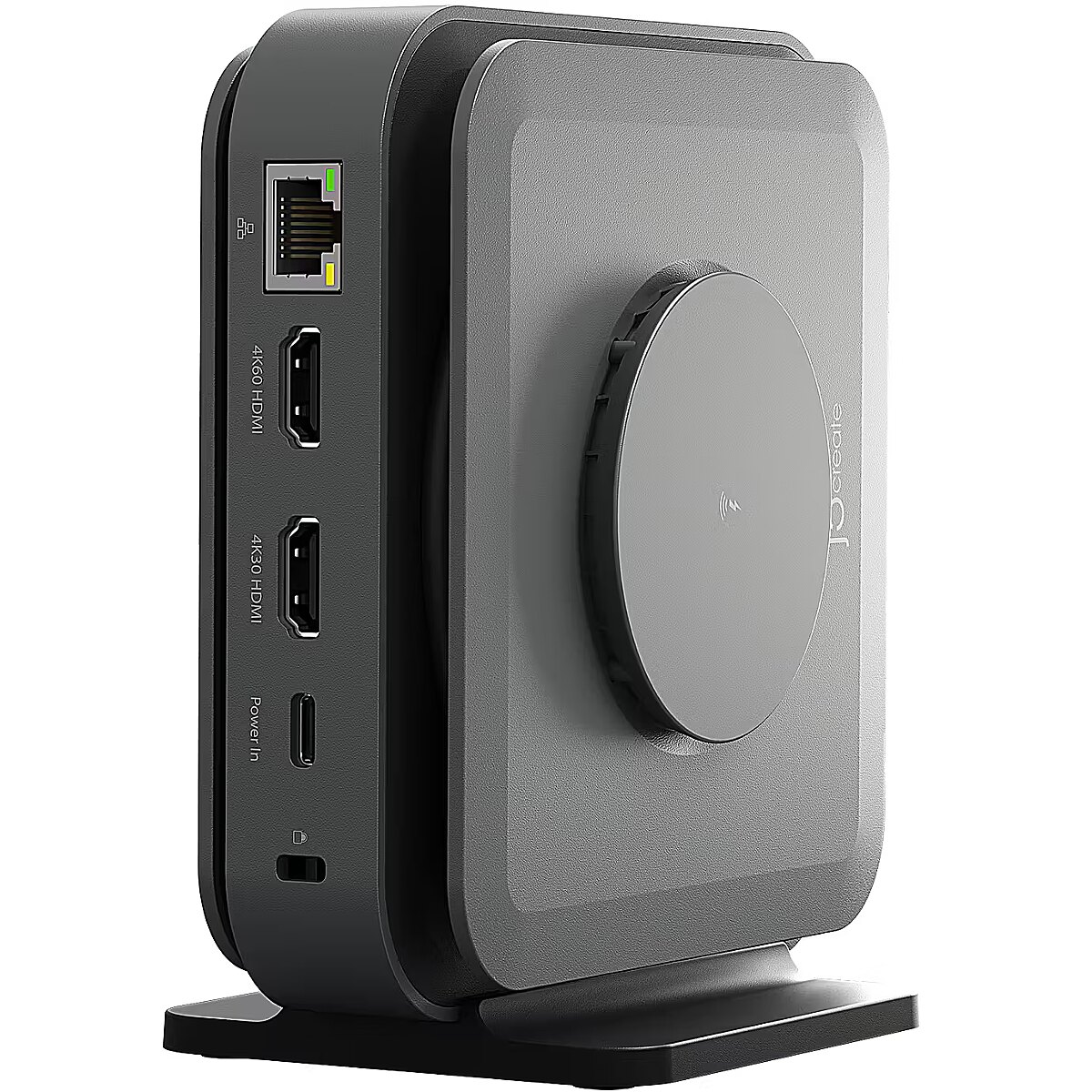

Packaging content - Stand included - Yes
Packaging content - User guide - No
Packaging data - Package depth - 170.5 mm
Packaging data - Package height - 56 mm
Packaging data - Package weight - 740 g
Packaging data - Package width - 154 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - Yes
Performance - Colour name - Space Grey
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 10 Gbit/s
Performance - Housing material - Aluminium
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Maximum refresh rate - 60 Hz
Performance - Product colour - Grey

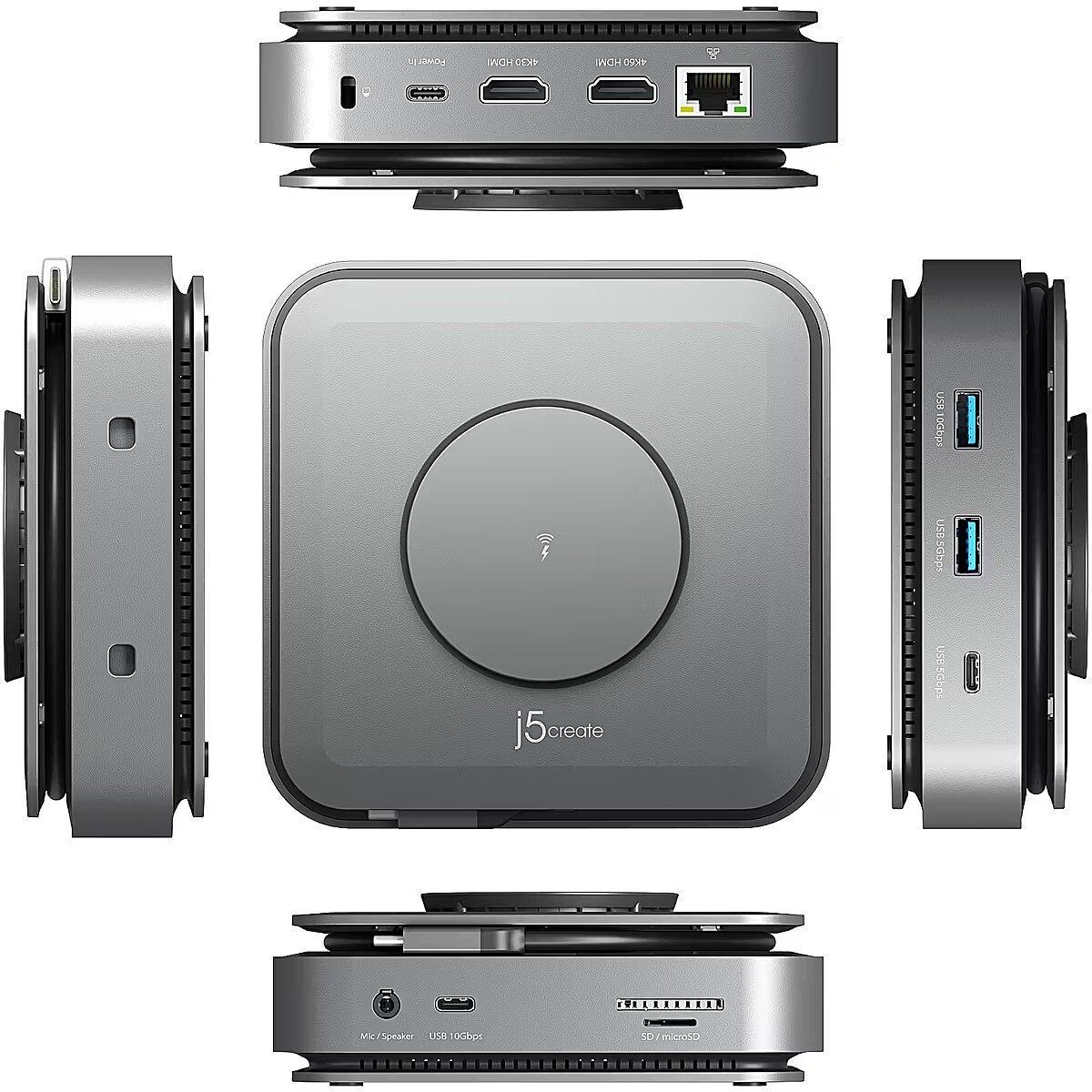

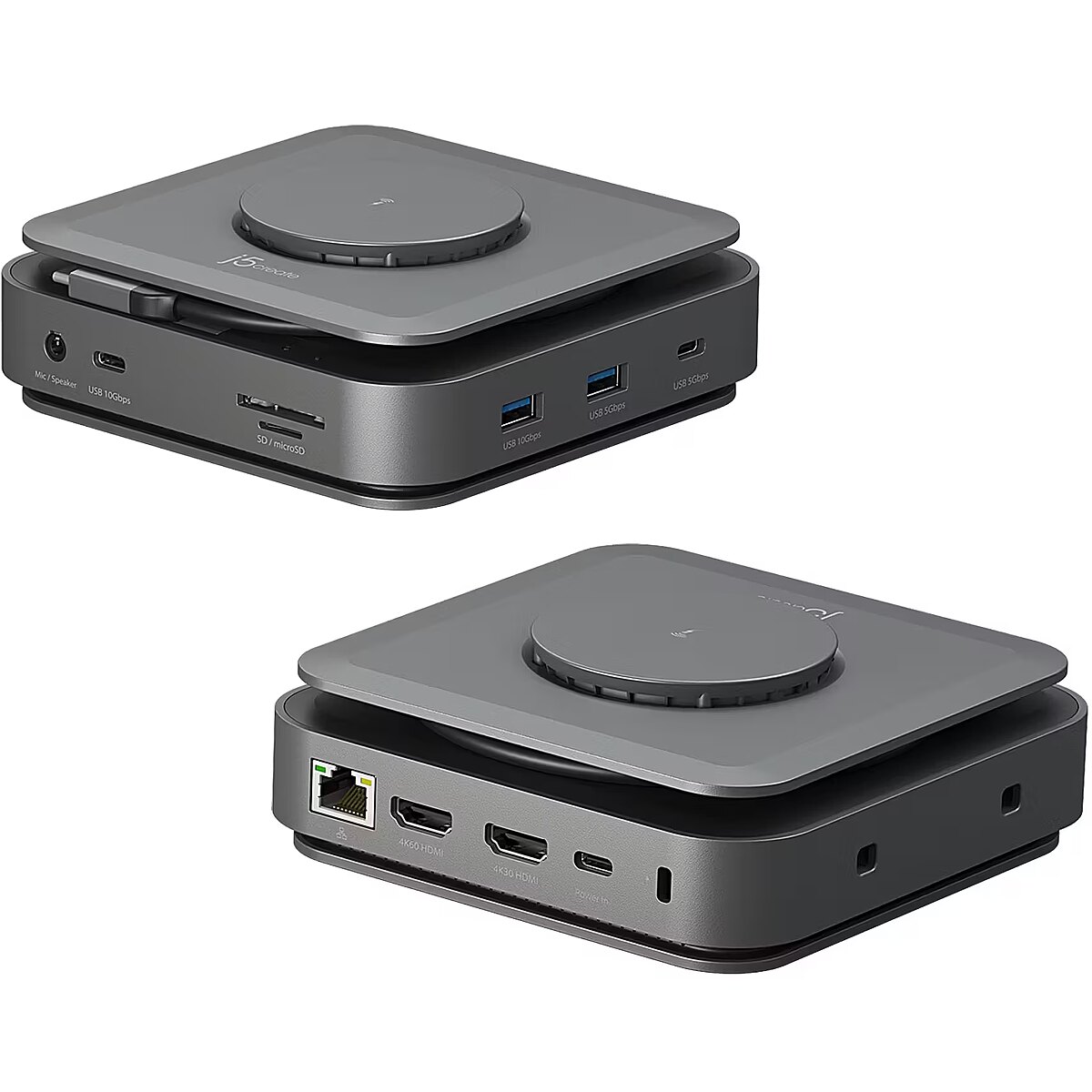

Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0/2.1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.1
Ports & interfaces - USB Power Delivery up to - 140 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - Input current - 5 A
Power - Output current - 5 A
Power - Output voltage - 20 V
Power - Power connector - USB Type-C
Power - Power source type - USB

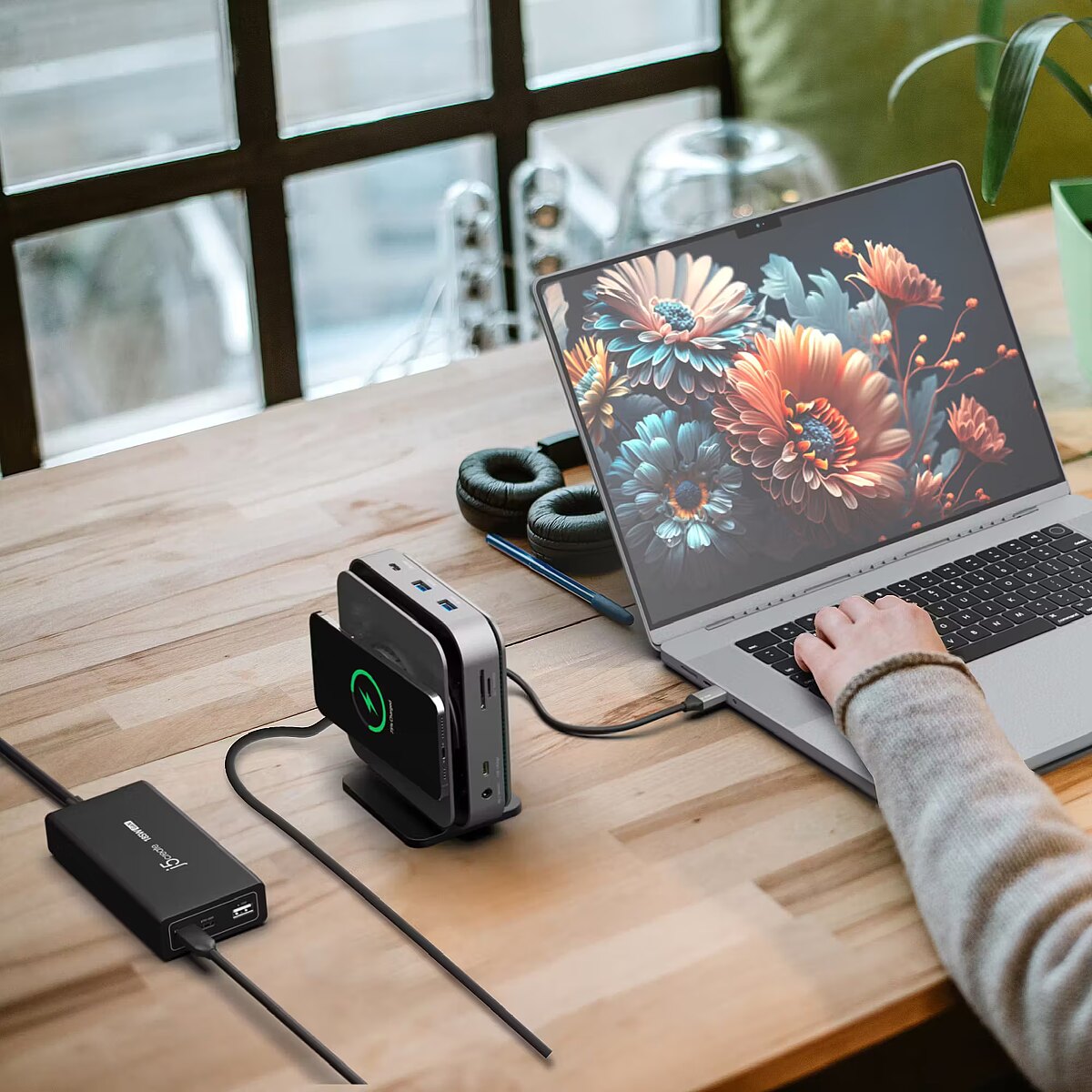

Power - Wireless charging - Yes
Power - Wireless charging power - 15 W
ProductName - JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey
ShortSummaryDescription - j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 140 W, 2.0/2.1, 3.5 mm, 1000 Mbit/s
Software - Mac operating systems supported - Yes
Software - Mobile operating systems supported - Yes
Software - Windows operating systems supported - Yes
Stck_Kart - 4
Stck_Pal - 0
Storno - N
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, REACH, RoHS
Technical details - Master (outer) case GTIN (EAN/UPC) - 20847626000762
Technical details - Warranty period - 2 year(s)
Title - j5create JCD3199 USB-C® Dock Dual 4K HDMI™, Space Grey
URL - https://en.j5create.com/
WarrantyInfo - 2 years
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 416 g
Weight & dimensions - Width - 130 mm
