ARTIKEL1 - 4K HDMI EXTENDER 4K 60HZ HDR
ARTIKEL2 - OVER CAT6 CABLING
Brand - StarTech.com
BrandPartCode - 4K70IC-EXTEND-HDMI
Breite - 0
Category - AV Extenders
EANCode - 0065030899208
Features - Audio output channels - 7.1 channels
Features - Cable types supported - Cat5e, Cat6
Features - Daisy chain - Yes
Features - Electrostatic Discharge (ESD) protection - 8 kV
Features - Electrostatic Discharge (ESD) protection - Yes
Features - HDCP - Yes
Features - HDCP version - 2.2
Features - High Dynamic Range (HDR) supported - Yes
Features - LED indicators - Yes
Features - Material - Metal
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 3840 x 2160 pixels
Features - Maximum transfer distance - 70 m
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Rack mounting - No

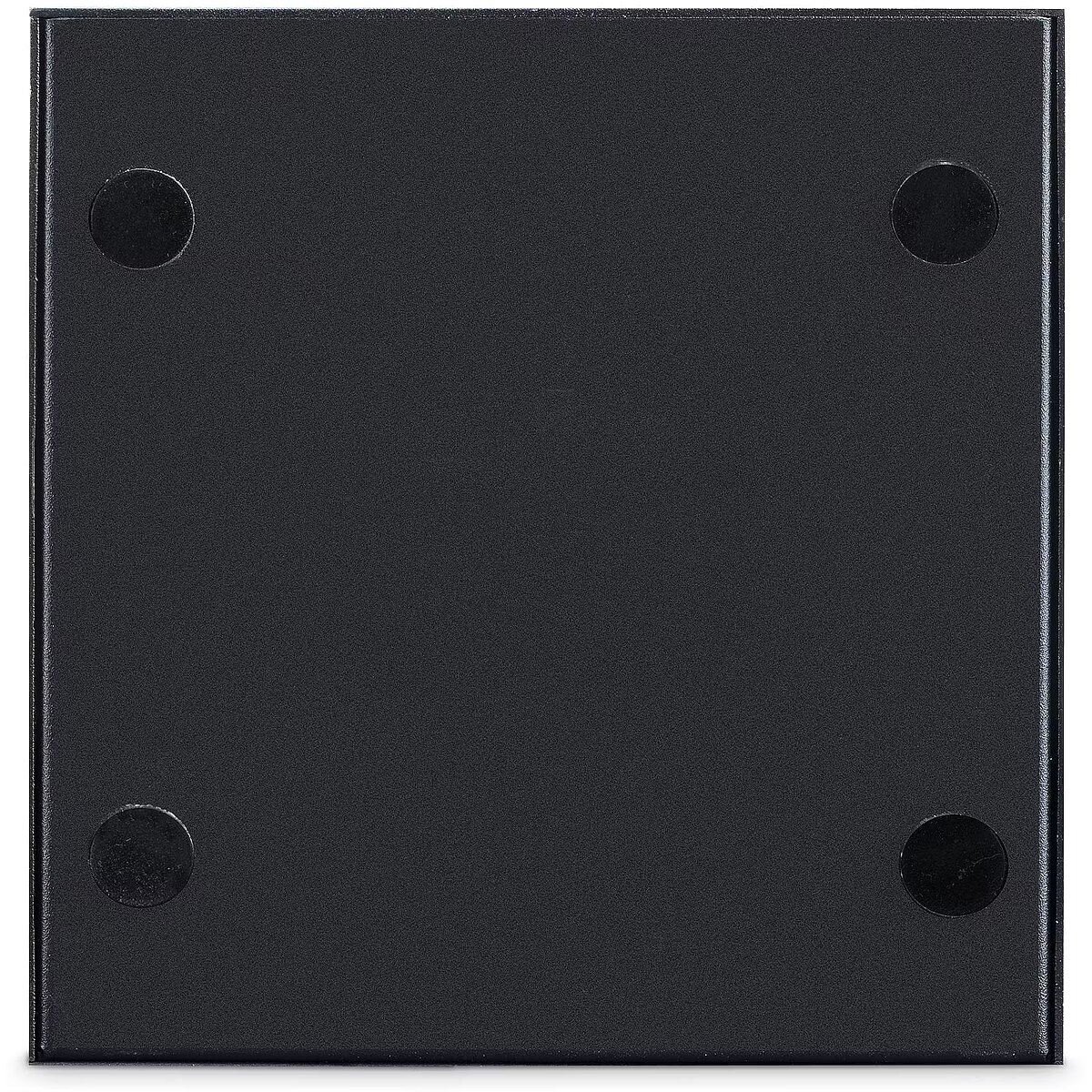

Features - Rubber feet - Yes
Features - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Features - Type - AV transmitter & receiver
Gewicht - 0.92
GRUPPE1 - Cables
GRUPPE2 - Peripheral Switch
GTIN - 0065030899208
GTIN - 065030899208
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - 4K70IC-EXTEND-HDMI
Laenge - 0
Logistics data - Master (outer) case height - 420 mm
Logistics data - Master (outer) case length - 270 mm
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 10 pc(s)

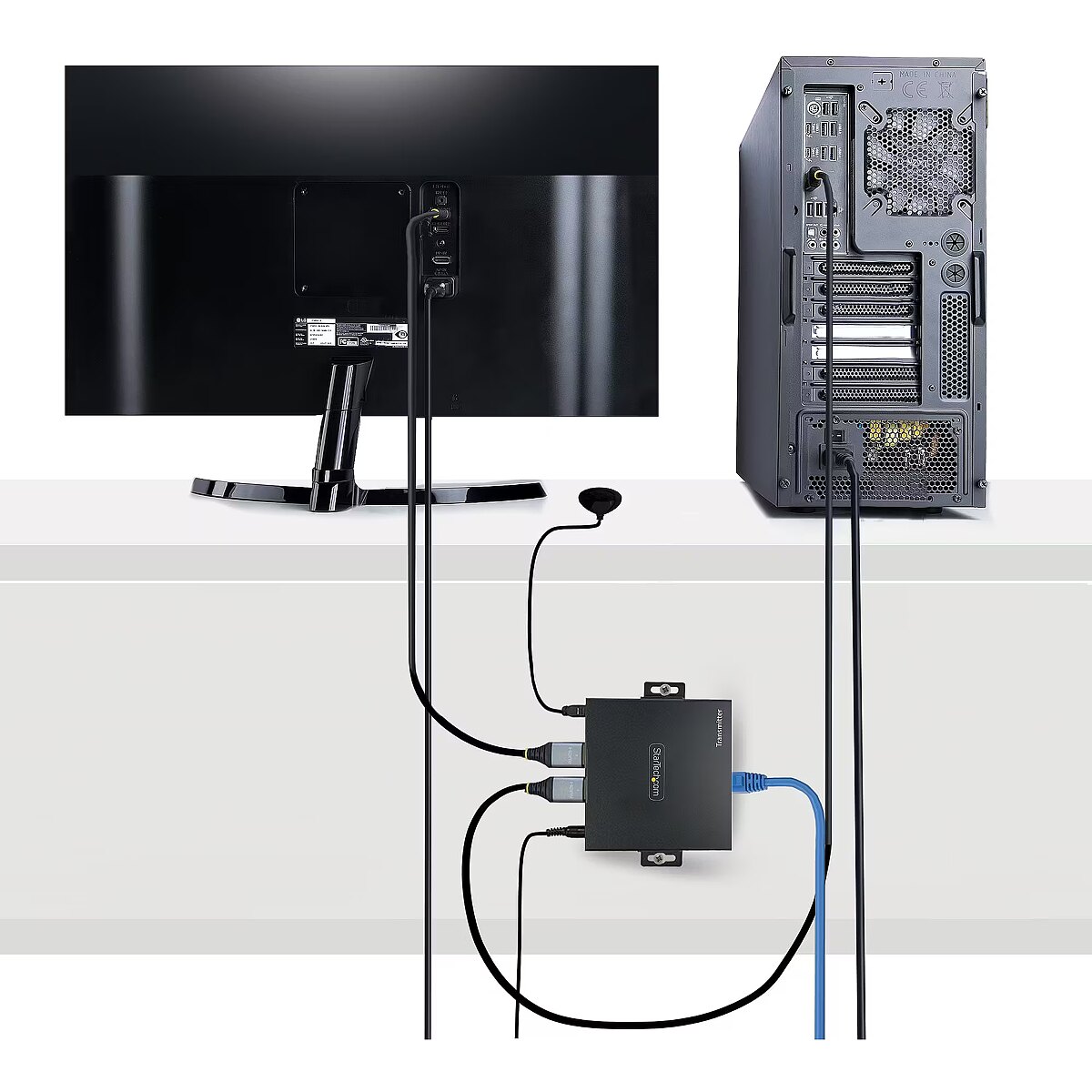

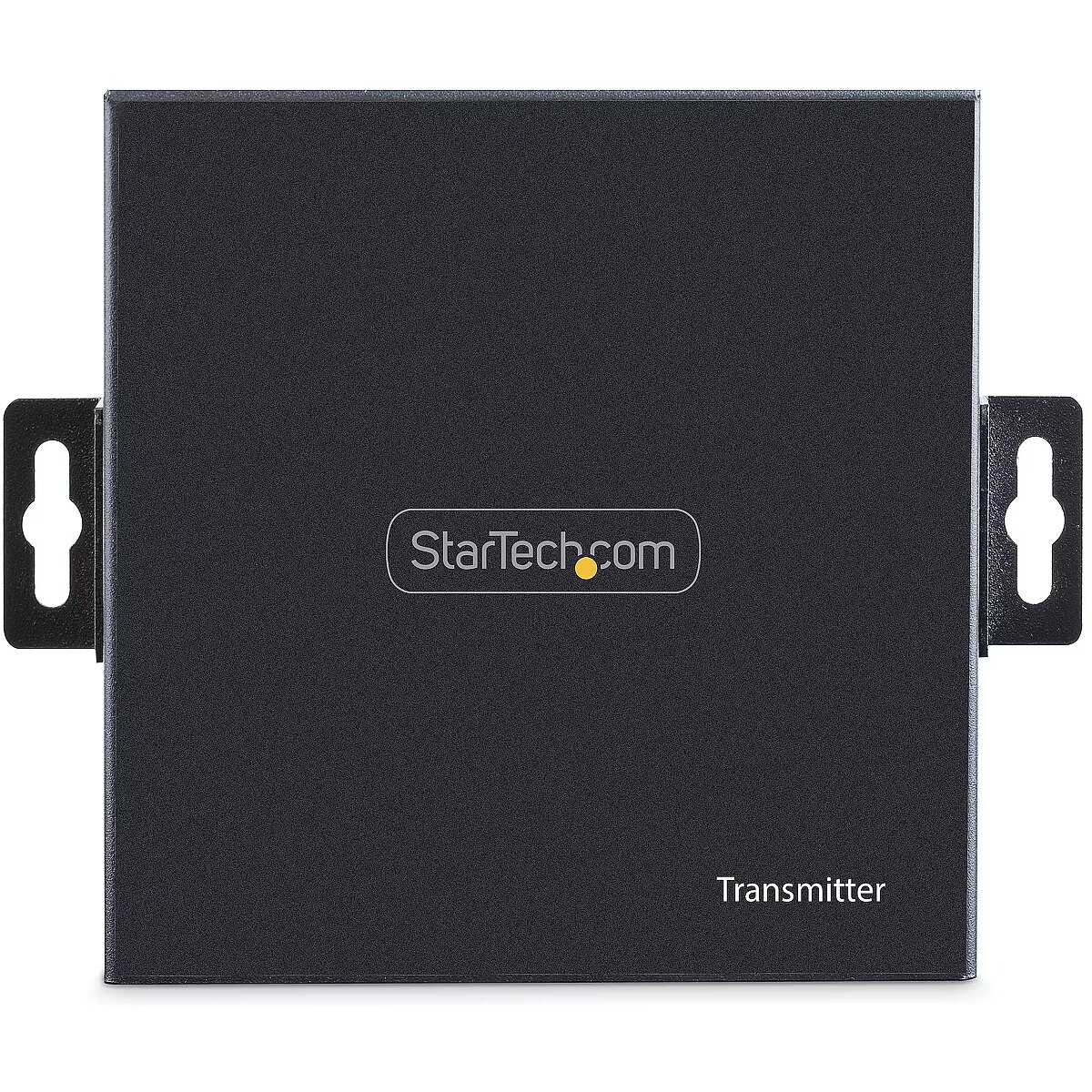

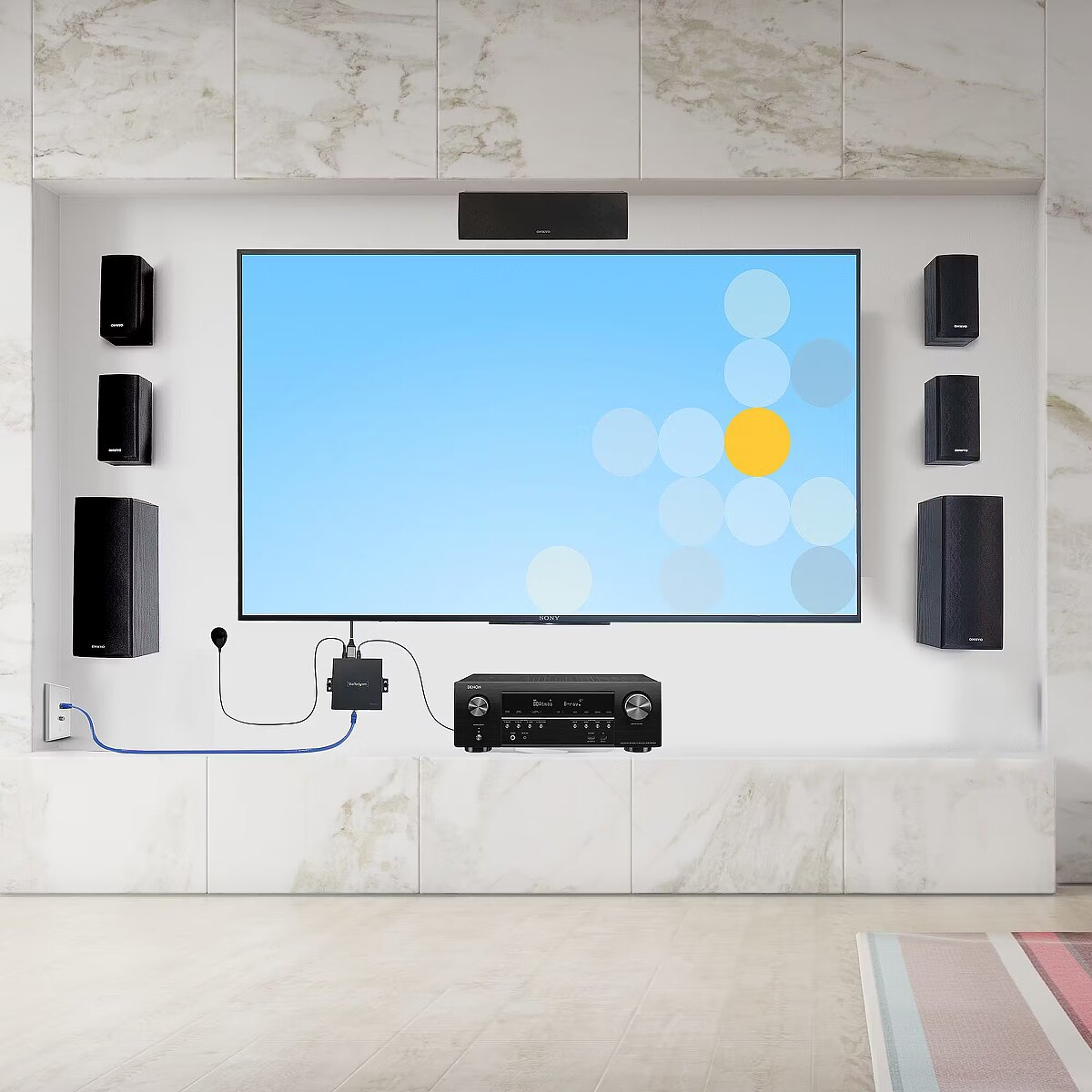

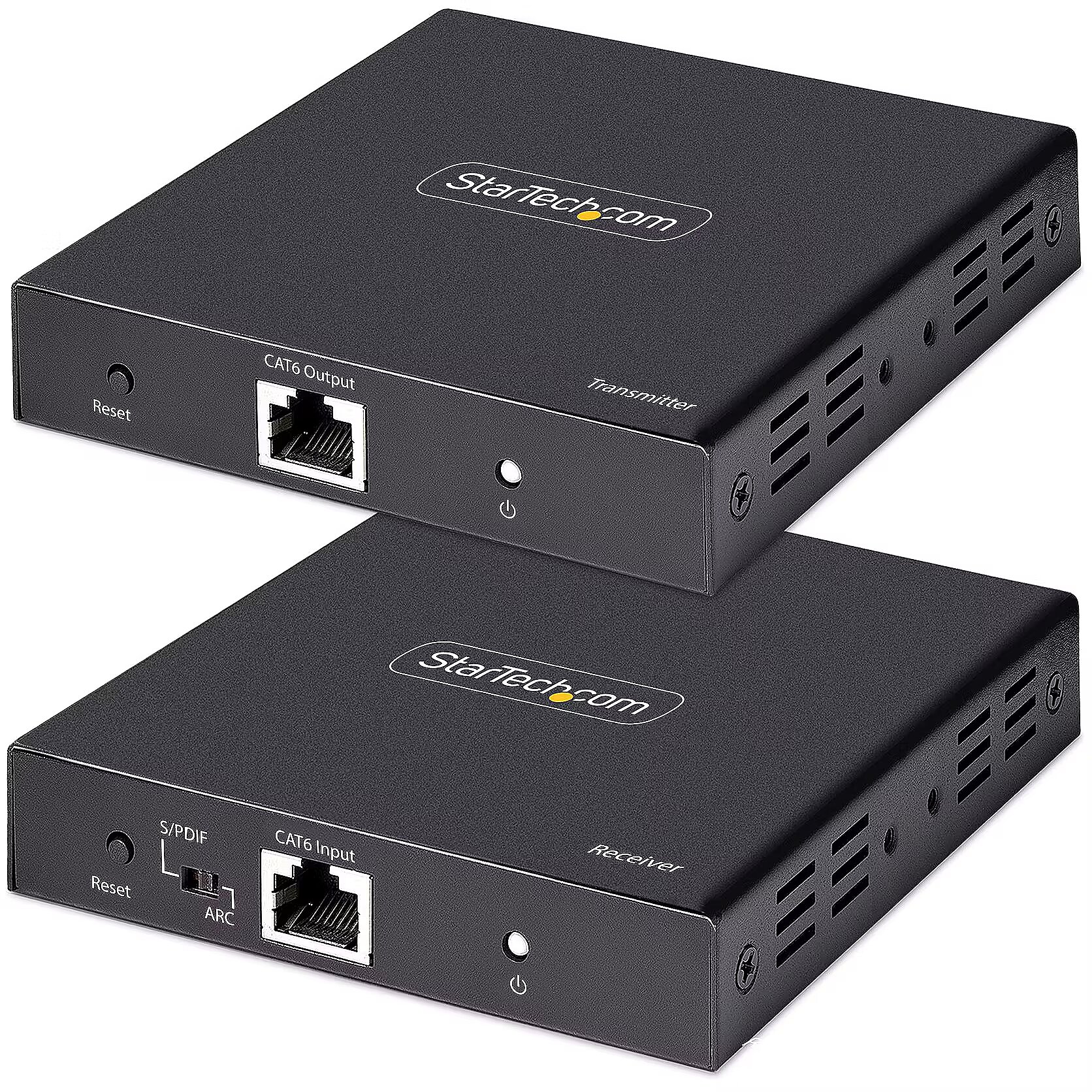

LongDesc - Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60HzThis HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.4K 60Hz ResolutionThis HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.Power-Over-CableConnect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.Versatile Installation OptionsThe 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
LongProductName - StarTech.com 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit
LongSummaryDescription - StarTech.com 4K70IC-EXTEND-HDMI. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, Input current: 0.3 A, Operating voltage (transmitter): 12 V. Width: 99 mm, Depth: 106 mm, Height: 26 mm. Package width: 240 mm, Package depth: 176 mm, Package height: 80 mm
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage temperature (T-T) - -30 - 70 °C

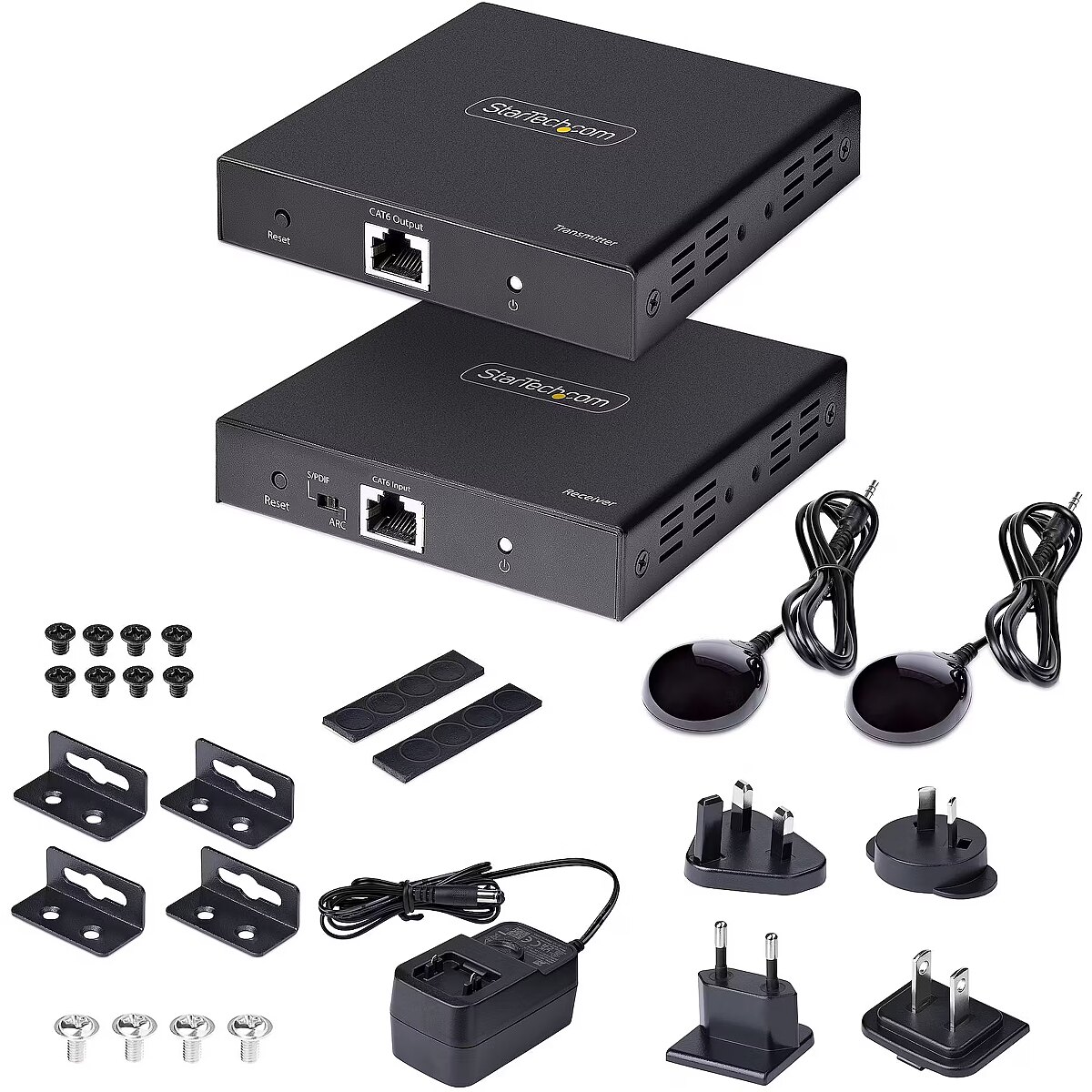

Packaging content - AC adapter included - Yes
Packaging content - IR blaster included - Yes
Packaging content - IR receiver included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 176 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 900 g
Packaging data - Package width - 240 mm

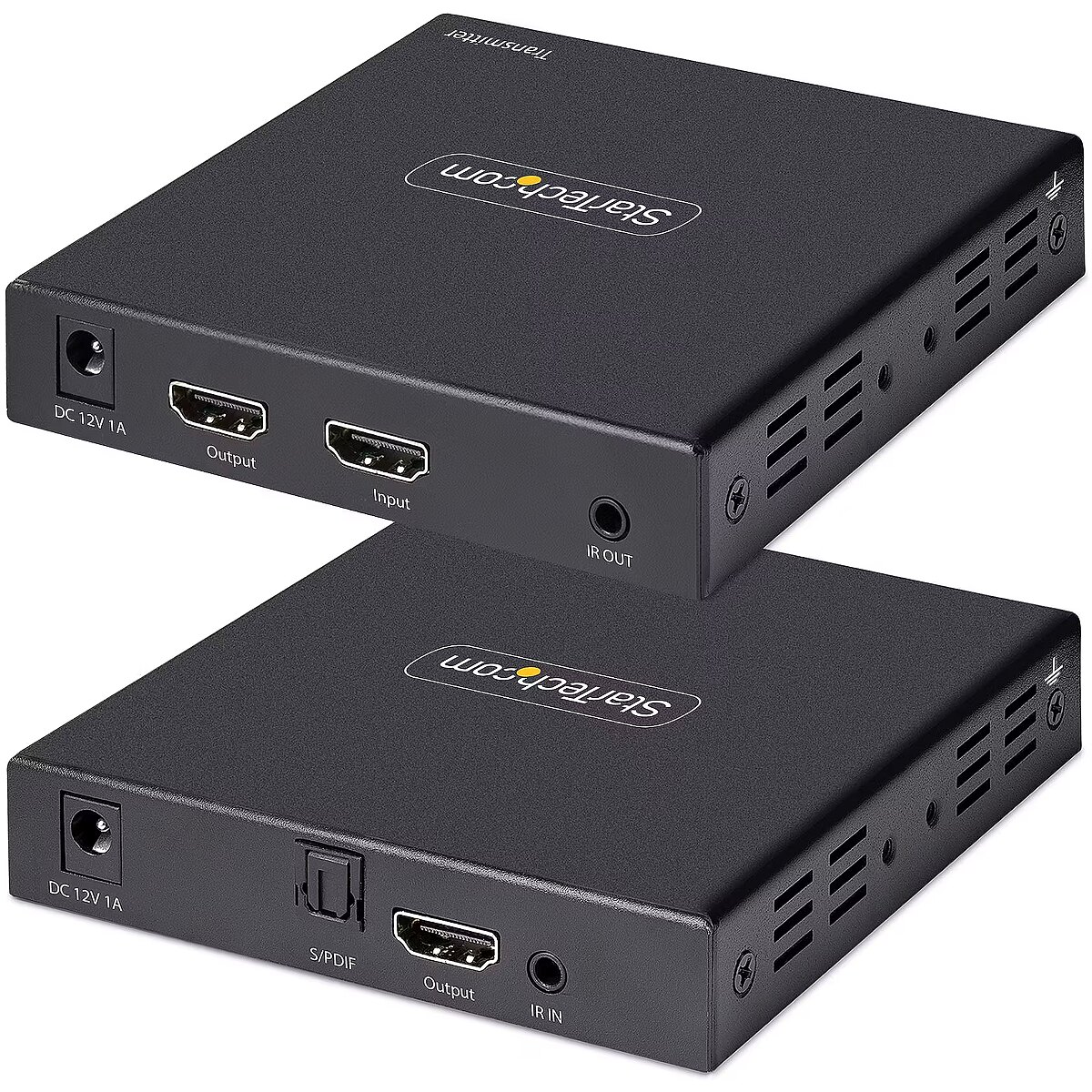

Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Digital audio optical out - 1
Ports & interfaces - HDMI in - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Number of HDMI outputs - 2
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Power - AC input voltage - 100 - 240 V
Power - External power adapter - Yes
Power - Input current - 0.3 A
Power - Operating voltage (transmitter) - 12 V
Power - Output current - 1 A
Power - Power consumption (typical) - 0.1 W
Power - Power plug type - Type M
ProductName - 4K70IC-EXTEND-HDMI
ShortSummaryDescription - StarTech.com 4K70IC-EXTEND-HDMI, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Stck_Kart - 10
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability compliance - Yes
Title - StarTech.com 4K70IC-EXTEND-HDMI AV extender AV transmitter & receiver Black
URL - https://www.startech.com/
WarrantyInfo -
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 210 g
Weight & dimensions - Width - 99 mm
