Accessories included -
Brand - QNAP
BrandPartCode - QM2-2P-244A
Card Form Factor - Low profile
Category - Interface Cards/Adapters
Category - Root/Electronics/Networks and communication/NAS - file servers
Category Code - NIC
Chipset type -
Controller type - SSD

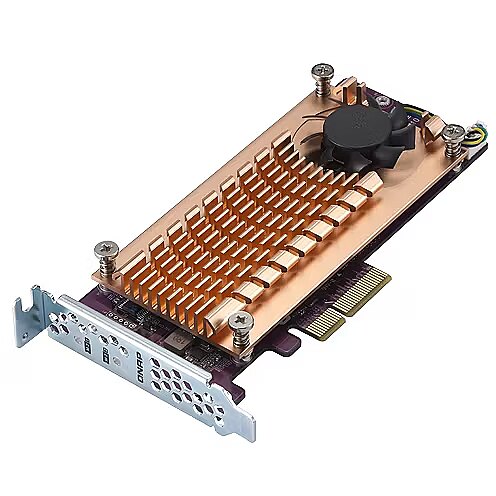

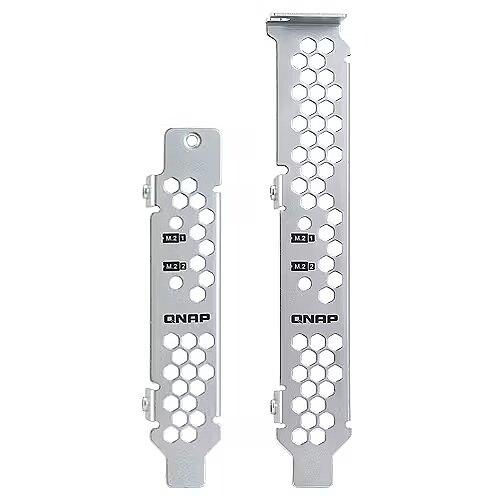

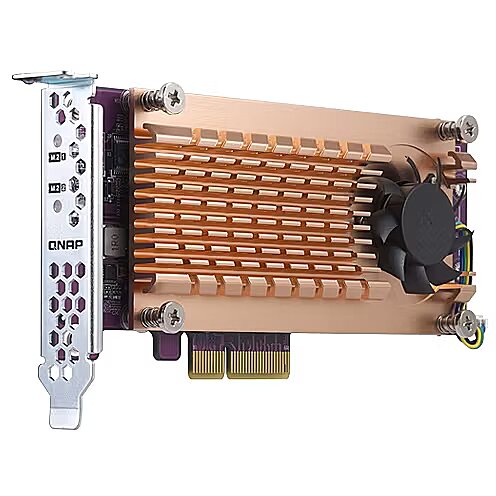

Description - Dual M.2 22110/2280 PCIe NVMe SSD expansion card Connector: 2 x M.2 22110 or 2280 PCIe (Gen2 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen2 x 4 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 147.15 x 68.9 x 20.6 mm; 5.79 x 2.71 x 0.81 inch
Description - Dwuportowa karta rozszerzeń SSD PCle NVMe M.2 22110/2280 Karty PCle serii QM2 zapewniają dodatkową obsługę dysków M.2 SSD na serwerze QNAP NAS, umożliwiając użytkownikom konfigurację pamięci podręcznej SSD, puli pamięci podręcznej lub woluminu Qtier, co poprawi ogólną wydajność NAS.
Design - Internal - Yes
Design - Product colour - Copper
dimension depth - 195 mm
dimension height - 120 mm
Dimensions - 147.15 x 68.9 x 20.6 mm
dimension weight - 280 g
dimension width - 50 mm
ean - 4713213512913
EAN - 4713213512913
Eans - 4713213512913
Full Description Line - Form Factor Low profile
Gross Weight Kg - 0,3
GTIN - 0885022014842
GTIN - 885022014842
GTIN - 4713213512913
guarantee - 12
guarantee_type - normal
Interface - PCIe
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Fast, efficient, and easy-to-useThe efficient architecture of the QM2-2P-244A allows you to easily install NVMe SSDs and maximize their performance with a quiet cooling module.Keep SSD coolA quiet cooling module (heatsink and smart fan) keeps your SSDs running with dependable high performance.SSD cache accelerationAdd an SSD cache or enable Qtier (QNAP’s auto-tiering technology) to your NAS to improve overall system performance and maximize storage utilization.Super-fast NVMe SSD storage volumePhotographers and videographers can tackle high-resolution RAW multimedia editing directly on NVMe SSD volumes. RAID configurations can help prevent data loss from drive failure.
LongProductName - PCIe, 2 x M.2, NVMe, PCIe Gen2 x4
LongSummaryDescription - QNAP QM2. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 2.0. Product colour: Copper. Width: 68.9 mm, Depth: 147.2 mm, Height: 20.6 mm. Compatibility: QNAP TS-431XU, TS-432XU-RP, TS-453B, TS-453BT3, TS-453BU, TS-453BU-Rp, TS-470, TS-470 Pro,...
Manufacturer Code - QM2-2P-244A
Manufacturer Name - QNAP
Name - QNAP karta rozszerzeń QM2-2P-244A
name - QNAP QM2-2P-244A extension card
Other features - Uchwyt: Niskoprofilowy (domyślny). Załączone są także uchwyty: niskoprofilowy płaski i pełnej wysokości.
Other features - Compatibility - QNAP TS-431XU, TS-432XU-RP, TS-453B, TS-453BT3, TS-453BU, TS-453BU-Rp, TS-470, TS-470 Pro, TVS-470, TVS-471, TVS-471U, TVS-471U-RP, TVS-473, TVS-473eTS-653B, TS-670, TS-670 Pro, TS-677, TVS-670, TVS-671, TVS-673, TVS-673e, TVS-682, TVS-682T, TS-831XU, TS-832XU, TS-853BU, TS-853BU-RP, TS-1231XU, TS-1232XU, TS-1232XU-RP, TS-1253BU
Packaging data - Mounting brackets included - Yes
Ports - 2 x M.2 PCIe
Ports & interfaces - Expansion card standard - PCIe 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2
producer - QNAP
Producer - Qnap
ProducerCode - QM2-2P-244A
ProductName - QM2
Shipping Box Depth Shipping/Package Box Dimensions - 19.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.28 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
ShortDescription -
Short description - QNAP Dual M.2 PCIe SSD Erweiterung PCIe Gen2 x4 QM2-2P-244A
ShortSummaryDescription - QNAP QM2, PCIe, M.2, PCIe 2.0, Copper, 68.9 mm, 147.2 mm
System Requirements -
Title - QNAP QM2 interface cards/adapter Internal M.2
Unit Box Height - 0.055
Unit Box Length - 0.195
Unit Box Width - 0.125
Unit Brutto Volume - 0.001341 cubm
Unit Gross Weight - 0.28 kg
Unit Net Weight - 0.2 kg
URL - https://shop.qnap.com/index.php?route=product/product&product_id=262
Vendor Homepage - www.qnap.com/en/product/qm2-m.2ssd
vendpn - QM2-2P-244A
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 147.2 mm
Weight & dimensions - Height - 20.6 mm
Weight & dimensions - Width - 68.9 mm
