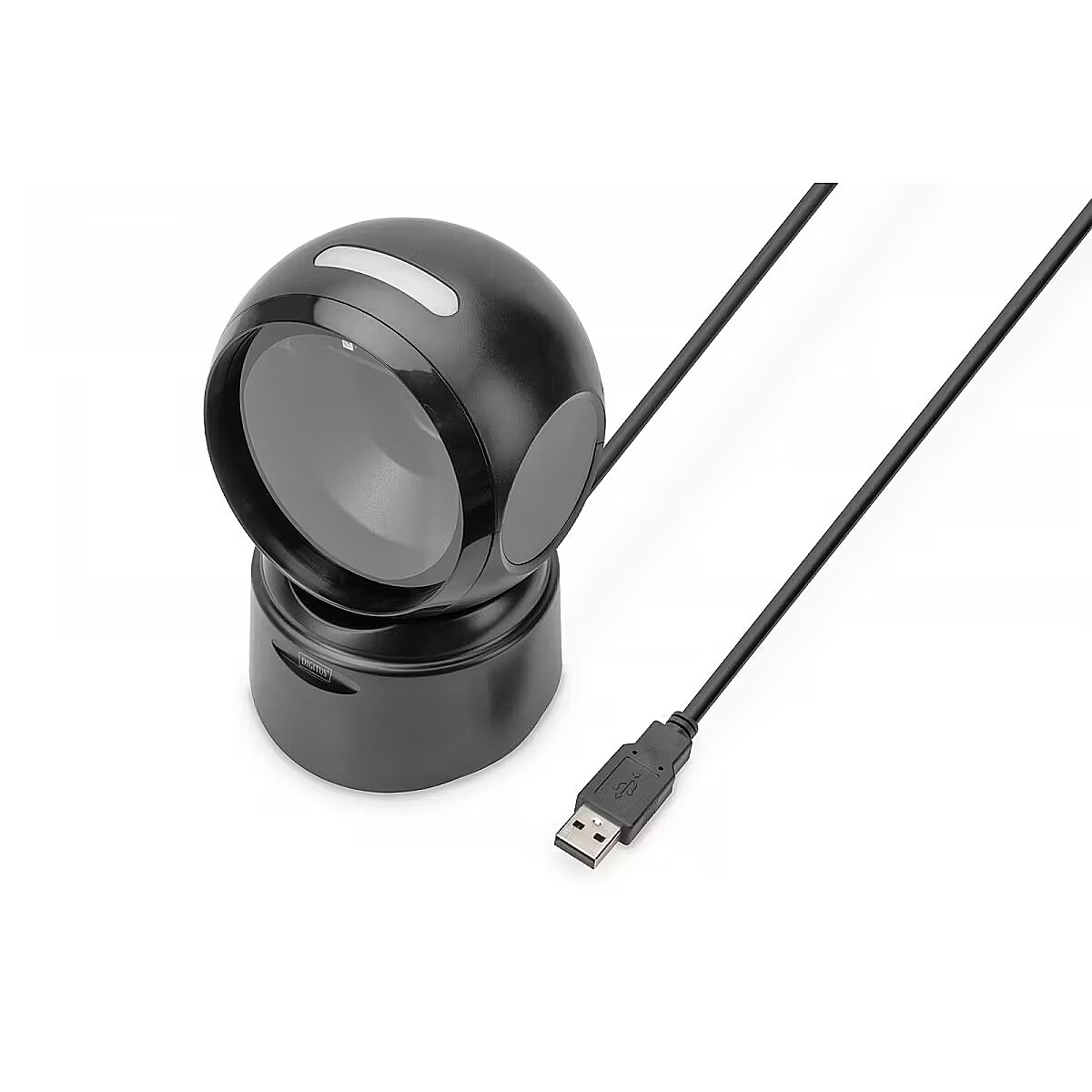

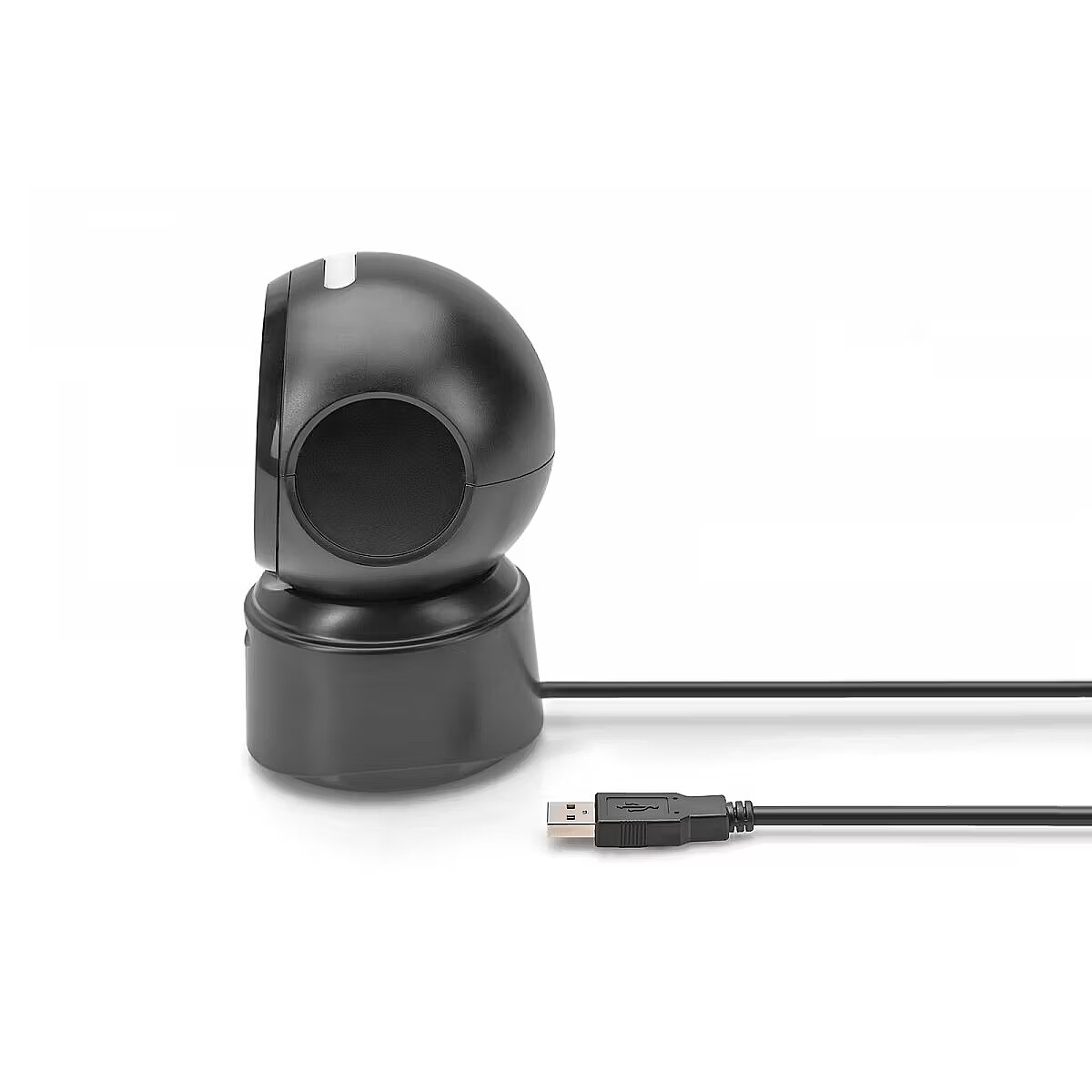

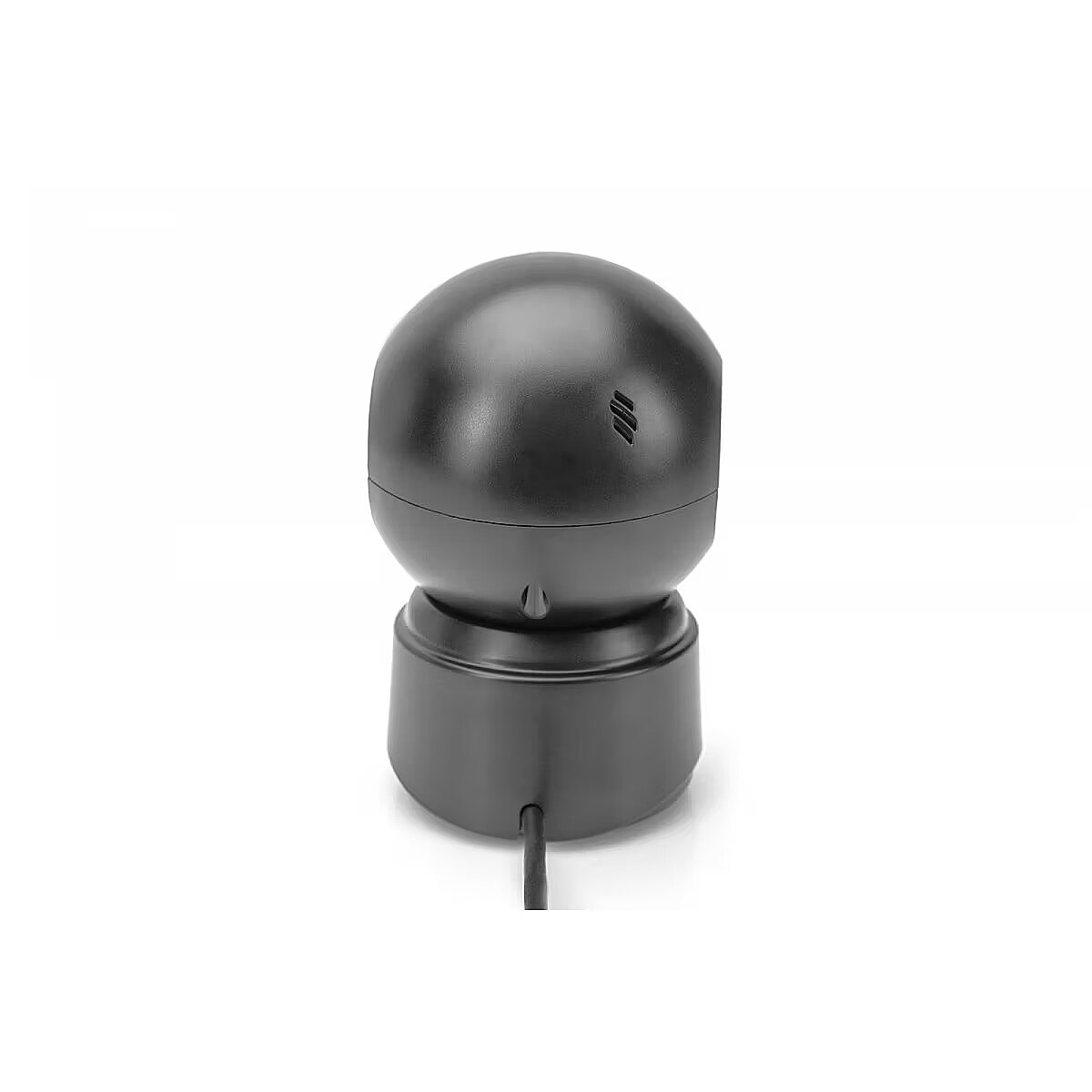

Digitus Desktop Barcode Scanner DA-81005

Accessories included - 1x 2D barcode scanner with 1.4 m USB cable 1x quick installation guide
Barcodes - 1D
Barcodes - 2D
Code - DA-81005
Color - Black
Description - Desktop barcode scanner with a scanning capacity of up to 200 scans/minute and an elegant design for reliable use at the checkouts of pharmacies, supermarkets and other commercial facilities. The DIGITUS 2D barcode scanner with a high-resolution and motion-independent CMOS sensor enables fast and accurate scanning of static and non-static barcodes. Suitable for checkouts in pharmacies, supermarkets and other commercial facilities. Detects printed QR codes and QR codes displayed on screens (e.g. e-wallets). With 200 scans per minute, this bidirectional scanner delivers the best results. Suitable for single and multi-dimensional barcodes such as barcodes and QR codes. The scanner is also able to read QR codes from displays, ideal for scanning QR codes for mobile payments. Each scan is confirmed with a visual and audio signal, supporting the most popular encoding types. Large scanning angles further speed up barcode recognition. Precise, high-resolution 1D and 2D barcode scanning (barcodes/QR codes) 200 scans per minute Reads barcodes on screens - ideal for payments via smartphone / QR code (e.g. e-wallet) Perfect for retail, logistics and all types of business Anti Inference: External light sources do not affect scanning The integrated infrared sensor automatically activates the scanner when a barcode is held in the scanning area Compact design with a swivel head allows for space on the cashier's desk
dimensionalWeight - 428
dimension depth - 100 mm
dimension height - 150 mm
dimension weight - 382 g
dimension width - 100 mm
EAN - 4016032490630
ean - 4016032490630
guarantee - 24
guarantee_type - external
Logistics data - UK Trade Tariff code - 84719000
Max scan distance - 10 cm
name - Desktop Barcode Scanner DA-81005
Name - Digitus | 2D Desktop USB Barcode Scanner DA-81005
Other features - Power consumption: 5V DC, 235mA Power supply: USB Processor: ARM 32-Bit Cortex Interface: USB Bit error rate: 1/5 million, 1/20 million Resolution: 1D: 4mil, 2D: 10mil Depth of field: 3.3mil @ 2mm-100mm, 10mil @2mm-350m; 15.6 mil @ 5 mm - 600 mm; 35mil @ 10mm-1000mm Reading angle: Angle of rotation 360°, angle of inclination 60°, angle of declination 60° Reading 1D codes: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight, 2 of 5 Industrial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E,EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omn Reading 2D codes: DOT Code, Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN Compatibility with Windows / Android / iOS / Mac / Linux Plug and Play - no additional drivers required
Other scan parameters -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 140.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 200.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 386 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > TI weight (kg) - 0.1 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Cables included - USB
Packaging data - Package depth - 105 mm
Packaging data - Package height - 170 mm
Packaging data - Package weight - 433.333 g
Packaging data - Package width - 120 mm
Performance - Built-in processor - Yes
Performance - Country of origin - China
Performance - Processor architecture - ARM Cortex-A7
Performance - Product colour - Black
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Standard interfaces - USB
Power - Power source type - USB
producer - Digitus
producerCode - DA-81005
productName - Digitus 2D Desktop USB Barcode Scanner
productSize - Normal
Scanning - 2D (matrix & stacked) barcodes supported - Aztec Code
Scanning - 2D (matrix & stacked) barcodes supported - CodaBlockA
Scanning - 2D (matrix & stacked) barcodes supported - CodaBlockF
Scanning - 2D (matrix & stacked) barcodes supported - Composite Codes
Scanning - 2D (matrix & stacked) barcodes supported - Data Matrix
Scanning - 2D (matrix & stacked) barcodes supported - Dot Code A
Scanning - 2D (matrix & stacked) barcodes supported - Han Xin
Scanning - 2D (matrix & stacked) barcodes supported - MaxiCode
Scanning - 2D (matrix & stacked) barcodes supported - MicroPDF417
Scanning - 2D (matrix & stacked) barcodes supported - PDF417
Scanning - 2D (matrix & stacked) barcodes supported - QR Code
Scanning - Linear (1D) barcodes supported - China Post
Scanning - Linear (1D) barcodes supported - Codabar
Scanning - Linear (1D) barcodes supported - Code 11
Scanning - Linear (1D) barcodes supported - Code 32
Scanning - Linear (1D) barcodes supported - Code 39
Scanning - Linear (1D) barcodes supported - Code 93
Scanning - Linear (1D) barcodes supported - Code 128
Scanning - Linear (1D) barcodes supported - EAN-8
Scanning - Linear (1D) barcodes supported - EAN-13
Scanning - Linear (1D) barcodes supported - GS1 DataBar
Scanning - Linear (1D) barcodes supported - GS1 Databar Limited
Scanning - Linear (1D) barcodes supported - GS1 DataBar Omnidirectional
Scanning - Linear (1D) barcodes supported - GS1-128 (UCC/EAN-128)
Scanning - Linear (1D) barcodes supported - Industrial 2 of 5
Scanning - Linear (1D) barcodes supported - Interleaved 2 of 5
Scanning - Linear (1D) barcodes supported - Matrix 2 of 5
Scanning - Linear (1D) barcodes supported - MSI
Scanning - Linear (1D) barcodes supported - UPC-A
Scanning - Linear (1D) barcodes supported - UPC-E
Scanning - Maximum scan width - 10 cm
Scanning - Read rate (max) - 200 reads/s
Scanning - Scanner type - 1D/2D
Scanning - Sensor type - CMOS
Scanning - Type - Barcode module bar code reader
Scan signal - Light
Scan signal - Sound
Scan technology - CMOS
sizeX - 170
sizeY - 120
sizeZ - 105
Technical details - Package volume - 2142 cm³
Technical details > Gross weight - 1.06 kg
Technical details > Net weight - 0.96 kg
Technical details > Producer - Digitus
Technical details > Producer product family - 2D Desktop USB Barcode Scanner
Technical details > Producer product name - DA-81005
Type - Presentation
vendpn - DA-81005
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 385
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Weight - 250 g
Weight & dimensions - Width - 85 mm
Wireless communication - No
