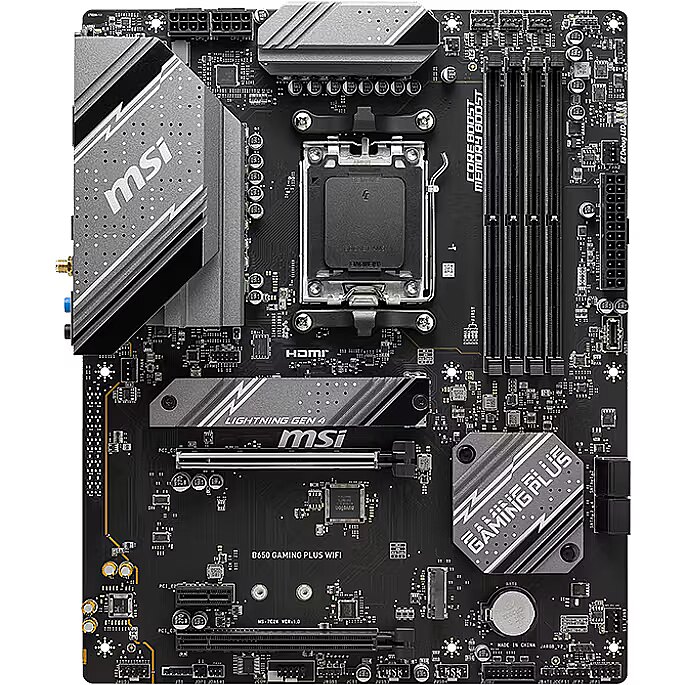

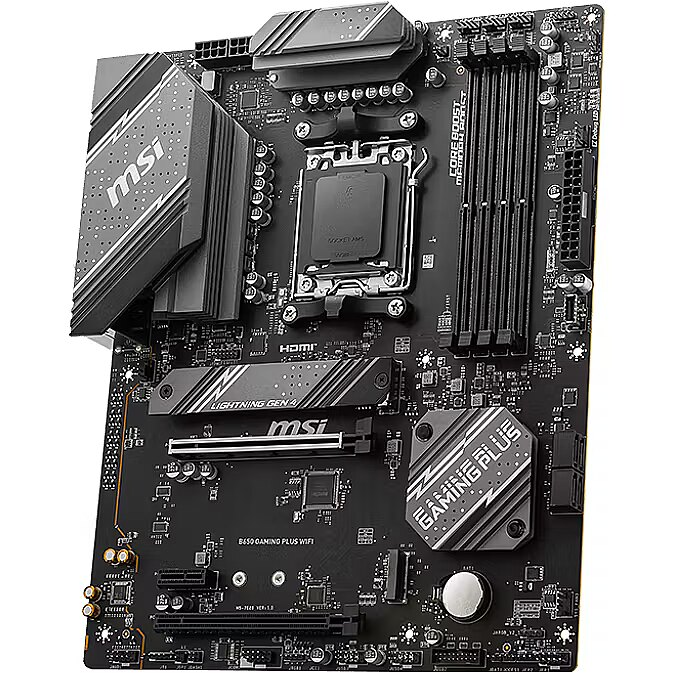

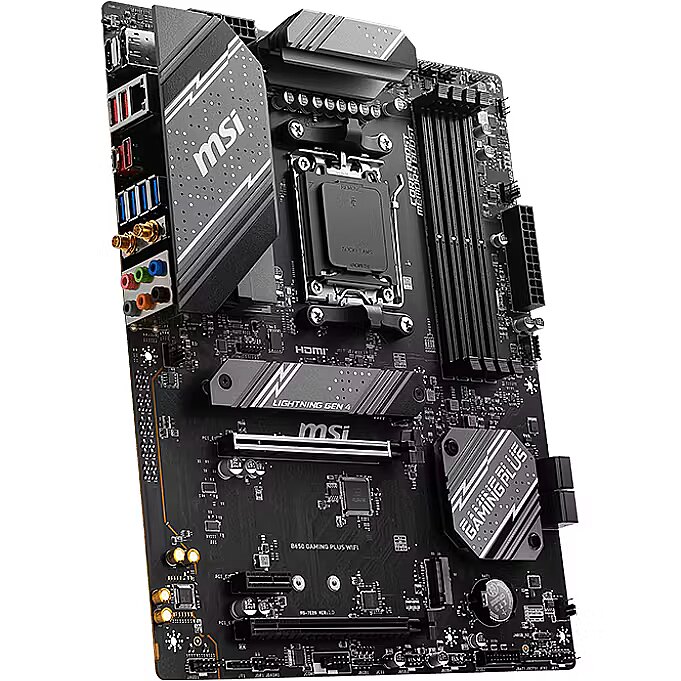

MSI B650 GAMING PLUS WiFi

Accessories included -
Audio port Input/Output connectors - 6
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - MSI
BrandPartCode - B650 GAMING PLUS WIFI
Category - Datortehnika :: Datoru komponentes :: Pamatplates
category - Mainboards AMD Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E26-001R
Code - B650 GAMING PLUS WIFI
Code - B650GAMINGPLUSWIFI
COM connector / port - Yes
CPU socket - Socket AM5
Desc - Mikroshēmu tips | chipset: AMD B650, Plates formfaktors: ATX, Procesora ražotājs: AMD, Ligzda: AM5, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 192GB, Integrēta audio karte: Realtek ALC897 Audio Codec, LAN: Dragon RTL8125BG, WiFi: Ir, M.2 Pieslēgumi: 2, Garantija: 2 gadi
Description - B650 GAMING PLUS WIFI - Supports AMD Ryzen™ 7000 Series Desktop Processors - Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC) - Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost - Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work - Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G - 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection - High Quality PCB: 6-layer PCB made by 2oz thickened copper - Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Description - Płyta główna B650 Gaming Plus WiFi Obsługuje procesory AMD Ryzen z serii 8000/7000 do komputerów stacjonarnych Obsługuje pamięć DDR5, dwukanałowy DDR5 7200+MHz (OC) Ulepszona konstrukcja zasilania: system zasilania Duet Rail 12+2+1, podwójne 8-pinowe złącza zasilania procesora, wzmocnienie rdzenia, zwiększenie pamięci Rozwiązanie termiczne klasy premium: rozszerzony radiator, podkładki termiczne MOSFET o mocy 7 W/mK, dodatkowe podkładki termiczne dławikowe i M.2 Shield Frozr zostały zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanej pracy Błyskawiczne wrażenia z gry: gniazda PCIe 4.0, złącze Lightning Gen 4 x4 M.2 z M.2 Shield Frozr, USB 3.2 Gen 2x2 20G Rozwiązanie LAN 2,5G z Wi-Fi 6E: Ulepszone rozwiązanie sieciowe do zastosowań profesjonalnych i multimedialnych. Zapewnia bezpieczne, stabilne i szybkie połączenie sieciowe Wysokiej jakości PCB: 6-warstwowa płytka drukowana wykonana z miedzi pogrubionej o grubości 2 uncji Wzmocnienie dźwięku: Ciesz się studyjną jakością dźwięku, aby uzyskać najbardziej wciągające wrażenia z gry
Detailed data on disk/drive interfaces - 2x M.2 Źródło M.2_1 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 22110/2280 Źródło M.2_2 (z procesora) obsługuje do PCIe 4.0 x4, obsługuje urządzenia 2280/2260 4xSATA6G
dimensionalWeight - 1266
dimension depth - 70 mm
dimension height - 350 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1550 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377098052
ean - 4711377098052
Eans - 4711377098052
EAN_code - 4711377098052
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x M.2
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 4
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x Side Speaker
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 3 x USB 3.1
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 1x|2xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|7xUSB 3.2|1xUSB-C|1xRJ45|6xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1|TPM Header
Graphics - 1xHDMI Obsługa HDMITM 2.1 z HDR, maksymalna rozdzielczość 4K 60 Hz 1x DisplayPort Obsługuje DP1.4, maksymalna rozdzielczość 4K 60 Hz
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GTIN - 4711377098052
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_108269_1.png
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of M.2 (M) slots - 2
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
LargeDescHTML -
LongDesc - B650 GAMING PLUS WIFIB650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - AMD B650, 4x DDR5, 1x HDMI, 1x DisplayPort, Bluetooth, ATX
LongSummaryDescription - MSI B650 GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - MSI
Manufacturer_code - 7E26-001R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory types supported by processor - DDR5-SDRAM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B650 GAMING PLUS WIFI
Model - B650 Gaming Plus WiFi
MPN - 7E26-001R
Name - AM5 MSI B650 GAMING PLUS WIFI ATX
name - B650 GAMING PLUS WIFI AM5 4DDR5 HDMI/DP ATX
Name - MSI B650 GAMING PLUS WIFI
name - MSI B650 Gaming Plus WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI B650 GAMING PLUS WIFI - Socket AM5 - motherboard
Name - MSI | B650 GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Number of SATA connectors 4
Name - Pamatplate MSI B650 GAMING PLUS WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125B
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - AMD Wi-Fi 6E Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E). Obsługuje MU-MIMO TX/RX Obsługuje szerokość pasma 20 MHz, 40 MHz, 80 MHz w pasmach 2,4 GHz/5 GHz lub 6 GHz Obsługuje 802.11 a/b/g/n/ac/ax Obsługuje Bluetooth 5.3
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 2
Processor - Compatible processor series - AMD Ryzen 7 7th Gen
Processor - Compatible processor series - AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
producer - MSI
Producer - MSI
producerCode - 7E26-001R
ProducerCode - B650 GAMING PLUS WIFI
Producer product name - B650 GAMING PLUS WIFI
ProductName - B650 GAMING PLUS WIFI
productName - MSI B650 GAMING PLUS WIFI motherboard AMD B650 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1; NVMe 0, 1
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - MSI B650 GAMING PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 192 GB
sizeX - 350
sizeY - 270
sizeZ - 67
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - M.2, SATA
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Title - MSI B650 GAMING PLUS WIFI motherboard AMD B650 Socket AM5 ATX
TPM - Header
Unit Box Height - 0.068
Unit Box Length - 0.35
Unit Box Width - 0.27
Unit Brutto Volume - 0.006426 cubm
Unit Gross Weight - 1.52 kg
Unit Net Weight - 1.1 kg
URL - https://www.msi.com/Motherboard/B650-GAMING-PLUS-WIFI
USB-C Input/Output connectors - 1
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 8
Vendor Homepage - www.msi.com/Motherboard/B650-GAMING-PLUS-WIFI/Overview
vendpn - B650 GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,52
Weight - 1.1
weight - 1545
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
