Accessories included -
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - Flash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - TRX50 AERO D
category - Mainboards AMD Mainboards
Category - Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - AMD
Chipset type - AMD TRX50
code - TRX50 AERO D
COM connector / port - No
CPU socket - Socket sTR5

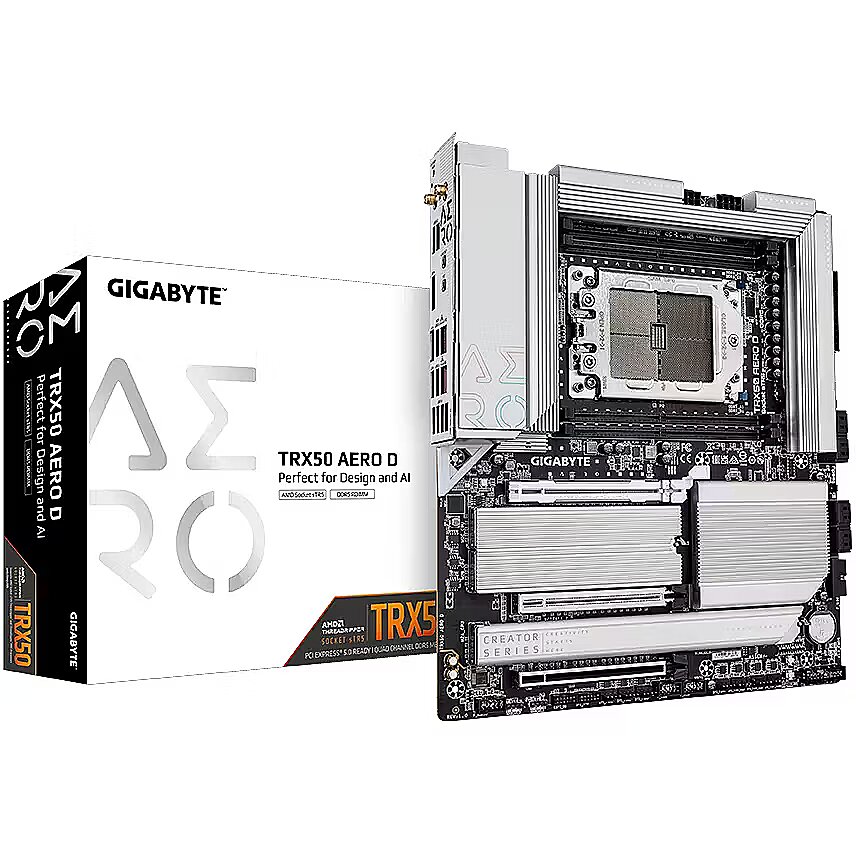

Description - TRX50 Aero D motherboard Supports AMD Ryzen Threadripper PRO 7000 series/Ryzen Threadripper 7000 series processors Breakthrough performance: 16+8+4 phase digital VRM solution Quad-channel DDR5 memory: 4xSMD R-DIMM with support for AMD EXPO and Intel XMP memory modules Enhanced overall thermal protection: VRM Advanced thermal armour and M.2 thermal shield Ultimate scalability: 3 x PCIe x16 slots for multiple GPUs and 4 x PCIe x4 M.2 slots Next-generation connectivity: two USB4 Type-C ports Incredibly fast networking: 10GbE + 2.5GbE, dual LAN and Wi-Fi 7 PCIe UD Slot X: 10x PCIe 5.0 x16 slot for graphics cards EZ-Latch Click: M.2 heat sinks with screwless design EZ-Latch Plus: M.2 slots with quick-release design Hi-Fi audio with DTS:X Ultra codec: ALC4080+ALC897 UC BIOS: Intuitive user-oriented interface with quick-release function
Detailed data on disk/drive interfaces - CPU: 1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU) Processor + chipset: 8 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
dimension depth - 83 mm
dimension height - 300 mm
Dimensions - 30.5 x 26.4 cm
dimension weight - 3055 g
dimension width - 350 mm
ean - 4719331859480
EAN_code - 4719331859480
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 3 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Expansion slots - PCI Express x16 slots - 3

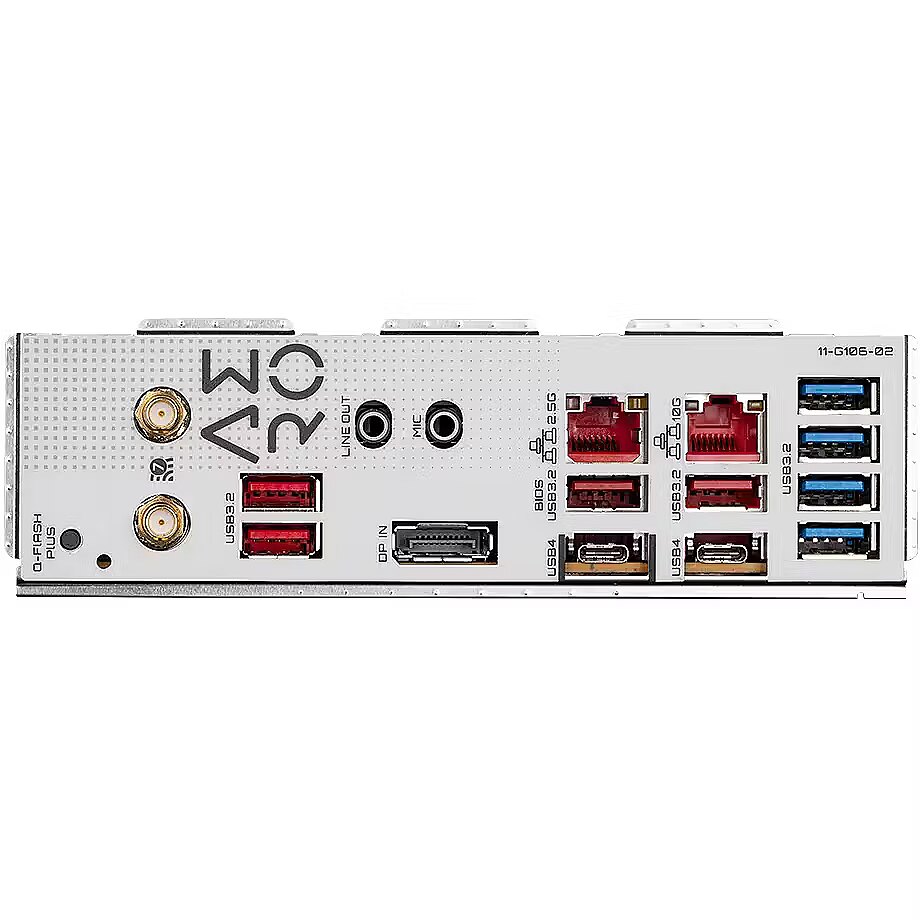

External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x MIC
External connectors - 1 x Q-Flash Plus button
External connectors - 2 x RJ-45
External connectors - 2 x SMA
External connectors - 2 x USB4 Type-C
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 2.0 channels
Features - Component for - PC
Features - Motherboard chipset - AMD TRX50
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - E-ATX
Graphics -
Graphics - DirectX version - 12.0
GTIN - 0889523040560
GTIN - 889523040560
GTIN - 4719331859480
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Audio connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 10
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 8
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD TRX50, sTR5, DDR5, 10GbE LAN, Wi-Fi 7, PCIe 5.0, M.2, 8 x SATA 6Gb/s, E-ATX, USB 3.2, 256 Mbit, AMI UEFI BIOS, 30.5 x 26.4 cm
LongSummaryDescription - Gigabyte TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen™ Threadripper™. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer_code - TRX50 AERO D
Max. number of ATA devices - 0
Max. number of SATA devices - 8
Max memory size - 1 TB
Memory - ECC - Yes
Memory - Maximum internal memory - 1 TB
Memory - Memory channels - Quad-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory type - DDR5
Model - TRX50 Aero D
name - GIGABYTE TRX50 Aero D, AMD TRX50 Mainboard, Sockel sTR5, DDR5
Name - GIGABYTE TRX50 AERO D - Socket sTR5 - motherboard
name - TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Network interface - Bluetooth
Network interface - Marvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x temperature sensor
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x M.2
Onboard connectors - 8 x SATA III 6Gb/s
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version),
LAN bandwidth management software
Packaging data - Package depth - 294 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 3.04 kg
Packaging data - Package width - 345 mm
Processor - Compatible processor series - AMD Ryzen™ Threadripper™
Processor - Maximum internal memory supported by processor - 1 TB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket sTR5
Processor family - AMD Ryzen
producer - Gigabyte
ProductName - TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Headphone outputs - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
ShortSummaryDescription - Gigabyte TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket sTR5, AMD Ryzen™ Threadripper™, 1 TB, DDR5-SDRAM, 1 TB
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio)
Special functions -
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 12
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - Gigabyte TRX50 AERO D Motherboard - Supports AMD Ryzen PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
URL - https://www.gigabyte.com/Motherboard/TRX50-AERO-D#kf
USB ports at back panel - 10
USB ports on motherboard - 4
vendpn - TRX50 AERO D
WarrantyInfo - 3 years
Weight - 3,04
Weight & dimensions - Depth - 264 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
