ID: 277497
Product code: SRT10KRMXLI
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 3 years

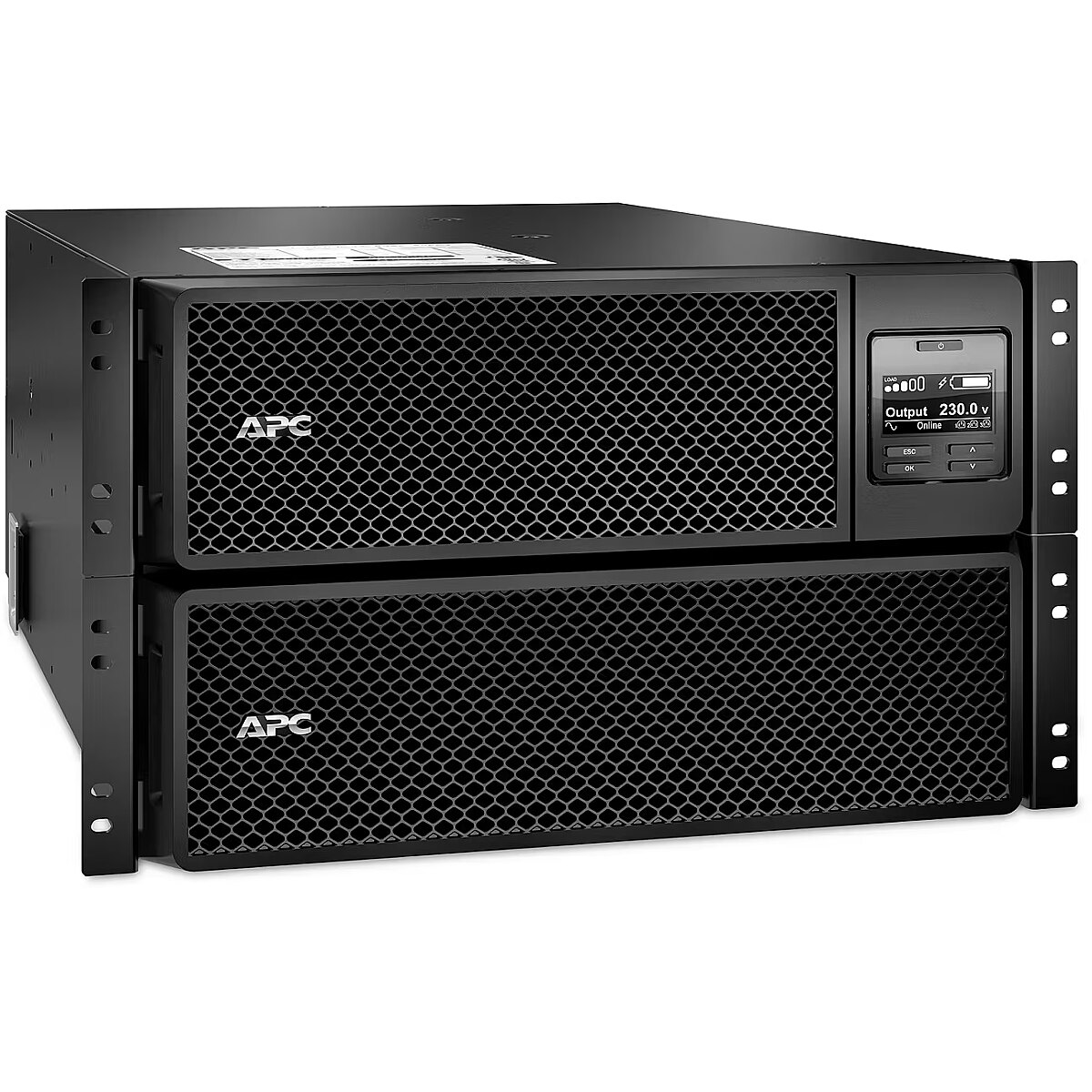

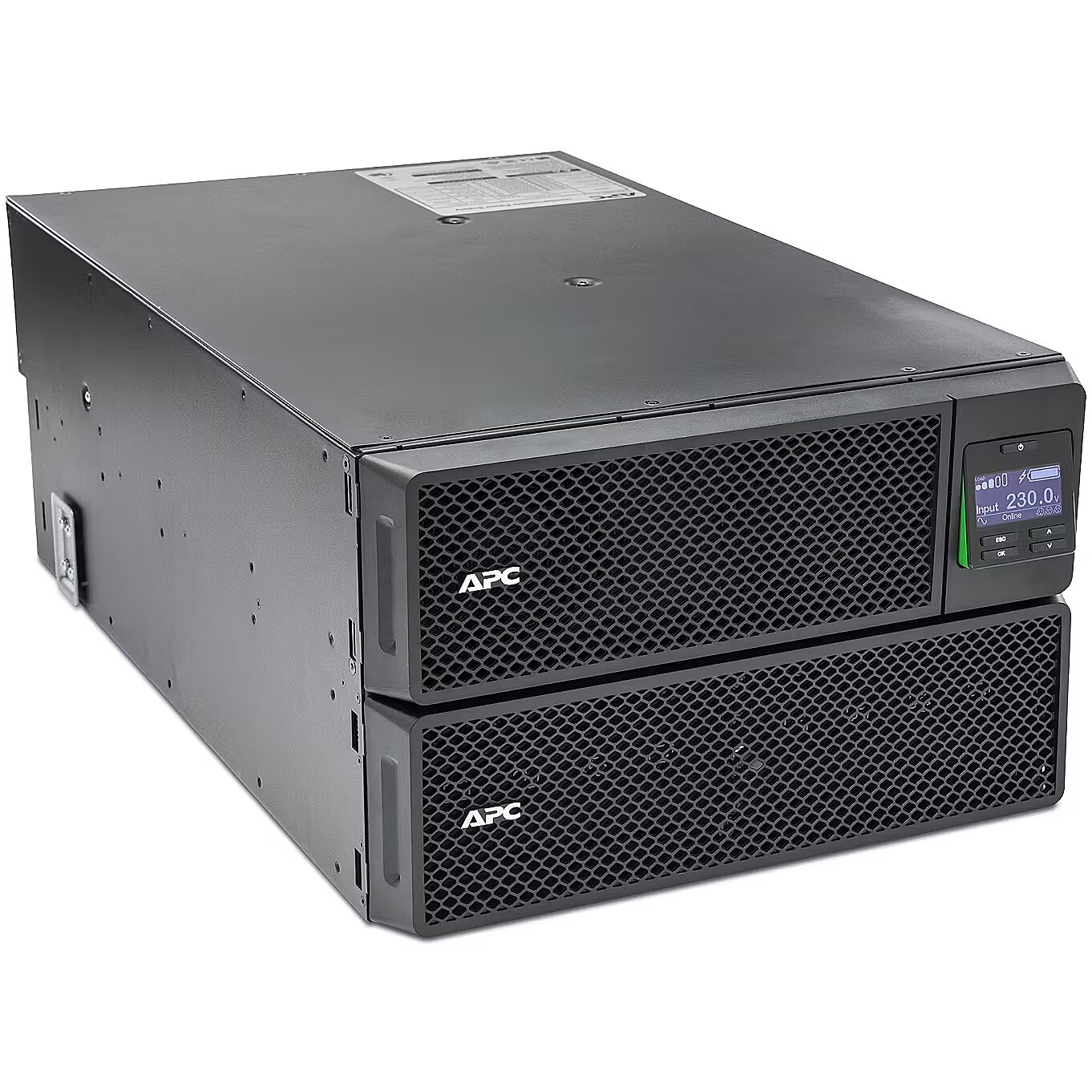

APC Smart-UPS SRT10KRMXLI 10000VA, 10000W, IEC, 6U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 27.05.2024
- Delivery to address in Riga 3.99 €: 27.05.2024
- Delivery to address in Latvia 6.99 €: 27.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 23.05.2024 after 15:00
Main product parameters All parameters
- Battery capacity (VA): 10000
- Output power (W): 10000
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
10000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 1.5
Output power (W)
: 10000
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - - CD z oprogramowaniem
- Dokumentacja na CD
- Instrukcja użytkownika
- Klamry do montażu w szafach przemysłowch
- Sprzęt do montażu urządzeń w szafie
- Wsporniki montażowe do szaf przemysłowych
- Czujnik temperatury
- Kabel USB
- Karta gwarancyjna
Active power - 10000 W
Apparent power - 10 kVA
ARTIKEL1 - SRT 10000VA RM 230V
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 1805 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Typical backup time at full load - 3.8 min
Battery - Typical backup time at half load - 11.5 min
Brand - APC
BrandPartCode - SRT10KRMXLI
Category - Uninterruptible Power Supplies (UPSs)
Charging time - 1.5 h
Chassis type - Rack
Color - Black
Connectors - 1 x USB (Type B)
Connectors - RJ-45
Connectors - SmartSlot
Description - Zasilacz awaryjny o mocy wyjściowej 10000VA/10000W wyposażony w 6 gniazd IEC 320 C13 IEC 320 C13, 4 gniazda IEC 320 C19 IEC 320 C19 , 3 IEC Jumpers oraz połączenie stałe 3 przewody (H N+G). Posiada bezobsługowy szczelny akumulator kwasowo-ołowiowy z elektrolitem w postaci żelu oraz ochronę przeciwprzepięciową.
Design - Certification - CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 6U
dimension depth - 600 mm
dimension height - 350 mm
Dimensions - 43.2 x 26.3 x 71.5 cm.
dimension weight - 120000 g
dimension width - 1000 mm
ean - 731304304265
EANCode - 0731304304265
Environment requirements - - Środowisko operacyjne: 0 - 40 °C
- Wilgotność względna podczas pracy: 0 - 95% no%
- Wysokość n.p.m. podczas pracy: 0-900 metry
- Temperatura (przechowywanie): -15 - 45 °C
- Wilgotność względna (przechowywanie): 0 - 95% no%
- Wysokość n.p.m. (przechowywanie): 0-4500 metry
- Poziom hałasu w odległości 1 m od powierzchni urządzenia: 55.00 dBA
- Odprowadzanie ciepła: 2002.00 BTU/godz.
- Klasa ochrony: IP 20
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 94.6%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 476 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 10000 W
Features - Output power capacity - 10 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Surge energy rating - 480 J
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Surge
Gewicht - 133
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304304265
GTIN - 0731304304265
guarantee - 36
guarantee_type - external
HERSTELLER - APC
HSTNUMMER - SRT10KRMXLI
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - APC Smart-UPS On-Line,10 kW /10 kVA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 UIncludes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card
LongProductName - Smart-UPS SRT 10000VA RM 230V
LongSummaryDescription - APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1805 VAh, Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Width: 432 mm, Depth: 715 mm, Height: 263 mm
name - SRT10KRMXLI SmartUPS SRT 10000VA Rack 230V
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Interface - RJ-45 10/100 Base-T
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card

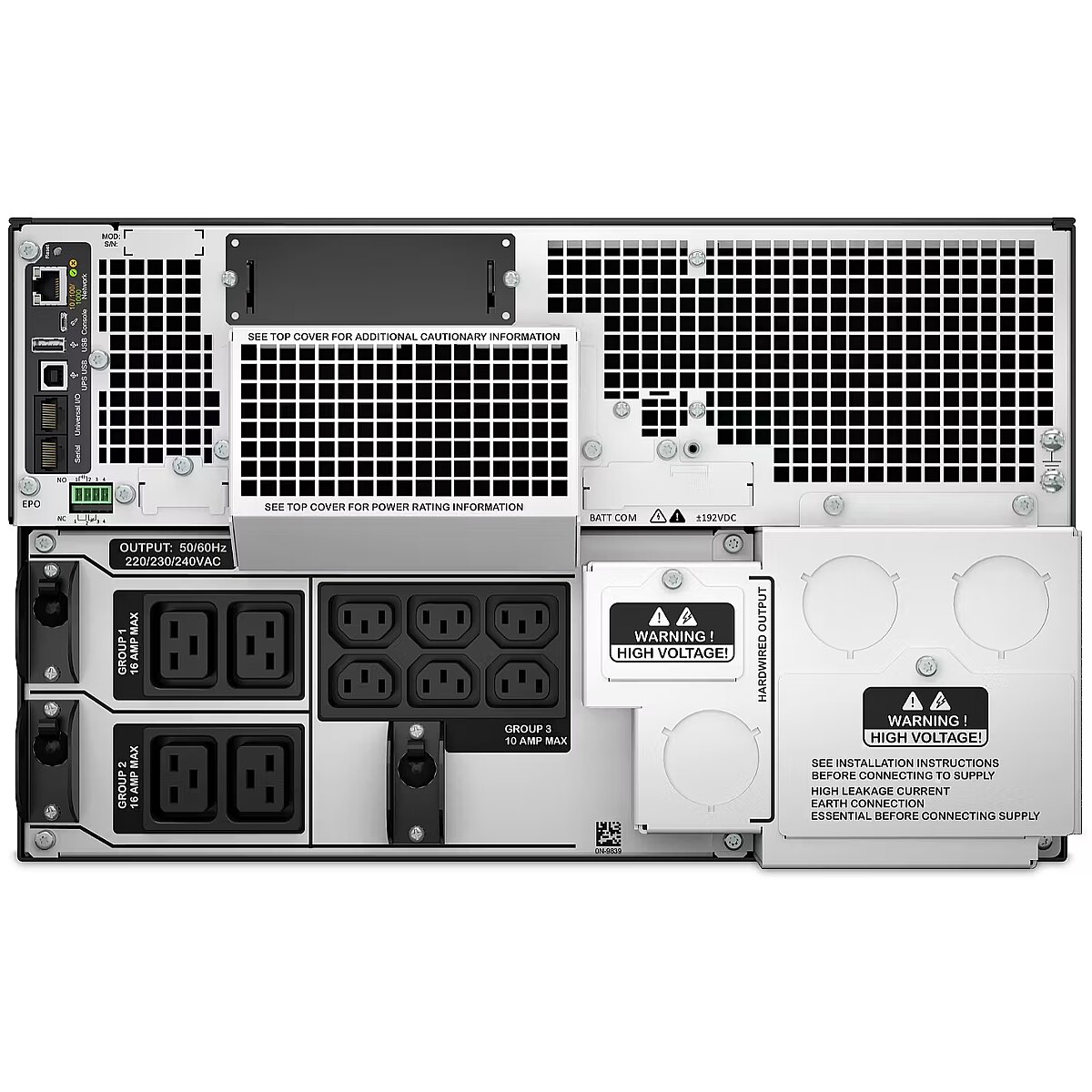

Output power ports - 1 x Hard Wire 3-wire (1PH + N + G)
Output power ports - 4 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Bracket - Yes
Packaging data - Cables included - USB cable
Packaging data - Quick installation guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Software CD - Yes
Packaging data - Temperature sensor - Yes
Packaging data - Warranty card - Yes
Ports & interfaces - AC outlets quantity - 10 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Number of output IEC jumpers - 3
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RJ-45
Ports & interfaces - SmartSlot - Yes
Ports & interfaces - USB port - Yes
producer - APC
ProductName - Smart-UPS On-Line
ShortSummaryDescription - APC Smart-UPS On-Line, Double-conversion (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
Software - PowerChute Network Shutdown v3.0.1
Special functions - Zimny start
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details - Sustainability certificates - RoHS, ENERGY STAR
Title - APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 10 AC outlet(s)
UPS Architecture - on-line
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SRT10KRMXLI&ISOCountryCode=GB
vendpn - SRT10KRMXLI
Voltage - 230 V
WarrantyInfo - 3 years
Weight - 111 kg
Weight & dimensions - Depth - 715 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Package depth - 1000 mm
Weight & dimensions - Package height - 461 mm
Weight & dimensions - Package weight - 130 kg
Weight & dimensions - Package width - 600 mm
Weight & dimensions - Weight - 111.8 kg
Weight & dimensions - Width - 432 mm
