ID: 974729
Product code: H510M K V2
In stock 50 units
Warranty: 3 years

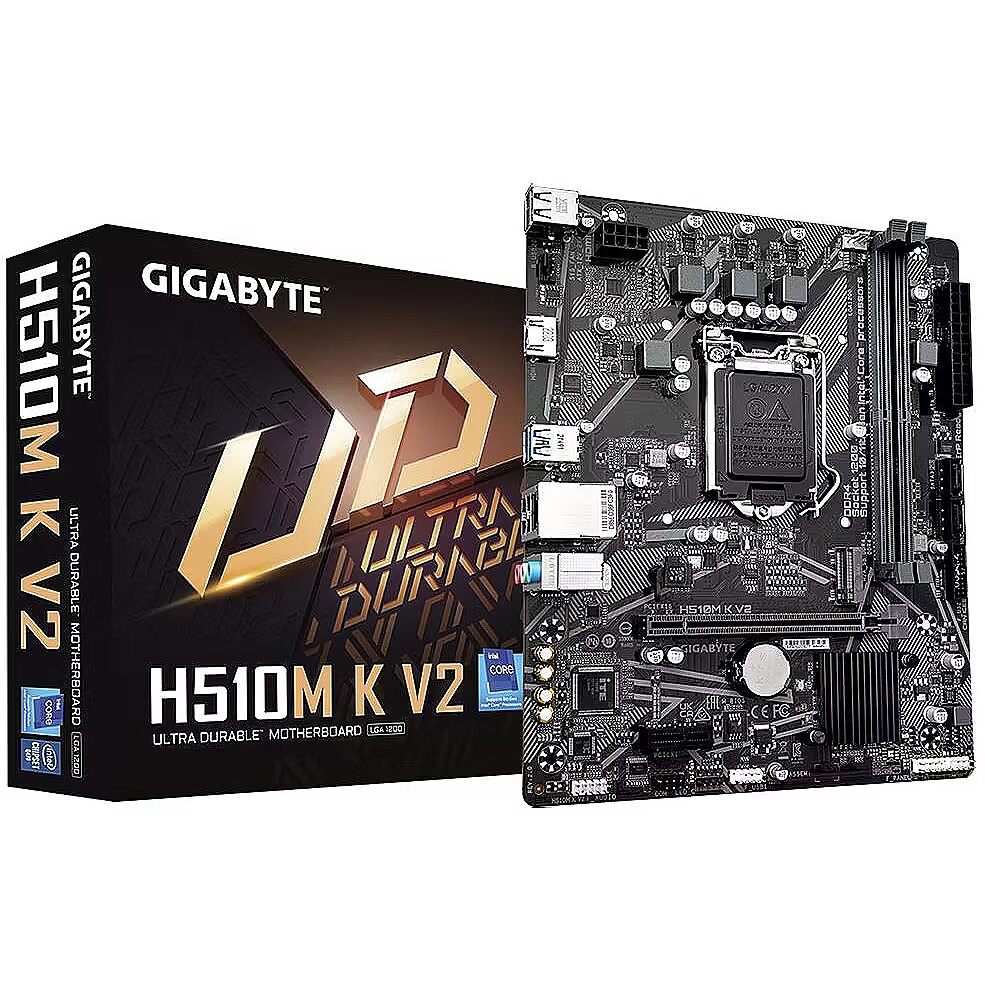

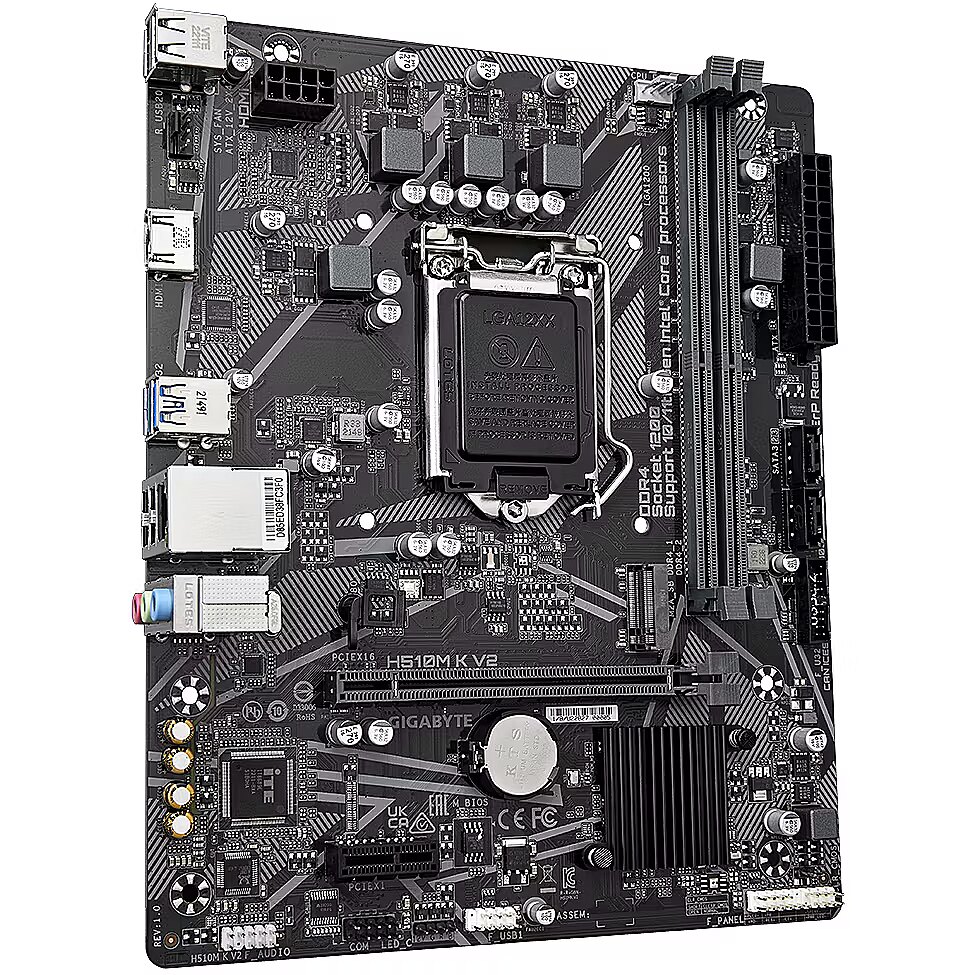

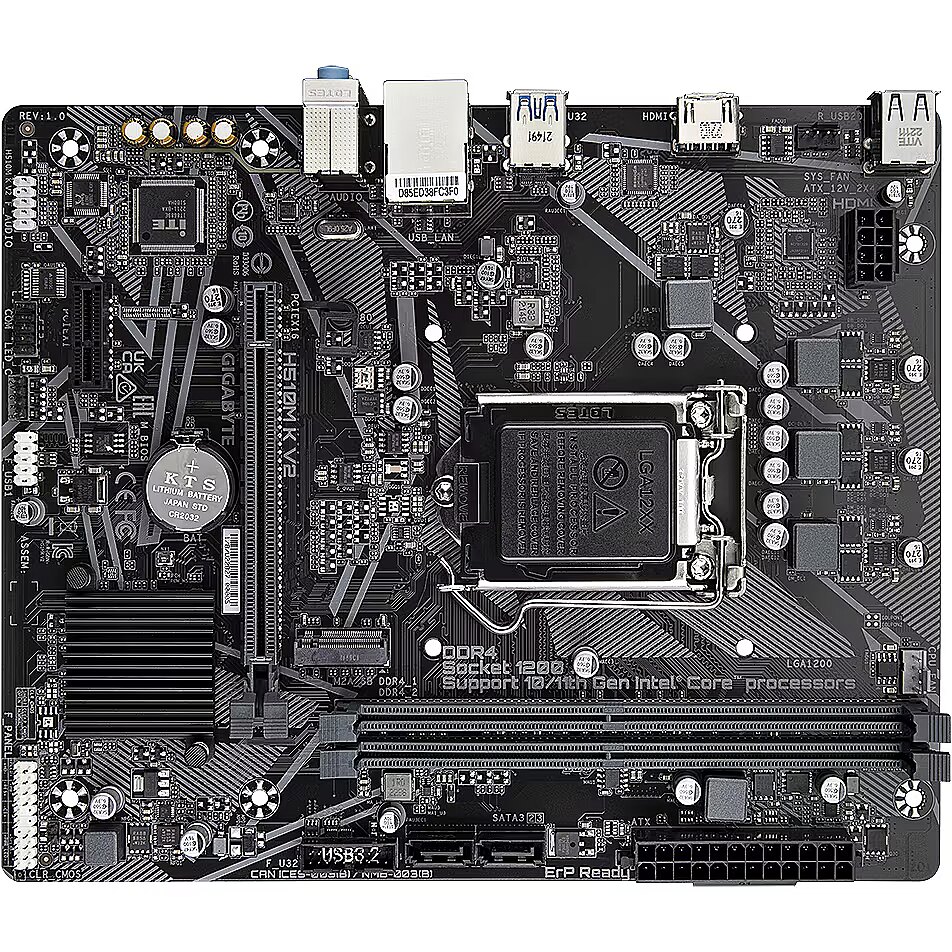

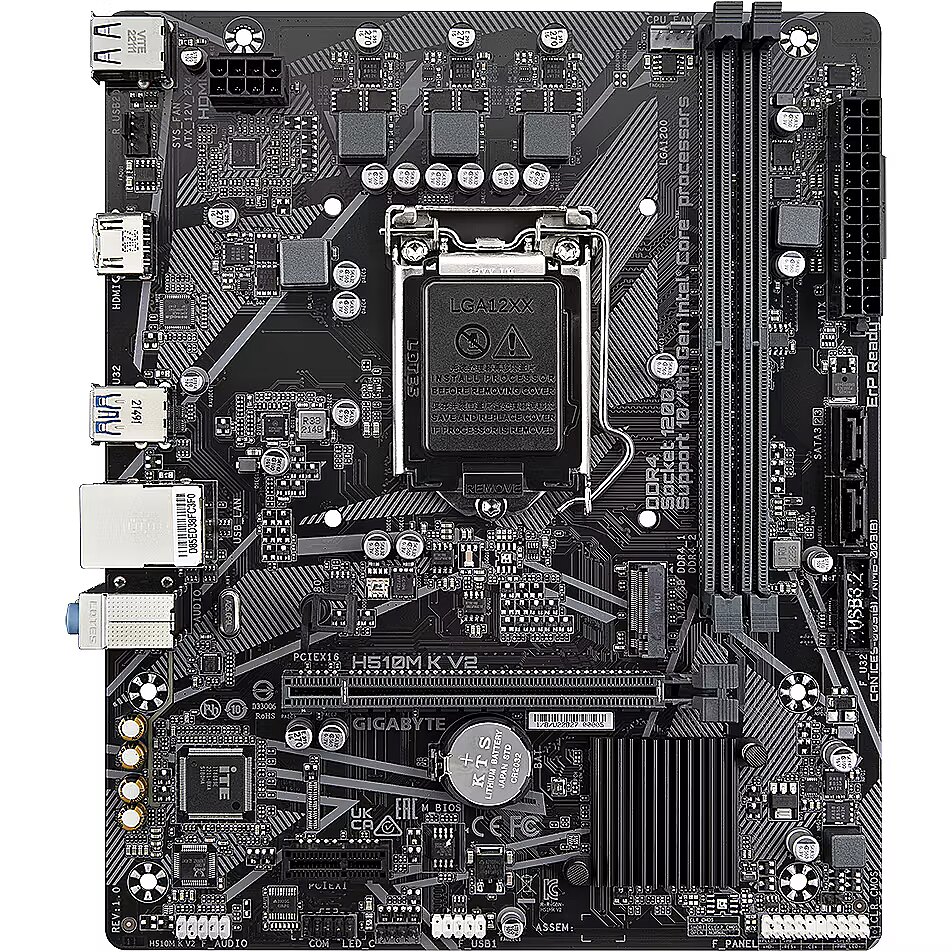

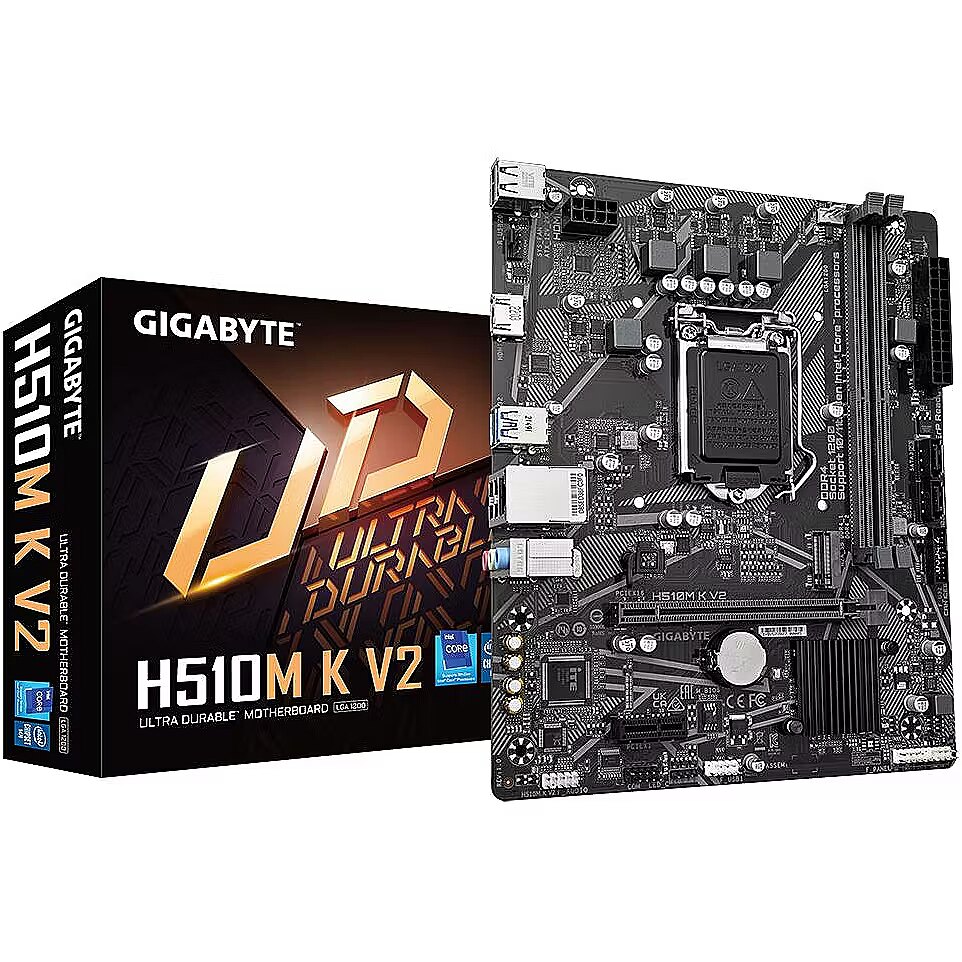

Gigabyte H510M K V2 (rev. 1.0)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 08.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 08.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.05.2024
- Delivery to address in Riga 3.99 €: 08.05.2024
- Delivery to address in Latvia 6.99 €: 08.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Friday, 03.05.2024 after 15:00
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1200
- Chipset: Intel H470
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1200
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H470
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 3200
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 1
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 2
More detailed specification
Accessories included -
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H510M K V2
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel H470 Express Chipset
code - H510M K V2
Code - H510M K V2
COM connector / port - Yes
CPU socket - LGA1200
Description - Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Supports 11th/10th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID5 support for SATA storage devices
dimensionalWeight - 648
dimension depth - 53 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 615 g
dimension width - 268 mm
EAN - 4719331855253
ean - 4719331855253
Eans - 4719331855253
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Mini PCI Express slots - 1

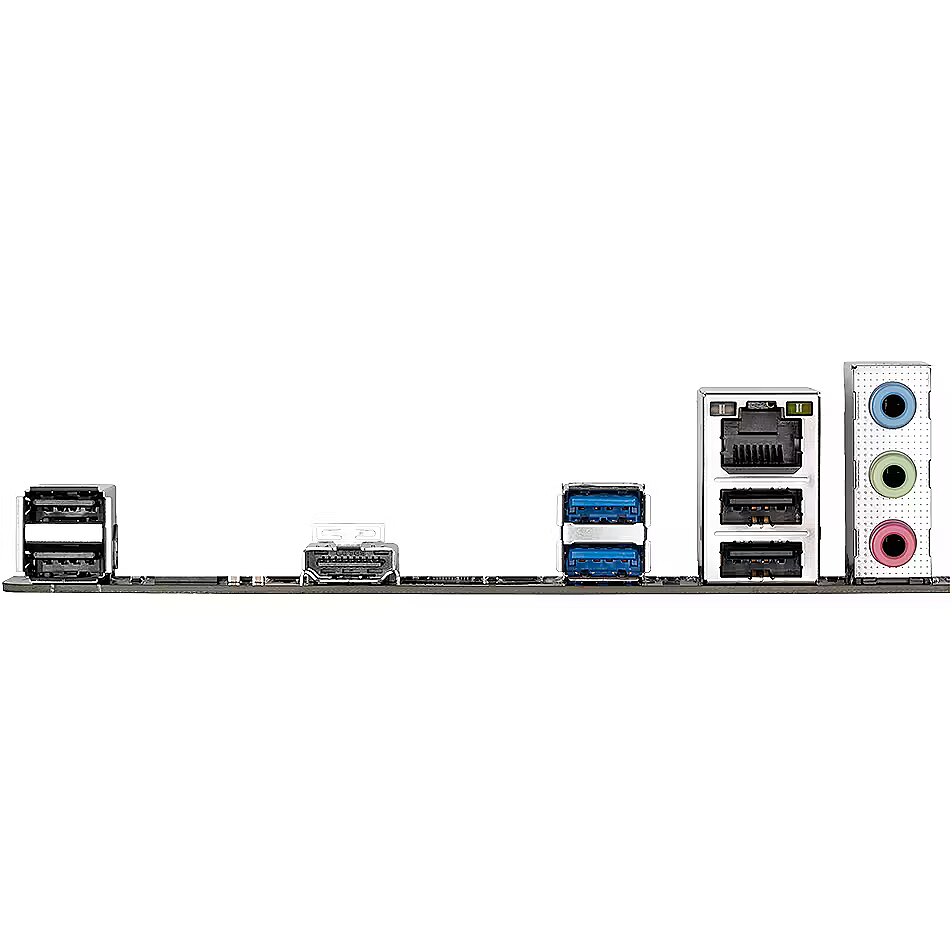

External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H470 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Integrated graphics processor supports Intel HD graphics: 1 x HDMI port supporting a maximum resolution of 4096x2160 at 30 Hz * Support for HDMI 1.4 and HDCP 2.3 versions. (Graphics specifications may vary depending on processor support.)
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Gross weight - 1.23 kg
GTIN - 4719331855253
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
LongDesc - GbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.NVMe PCIe Gen3 x4 2280 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.Smart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.Hybrid Fan Pin HeadersAssume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.New Smart Fan 5 SoftwareChoose from different modes, Quiet to Full Speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.START SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.The Industry's Leading Surge ProtectionGIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.Humidity Protection Glass Fabric PCBThere is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.High Temperature Protection Lower RDS(on) MOSFETs DesignGIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.Refreshed BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new systemAPP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.EasyTuneGIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.BIOSThe GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
LongProductName - LGA1200, Intel H470 Express, 2 x DDR4, 1 x HDMI, Micro ATX
LongSummaryDescription - Gigabyte H510M K V2 (rev. 1.0). Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
Manufacturer - Gigabyte
Max. number of ATA devices - 0
Max. number of SATA devices - 2
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory type - DDR4
Model - H510M K V2
MPN - H510M K V2
Name - 1200 Gigabyte H510M K V2
Name - Gigabyte H510M K V2
name - GIGABYTE H510M K V2, Intel H470 Mainboard, Sockel 1200, DDR4
Name - Gigabyte | H510M K V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H470 Express | Micro ATX
name - Motherboard H510M K V2 s1200 2DDR4 HDMI/USB 3.2 M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 68.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 181 pc(s)
Package features > Paper/Pasteboard - 230.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Performance > Chipset - Intel H470 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 11th/10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
producer - Gigabyte
Producer - Gigabyte
producerCode - H510M K V2
ProducerCode - H510M K V2
Producer product name - H510M K V2 1.0 M/B
productName - Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX
ProductName - H510M K V2 (rev. 1.0)
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - Gigabyte H510M K V2 (rev. 1.0), Intel, LGA 1200 (Socket H5), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
sizeX - 50
sizeY - 270
sizeZ - 240
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Special functions - Application Center support * Available applications in APP Center may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. @BIOS Ambient LED EasyTune Smart backup System Information Viewer Q-Flash support Support for Xpress installation
Storage controllers - Number of storage drives supported - 2
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX
URL - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
USB ports at back panel - 6
USB ports on motherboard - 4
vendpn - H510M K V2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.6
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Width - 226 mm
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - Gigabyte
BrandPartCode - H510M K V2
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel H470 Express Chipset
code - H510M K V2
Code - H510M K V2
COM connector / port - Yes
CPU socket - LGA1200
Description - Intel Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5 Supports 11th/10th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 8-Channel HD Audio with High Quality Audio Capacitors NVMe PCIe Gen3 x4 2280 M.2 Connector GbE LAN with Bandwidth Management Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design
Detailed data on disk/drive interfaces - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID5 support for SATA storage devices
dimensionalWeight - 648
dimension depth - 53 mm
dimension height - 235 mm
Dimensions - 22.6 x 18.5 cm
dimension weight - 615 g
dimension width - 268 mm
EAN - 4719331855253
ean - 4719331855253
Eans - 4719331855253
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Mini PCI Express slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H470 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Integrated graphics processor supports Intel HD graphics: 1 x HDMI port supporting a maximum resolution of 4096x2160 at 30 Hz * Support for HDMI 1.4 and HDCP 2.3 versions. (Graphics specifications may vary depending on processor support.)
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Gross weight - 1.23 kg
GTIN - 4719331855253
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Power fan connector - Yes
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
LongDesc - GbE LAN with Bandwidth ManagementGbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.NVMe PCIe Gen3 x4 2280 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.Smart Fan 5With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.Hybrid Fan Pin HeadersAssume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.New Smart Fan 5 SoftwareChoose from different modes, Quiet to Full Speed, to match your system usage preferences.For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.START SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.The Industry's Leading Surge ProtectionGIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.Humidity Protection Glass Fabric PCBThere is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.High Temperature Protection Lower RDS(on) MOSFETs DesignGIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.Refreshed BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new systemAPP CENTERGIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.EasyTuneGIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.BIOSThe GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
LongProductName - LGA1200, Intel H470 Express, 2 x DDR4, 1 x HDMI, Micro ATX
LongSummaryDescription - Gigabyte H510M K V2 (rev. 1.0). Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
LPT connector / port - No
Manufacturer - Gigabyte
Max. number of ATA devices - 0
Max. number of SATA devices - 2
Max memory size - 64 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2933,3000,3200 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666 MHz
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory type - DDR4
Model - H510M K V2
MPN - H510M K V2
Name - 1200 Gigabyte H510M K V2
Name - Gigabyte H510M K V2
name - GIGABYTE H510M K V2, Intel H470 Mainboard, Sockel 1200, DDR4
Name - Gigabyte | H510M K V2 1.0 M/B | Processor family Intel | Processor socket LGA1200 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2 | Chipset Intel H470 Express | Micro ATX
name - Motherboard H510M K V2 s1200 2DDR4 HDMI/USB 3.2 M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x USB 2.0/1.1 header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x SATA III 6Gb/s
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 68.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 181 pc(s)
Package features > Paper/Pasteboard - 230.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Performance > Chipset - Intel H470 Express
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1200 (Socket H5)
Processor - Supported processor sockets - LGA 1200 (Socket H5)
Processor > Compatible processor series - Supports 11th/10th Gen Intel Core Processors
Processor > Processor family - Intel
Processor > Processor socket - LGA1200
Processor family - Intel Core i3
Processor family - Intel Core i5
Processor family - Intel Core i7
Processor family - Intel Core i9
producer - Gigabyte
Producer - Gigabyte
producerCode - H510M K V2
ProducerCode - H510M K V2
Producer product name - H510M K V2 1.0 M/B
productName - Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX
ProductName - H510M K V2 (rev. 1.0)
productSize - Normal
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
ShortDescription - Socket 1200| Chipset Intel H510 | DDR4 |
ShortSummaryDescription - Gigabyte H510M K V2 (rev. 1.0), Intel, LGA 1200 (Socket H5), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB
sizeX - 50
sizeY - 270
sizeZ - 240
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
Special functions - Application Center support * Available applications in APP Center may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. @BIOS Ambient LED EasyTune Smart backup System Information Viewer Q-Flash support Support for Xpress installation
Storage controllers - Number of storage drives supported - 2
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - Gigabyte H510M K V2 (rev. 1.0) Intel H470 Express LGA 1200 (Socket H5) micro ATX
URL - https://www.gigabyte.com/Motherboard/H510M-K-V2-rev-10#kf
USB ports at back panel - 6
USB ports on motherboard - 4
vendpn - H510M K V2
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0.6
weight - 600
Weight & dimensions - Depth - 185 mm
Weight & dimensions - Width - 226 mm
