ID: 700224
Product code: CP-9020199-EU
In stock >50 units
Warranty: 2 years

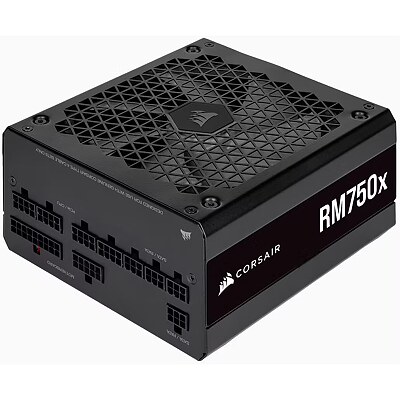

Corsair RM750x, 750W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 16.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 16.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 16.05.2024
- Delivery to address in Riga 3.99 €: 16.05.2024
- Delivery to address in Latvia 6.99 €: 16.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thuesday, 14.05.2024 after 15:00
Main product parameters All parameters
- Producer: Corsair
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to buy Corsair the power supply unit with 750W the power supply capacity and 135 mm cooling.
Thanks to the particularly powerful 62.5A first 12V power line and 2 X 6+2pin devoted PCI-Express plug-ins this power supply unit is intended for a computer with a single very powerful graphics card (the type of application of the card "Extreme Gaming or PowerGaming").
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
135 mm ventilator is an essential factor for ensuring quiet operation of the power supply unit. Thanks to a bigger diameter this ventilator has a larger area of blades that are capable of producing the required volume of air flow at low rotations without causing unnecessary noise and vibrations.
Thanks to the particularly powerful 62.5A first 12V power line and 2 X 6+2pin devoted PCI-Express plug-ins this power supply unit is intended for a computer with a single very powerful graphics card (the type of application of the card "Extreme Gaming or PowerGaming").
Active PFC (power factor correction) makes this power supply unit more environment friendly thanks to the fact that this unit uses only the effective power component in the power network without creating artificial consumption on the account of noise and fluctuations. This feature does not provide any direct advantages or disadvantages to the user.
This power supply unit has modular cables providing a possibility to connect the video cards, the hard disc and other additional cables as required from the range included in the kit. In this way the tangle of wires in the computer is considerably reduced improving the ventilation and the esthetic factor (it is of particular importance for those who buy a transparent enclosure).
135 mm ventilator is an essential factor for ensuring quiet operation of the power supply unit. Thanks to a bigger diameter this ventilator has a larger area of blades that are capable of producing the required volume of air flow at low rotations without causing unnecessary noise and vibrations.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A -
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 10
4pin Molex
: 4
More detailed specification
Accessories included -
category - Energy Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Certificates > Certification - 80 PLUS Gold certified
code - CP-9020199-EU
Code - CP-9020199-EU
Description - Zasilacze CORSAIR RM750x Series ze złączami EPS12V zbudowano z najlepszych komponentów, dlatego działają ze sprawnością klasy 80 PLUS Gold. Zastosowanie wyłącznie japońskich kondensatorów mogących pracować w temperaturze 105°C sprawia, że zasilacze RM750x działają niezawodnie przez długi czas, czego potwierdzeniem jest dziesięcioletnia gwarancja. 135-milimetrowy wentylator ma łożysko z lewitacją magnetyczną i zapewnia wysoką wydajność oraz niski poziom hałasu. Tryb stanu wstrzymania z zachowaniem połączenia umożliwia szybsze wybudzanie komputera i zmniejsza zużycie energii. Tryb Zero RPM zapewnia praktycznie bezgłośną pracę przy niskim i średnim obciążeniu. W pełni modułowe przewody można dowolnie dobierać, co ułatwia budowę i modernizację komputera. Zasilacz RM750x jest cichy, efektywny i niezawodny oraz zapewnia wystarczającą moc Twojemu wysokowydajnemu komputerowi na wiele lat.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1811
dimension depth - 135 mm
dimension height - 310 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 3000 g
dimension width - 220 mm
EAN - 840006603641
ean - 0840006603641
ean - 840006603641
EAN - 0840006603641
Eans - 0840006603641
EAN_code - 0840006603641
Fan - 13.5 cm
guarantee - 120
guarantee_type - normal
Link - https://www.corsair.com/eu/en/Categories/Products/Power-Supply-Units/RMx-Series/p/CP-9020199-EU#tab-tech-specs
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Corsair
Manufacturer_code - CP-9020199-EU
Modular power supply - Yes
MPN - CP-9020199-EU
Name - 750W Corsair RM750x Modular 80+Gold
Name - Corsair RM750x (2021) 750W ATX24 - CP-9020199-EU
Name - Corsair RM750x CP-9020199-EU
name - Corsair RMX Series (2021) RM750x Netzteil - 750 Watt, schwarz
Name - Corsair | RMx Series RM750x | 750 W
name - RM750X (2021) 80+ GOLD F.MODULAR ATX
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305 mm
Package features > Gross depth master carton - 325 mm
Package features > Gross height (mm) - 131 mm
Package features > Gross height master carton - 235 mm
Package features > Gross width (mm) - 217 mm
Package features > Gross width master carton - 280 mm
Package features > Net weight master carton - 5.948 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 162 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Plastic (No PET) - 700.00 g
Package features > Tare weight (kg) - 1.70 kg
Package features > Tare weight master carton - 0.364 kg
Package features > Volume (m3) - 0.008670235 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC, CPU, DC, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - MLB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 10
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 850 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
producer - Corsair
Producer - Corsair
producerCode - CP-9020199-EU
ProducerCode - CP-9020199-EU
Producer product name - RMx Series RM750x
productName - Corsair RM750x power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Gold|
sizeX - 305
sizeY - 220
sizeZ - 135
Technical details > Gross weight - 2.974 kg
Technical details > Net weight - 1.274 kg
Technical details > Other features - Magnetic Levitation Bearing; Magnetic Levitation Fan; Fan size - 135mm; Fully Modular; OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)
Technical details > Producer - Corsair
vendpn - CP-9020199-EU
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1.7 kg
Weight - 2,96
Weight - 2.98
weight - 3000
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.7 kg
Weight & dimensions - Width - 150 mm
category - Energy Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Certificates > Certification - 80 PLUS Gold certified
code - CP-9020199-EU
Code - CP-9020199-EU
Description - Zasilacze CORSAIR RM750x Series ze złączami EPS12V zbudowano z najlepszych komponentów, dlatego działają ze sprawnością klasy 80 PLUS Gold. Zastosowanie wyłącznie japońskich kondensatorów mogących pracować w temperaturze 105°C sprawia, że zasilacze RM750x działają niezawodnie przez długi czas, czego potwierdzeniem jest dziesięcioletnia gwarancja. 135-milimetrowy wentylator ma łożysko z lewitacją magnetyczną i zapewnia wysoką wydajność oraz niski poziom hałasu. Tryb stanu wstrzymania z zachowaniem połączenia umożliwia szybsze wybudzanie komputera i zmniejsza zużycie energii. Tryb Zero RPM zapewnia praktycznie bezgłośną pracę przy niskim i średnim obciążeniu. W pełni modułowe przewody można dowolnie dobierać, co ułatwia budowę i modernizację komputera. Zasilacz RM750x jest cichy, efektywny i niezawodny oraz zapewnia wystarczającą moc Twojemu wysokowydajnemu komputerowi na wiele lat.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1811
dimension depth - 135 mm
dimension height - 310 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 3000 g
dimension width - 220 mm
EAN - 840006603641
ean - 0840006603641
ean - 840006603641
EAN - 0840006603641
Eans - 0840006603641
EAN_code - 0840006603641
Fan - 13.5 cm
guarantee - 120
guarantee_type - normal
Link - https://www.corsair.com/eu/en/Categories/Products/Power-Supply-Units/RMx-Series/p/CP-9020199-EU#tab-tech-specs
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Corsair
Manufacturer_code - CP-9020199-EU
Modular power supply - Yes
MPN - CP-9020199-EU
Name - 750W Corsair RM750x Modular 80+Gold
Name - Corsair RM750x (2021) 750W ATX24 - CP-9020199-EU
Name - Corsair RM750x CP-9020199-EU
name - Corsair RMX Series (2021) RM750x Netzteil - 750 Watt, schwarz
Name - Corsair | RMx Series RM750x | 750 W
name - RM750X (2021) 80+ GOLD F.MODULAR ATX
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305 mm
Package features > Gross depth master carton - 325 mm
Package features > Gross height (mm) - 131 mm
Package features > Gross height master carton - 235 mm
Package features > Gross width (mm) - 217 mm
Package features > Gross width master carton - 280 mm
Package features > Net weight master carton - 5.948 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 162 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Plastic (No PET) - 700.00 g
Package features > Tare weight (kg) - 1.70 kg
Package features > Tare weight master carton - 0.364 kg
Package features > Volume (m3) - 0.008670235 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC, CPU, DC, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - MLB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 10
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 750 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 750 mm
Ports & interfaces - SATA power cable length - 850 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
producer - Corsair
Producer - Corsair
producerCode - CP-9020199-EU
ProducerCode - CP-9020199-EU
Producer product name - RMx Series RM750x
productName - Corsair RM750x power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Gold|
sizeX - 305
sizeY - 220
sizeZ - 135
Technical details > Gross weight - 2.974 kg
Technical details > Net weight - 1.274 kg
Technical details > Other features - Magnetic Levitation Bearing; Magnetic Levitation Fan; Fan size - 135mm; Fully Modular; OVP (Over Voltage) UVP (Under Voltage) SCP (Short Circuit) OTP (Over Temp) OPP (Over Power)
Technical details > Producer - Corsair
vendpn - CP-9020199-EU
Warranty - 120
Warranty - 120 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1.7 kg
Weight - 2,96
Weight - 2.98
weight - 3000
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.7 kg
Weight & dimensions - Width - 150 mm
