ARTIKEL1 - SH570R8 S1200 H570 300W
ARTIKEL2 - GLN HDMI DISPLAY-PORT PCIE M.2
Audio - Built-in speaker(s) - No
Brand - Shuttle
BrandPartCode - SH570R8
Breite - 0
Category - PC/Workstation Barebones
Category_1 - Computers and Laptops
Category_2 - Computers - Computers All in One
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - 13L sized PC
Design - Cooling type - Active
Design - Housing material - Aluminium
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - PC barebone
EAN - 887993003504
EANCode - 0887993003504
EAN_code - 0887993005423
Gewicht - 4.94
Graphics - Graphics card family - Intel
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card model - Intel® UHD Graphics
Gross Weight Kg - 4,77
GRUPPE1 - Computer Systems
GRUPPE2 - PC Barebone
GTIN - 0887993003504
GTIN - 887993003504
GTIN - 0887993005423
GTIN - 887993005423
HERSTELLER - SHUTTLE
Hoehe - 0
HSTNUMMER - SH570R8
Laenge - 0
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84713000

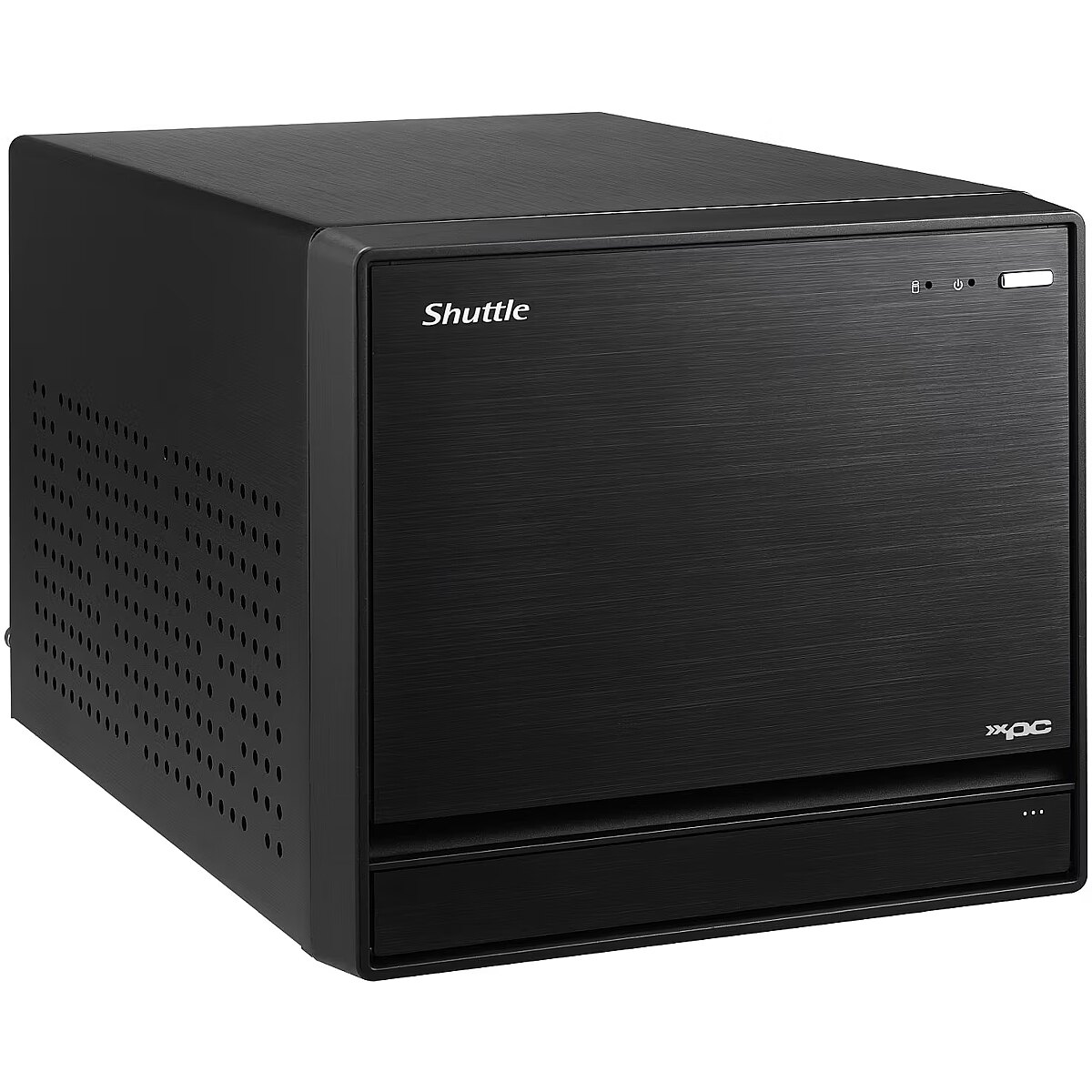

LongDesc - The Shuttle XPC cube Barebone SH570R8 is able to accommodate up to four 3.5 inch hard drives for enormous storage capacity - ideal for both home and commercial applications. However, this barebones platform is way more than just about storage - the SH570R8 has enough grunt under its aluminium bonnet to be a high-end gaming PC or a workstation for intensive graphics or even video applications. Its black-brushed aluminium case shows how discreet and stylish a powerful PC can look.
LongProductName - 4x DIMM, 128 GB, 3200,2666,2933 MHz, DDR4-SDRAM 1.2V, HDD & SSD, Black
LongSummaryDescription - Shuttle XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays. Chassis type: 13L sized PC, Product type: PC barebone. Processor socket: LGA 1200 (Socket H5), BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 4, Maximum internal memory: 128 GB. Supported storage drive types: HDD & SSD, Storage drive interface: PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Bluetooth version: 4.2. Cooling type: Active. Power supply: 500 W
Manufacturer - Shuttle
Manufacturer Code - SH570R8
Manufacturer Name - Shuttle
Manufacturer_code - SH570R8
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2666,2933,3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Name - Shuttle XPC cube SH570R8, Barebone (black, without operating system)
Network - Bluetooth - Yes
Network - Bluetooth version - 4.2
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Packaging content - Power cord included - Yes
Packaging content - Quick start guide - Yes
Performance - Audio chip - Realtek ALC897
Performance - BIOS memory size - 16 Mbit
Performance - BIOS type - AMI
Performance - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Performance - Linux operating systems supported - Yes
Performance - Motherboard form factor - ATX
Performance - Operating system installed - No
Performance - Processor socket - LGA 1200 (Socket H5)
Performance - Windows operating systems supported - Windows 10
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 4
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power supply - 500 W
Power - Power supply type - Internal power supply unit
Processor - Built-in processor - No
Processor - Processor manufacturer - Intel
ProductName - XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays
Short description - Shuttle Barebone SH570R8 Black S1200
ShortSummaryDescription - Shuttle XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays, 13L sized PC, PC barebone, LGA 1200 (Socket H5), DDR4-SDRAM, PCI Express, Serial ATA III, 500 W
Stck_Kart - 1
Stck_Pal - 0
Storage - SSD form factor - M.2
Storage - Storage drive interface - PCI Express, Serial ATA III
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Supported storage drive types - HDD & SSD
Storno - Y
Title - Shuttle XPC cube Barebone SH570R8 - S1200, Intel H570, 1x PCIe X16, 1x PCIe X4, 2x LAN,1x HDMI, 2x DP, 4x 3.5" HDD bays
URL - https://www.shuttle.eu/en/products/cube/sh570r8/spec
WarrantyInfo -
Weight - 4,90
Weight & dimensions - Depth - 332 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Package weight - 4.5 kg
Weight & dimensions - Weight - 3.5 kg
Weight & dimensions - Width - 215 mm
